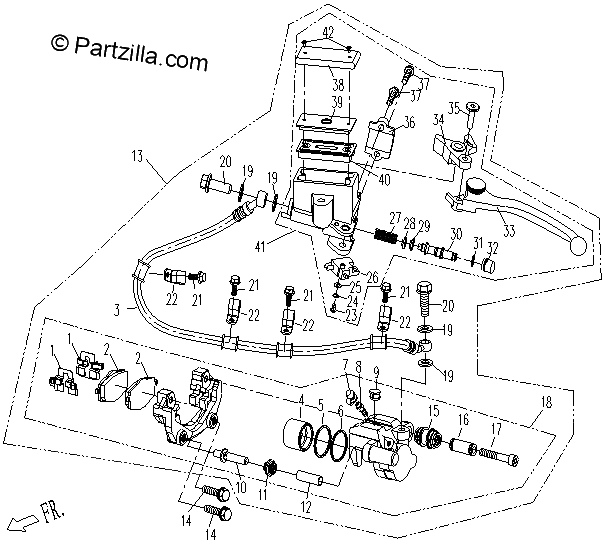

HYDRAULIC BRAKE REAR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CUSHION MAT
$3.44¢1 719
#2
BRAKE PAD
$26.44¢13 219
#3
REAR BRAKE HOSE COMP.
$45.99¢22 994
#4
PISTON
$5.74¢2 869
#5
RECTANGULAR SEAL
$2.29¢1 144
#6
RECTANGULAR SEAL
$1.14¢569
#7
COVER, BLEED BOLT
$1.14¢569
#8
BLEED BOLT
$2.29¢1 144
#9
DUST PLUG
$2.29¢1 144
#10
MAIN SLIDE SHAFT
$2.29¢1 144
#11
RUBBER COLLAR, MAIN SLIDE SHAFT
$1.14¢569
#12
COLLAR
$3.44¢1 719
#13
REAR HYDRAULIC BRAKE COMP.
$172.49¢86 244
#14
BOLT M8X35
$1.25¢627
#15
RUBBER COLLAR, SECONDARY SLIDING SHAFT
$1.14¢569
#16
SECONDARY SLIDING SHAFT
$2.29¢1 144
#17
BOLT, M8X50 (ARMY GREEN)
$2.29¢1 144
#18
LOWER PUMP, REAR BRAKE
$103.49¢51 744
#19
SEAL WASHER
$2.29¢1 144
#20
OIL FILLING BOLT
$2.29¢1 144
#21
BOLT M6X12
$0.69¢345
#22
CLASP
$2.29¢1 144
#23
SCREW, M4X10 (ARMY GREEN)
$1.14¢569
#24
WASHER 4
$1.14¢569
#25
WASHER 4
No Disponible
#26
BRAKE LIGHT SWITCH
$2.29¢1 144
#27
RETURN SPRING
$4.59¢2 294
#28
REAR RUBBER CUP
$4.59¢2 294
#29
FRONT RUBBER CUP
$4.59¢2 294
#30
BRAKE PUMP PISTON
$17.24¢8 619
#31
RETAINER 20
$2.29¢1 144
#32
DUST SEAL, PISTON
$4.59¢2 294
#33
LEVER
$40.24¢20 119
#34
LEVER FORK
$8.04¢4 019
#35
LEVER BOLT
$2.29¢1 144
#36
SEMI COVER
$3.44¢1 719
#37
BOLT, M6X30 (ARMY GREEN)
$1.14¢569
#38
COVER, OIL CUP
$3.44¢1 719
#39
PAD, OIL CUP
$1.14¢569
#40
GASKET, OIL CUP
$2.29¢1 144
#41
REAR BRAKE PUMP COMP.
$160.99¢80 494
#42
SCREW, M4X12 (ARMY GREEN)
$1.14¢569
