FOOT REST PEDAL BRAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

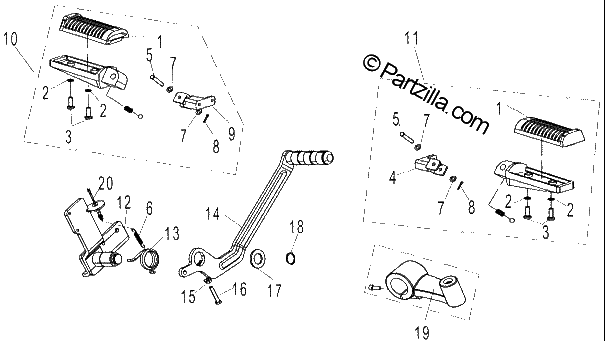

Diagrama de FOOT REST PEDAL BRAKE

Repuestos

#1
6090-033310
RUBBER, MAIN FOOTREST (SPS)
$8.04¢4 019
1
#2
30303-050042
SPRING WASHER (SPS)
$2.29¢1 144
1
#3
30105-050016410
SCREW M5X16
$1.25¢627
1
#4
8030-034103
MOUNTING BRACKET,FOOTREST DECK(Left Hand)
$9.19¢4 594
1
#5
30904-0804520
PIN
$1.14¢569
1
#6
8030-080301
SPRING, BRAKE SWITCH
$3.44¢1 719
1
#7
30306-080112
WASHER
$1.25¢627
1
#8
30903-0252010
RETAINER PIN
$1.25¢627
1
#9
8030-034203
BRACKET COMP.,FOOTREST DECK(Right Hand)
$9.19¢4 594
1
#10
6090-033300-1000
FRONT STEP COMP Left Hand
$34.49¢17 244
1
#11
6090-033500-1000
FRONT STEP COMP Right Hand
$34.49¢17 244
1
#12
8030-080320
HOLDER, REAR BRAKE
$45.99¢22 994
1
#13
8030-080302
RETURN SPRING, PEDAL BRAKE
$6.89¢3 444
1
#14
8030-080310
PEDAL BRAKE COMP.
$91.99¢45 994
1
#15
30204-060810
NUT M6
$1.25¢627
1
#16
30006-060040840
BOLT, M6X40 (ARMY GREEN)
$1.14¢569
1
#17
30306-200142
PLAIN WASHER
No Disponible
1
#18
30801-02005
RETAINER 20
$2.29¢1 144
1
#19
8050-080301-1000
MOUNT SEAT, REAR VIEW MIRROR (PEDAL BRAKE)
$34.49¢17 244
1
#20
9010-150500
SWITCH, REAR BRAKE
$16.09¢8 044
1
