RIGHT CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

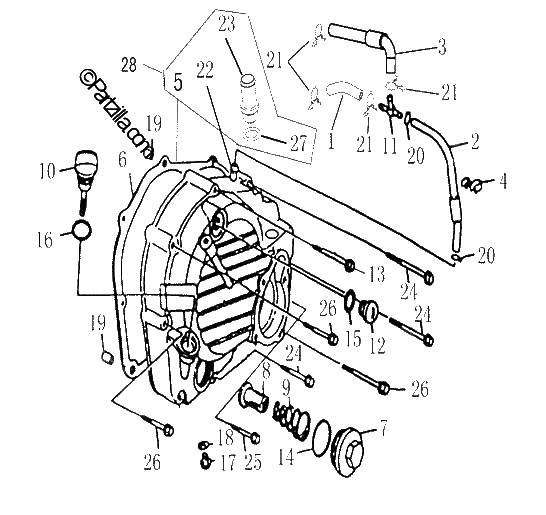

Diagrama de RIGHT CRANKCASE

Repuestos

#1
0120-013013
HOSE, CYLINDER HEAD COVER
$3.44¢1 719
1
#2
0110-013100
HOSE COMP., RIGHT SIDE COVER
$4.59¢2 294
1
#3
0110-0130C0
SLEEVE, HOSE, AIR CLEANER
$5.74¢2 869
1
#4
0110-013016
HOSE CLIP
$1.14¢569
1
#5
0110-013002-1080
RIGHT SIDE COVER
$126.49¢63 244
1
#6
0110-013012-1B00
GASKET, RIGHT SIDE COVER (BLACK?NO ASBESTOS)
$12.64¢6 319
1
#7
0110-013007-0080
COVER, STRAINER
$11.49¢5 744
1
#8
0010-013100
OIL FILTER
$6.89¢3 444
1
#9
0110-013006-0050
SPRING
$1.14¢569
1
#10
0110-013001
DIPSTICK, ENGINE OIL
$3.44¢1 719
1
#11
0110-013019
T JOINT, EXHAUST
$4.59¢2 294
1
#12
0010-021008-0030
PLUG, INSPECTION
$6.89¢3 444
1
#13
0110-013031-0030
BOLT M6x80
$1.14¢569
1
#14
0110-013028
O RING 30X3.55
$1.25¢627
1
#15
0010-021009
SEAL RING, PLUG
$1.14¢569
1
#16
0110-013030
O RING 18X3.55
$1.25¢627
1
#17
0110-013005-00001
DRAIN BOLT, M12x1.5
$2.29¢1 144
1
#18
0010-021014
WASHER M12
$1.25¢627
1
#19
0010-080008
DOWEL PIN 8X14
$1.25¢627
1
#20
30601-110010
CLAMP D10
$1.25¢627
1
#21
30601-112010
CLAMP D12
$1.25¢627
1
#22
0110-013010-0010
JOINT, BREATHER
$3.44¢1 719
1
#23
0110-013009-0010
JOINT, WATER OUTLET
$6.89¢3 444
1
#24
0010-013009-0030
BOLT M6x40
No Disponible
1
#25
0010-070003-00001
BOLT, M6X28
$1.25¢627
1
#26
0020-011018-0030
BOLT M6x70
No Disponible
1
#27
0010-011008
O RING, 15.8X2.4
$1.25¢627
1
#28
0110-0130A0
RIGHT SIDE COVER COMP. (INCLUDING 5,22,23 and 27)
$103.49¢51 744
1
