ELECTRIC SYSTEMS 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

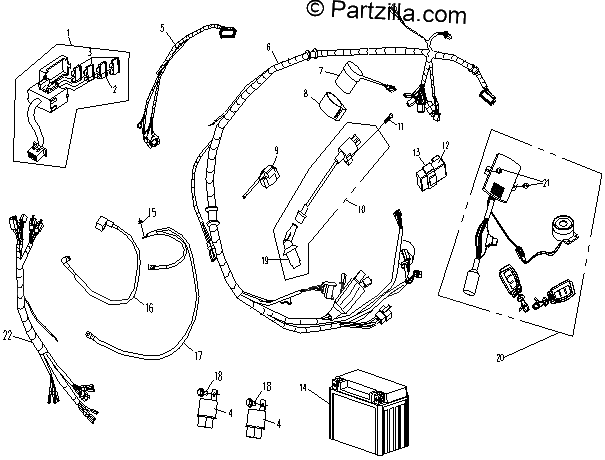

Diagrama de ELECTRIC SYSTEMS 2

Repuestos

#1
30105-050012410
SCREW M5X12
$1.36¢681
1
#1
8030-151300
FUSE BOX COMP.
$16.24¢8 119
1
#2
8030-040023
WATER PROOF RUBBER, TAPE RECORDER
$9.99¢4 994
1
#2
8010-151301
FUSE(5A)
$1.24¢619
1
#3
30006-080025810
BOLT M8X25
$1.36¢681
1
#3
9010-150601
FUSE 10A
$3.74¢1 869
1
#4
8030-151400
SHUNT RELAY
$13.74¢6 869
1
#4
8030-010000
LOCK Assembly.
$99.99¢49 994
1
#5
8030-010120
BUTT PLATE LOCK CABLE ,TAPE RECORDER
$7.49¢3 744
1
#5
8030-150200
SUBSIDIARY CABLE
$12.49¢6 244
1
#6
8030-150100-A000
MAIN CABLE (FOR USA) (USA)
$62.49¢31 244
1
#6
8030-150100
MAIN CABLE (NORMAL) (STANDARD)
$62.49¢31 244
1
#6
8030-151200
SPEAKER
$37.49¢18 744
1
#7
5020-150900
FLASHER
$12.49¢6 244
1
#7
8010-160002
KILL SWITCH
$21.24¢10 619
1
#8
1090-150501
PROTECTOR,ROLL OVER SENSOR
$1.24¢619
1
#8
8010-090005
BOLT M6X16
$1.36¢681
1
#9
8030-150410
STARTER RELAY
$49.99¢24 994
1
#9
8030-150900-C000
SOUND CASE (4B163 STANDARD)
$374.99¢187 494
1
#9
8030-150900-E000
SOUND CASE (4B163 J FOR JAPAN)
$374.99¢187 494
1
#9
8030-150900-D000
SOUND CASE (4B163 A FOR USA)
$374.99¢187 494
1
#10
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#10
8030-150420
IGNITION COIL
$24.99¢12 494
1
#11
30105-050020440
SCREW M5x20
$1.36¢681
1
#11
8030-150800
CABLE, SPEAKER
$7.49¢3 744
1
#12
8010-160003
PARKING SWITCH
$9.99¢4 994
1
#12
0110-150100
CDI IGNITER
$74.99¢37 494
1
#13
0110-150101
CDI RUBBER CASE
$6.24¢3 119
1
#13
8030-150300
CLOCK ADJUSTING BUTTON
$17.49¢8 744
1
#14
8010-000004
BOLT M6X14
$1.36¢681
1
#14
31021001
BATTERY
$187.49¢93 744
1
#15
30204-060810
NUT M6
$1.36¢681
1
#15
8010-150700
CONNECTION BOARD COMP.
$8.74¢4 369
1
#16
30112-060016410
SCREW (ARMY GREEN)
$2.49¢1 244
1
#16
8030-150700
TERMINAL CABLE COMP.,STARTER RELAY
$18.74¢9 369
1
#17
8030-150600
NEGATIVE CABLE COMP.
$24.99¢12 494
1
#17
8030-151000
RADIO ANTENNA, TAPE RECORDER
$74.99¢37 494
1
#18
30006-060012870
BOLT M6X12
$0.75¢375
1
#18
30110-290060040
TAPPING SCREW,ST2.9x6
$1.24¢619
1
#19
5020-150700
ELECTRIC HORN
$24.99¢12 494
1
#19
8030-150421
HIGH TENSION CAP
$9.99¢4 994
1
#20
5070-151500
ANTI THEFT ALARM
$162.49¢81 244
1
#20
30006-080014810
BOLT M8X14
$1.36¢681
1
#21
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#21
8010-150003
TIE BAND 5X250
$1.36¢681
1
#22
8030-151500
AUXILIARY CABLE, POLICE VERSION (WIRELESS)
$12.49¢6 244
1
#22
8030-151500-1000
AUXILIARY CABLE, POLICE VERSION (WIRE)
$37.49¢18 744
1
#22
30006-060025810
BOLT M6X25
$3.74¢1 869
1
#23
0110-150200
RECTIFIER Z
$74.99¢37 494
1
#24
8030-150510
BRACKET COMP.,REGULATOR
$11.24¢5 619
1
#25
30006-060012870
BOLT M6X12
$0.75¢375
1
#26
8030-190007
LOCK LOGO
$1.24¢619
1
#27
8030-151100-1000
SOUND CONTROL PANEL COMP.
$149.99¢74 994
1
