COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

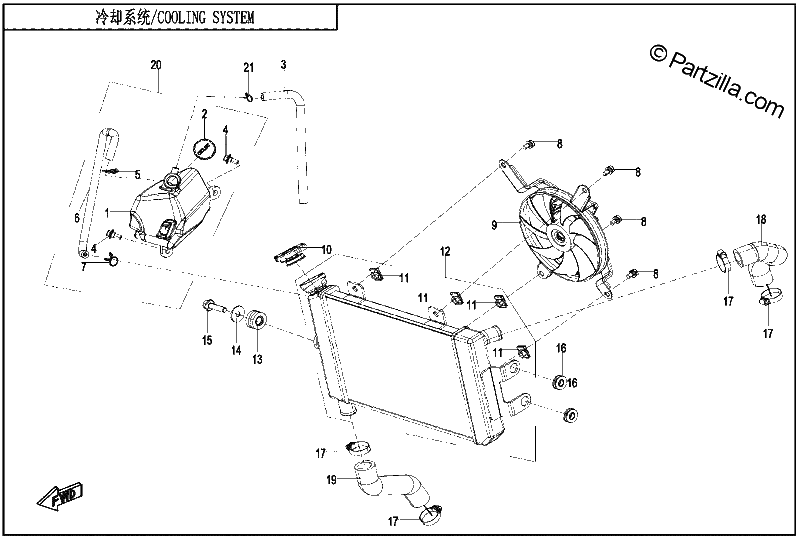

Diagrama de COOLING SYSTEM

Repuestos

#1
6NT1-180310
RESERVOIR WATER TANK
$37.49¢18 744
1
#2
6KJ0-180302
CAP, RESERVOIR TANK
$2.49¢1 244
1
#3
6090-360003
VACUUM PIPE, CANISTER
$6.24¢3 119
1
#4
8010-000004
BOLT M6X14
$1.36¢681
1
#5
30601-212530
CLAMP D12
$1.36¢681
1
#6
6NQ-180001-6000
CONNECTING PIPE, RESERVOIR TANK
No Disponible
1
#7
30601-210530
CLAMP D10.5
$1.36¢681
1
#8
30112-060012410
SCREW COMP M6X12
$3.74¢1 869
1
#9
A000-180200
FAN & MOTOR ASSEMBLY
$224.99¢112 494
1
#10
A000-180400
CAP, WATER FILLER
$12.49¢6 244
1
#11
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#12
A010-180100
RADIATOR
$412.49¢206 244
1
#13
A000-180005
DAMPER, RADIATOR
$4.99¢2 494
1
#14
A000-180010-1000
COLLAR, RADIATOR
No Disponible
1
#15
30006-080030810
BOLT M8X30
$1.36¢681
1
#16
A000-180004
DAMPER, RADIATOR
$3.74¢1 869
1
#17
A000-180006
CLAMP D30
$8.74¢4 369
1
#18
A000-180001-1000
WATER INLET HOSE, RADIATOR
No Disponible
1
#19
A000-180001-20000
WATER INLET PIPE, RADIATOR
$43.74¢21 869
1
#20
6NQ-1803A0-6000
RESERVOIR TANK ASSEMBLY
No Disponible
1
#21
30601-207050
CLAMP D6.5
$1.24¢619
1
