ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

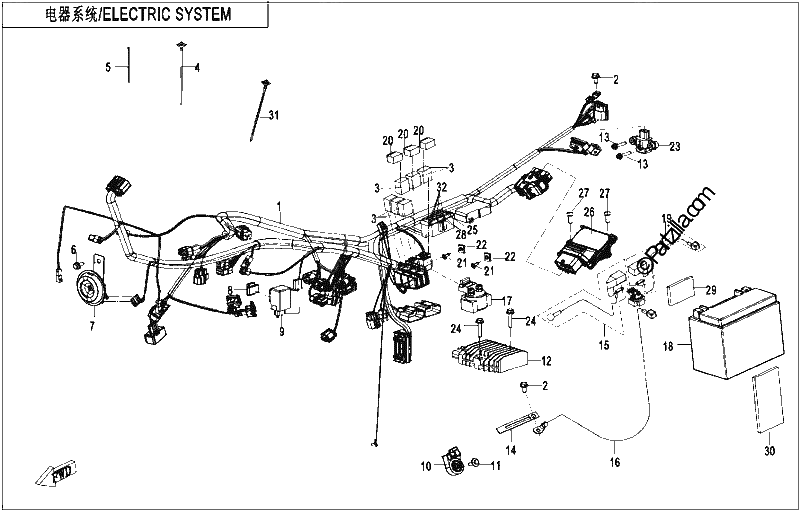

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6NQ-150100-6003
MAIN CABLE
No Disponible
1
#2
30006-060012870
BOLT M6X12
$0.69¢345
1
#3
A000-150800
AUXILIARY RELAY
$12.64¢6 319
1
#4
801F-100101
TIE BAND
$1.25¢627
1
#5
8010-150003
TIE BAND 5X250
$1.25¢627
1
#6
30006-080014810
BOLT M8X14
$1.25¢627
1
#7
6NT1-150600
HORN
$11.49¢5 744
1
#8
8010-150002
CUSHION FLASHER
$2.29¢1 144
1
#9
6KM0-150340
FLASHER
No Disponible
1
#10
6KMV-151200-8501
SIDE STAND SWITCH
$22.99¢11 494
1
#11
6NQ-000204-6001
BOLT, M6X20
$1.25¢627
1
#12
01AA-177000
REGULATOR
$160.99¢80 494
1
#13
30006-060030810
BOLT M6X30
$1.25¢627
1
#14
0180-014010
WIRE CLAMP
No Disponible
1
#15
A000-150200
POSITIVE CABLE, STARTING MOTO
No Disponible
1
#16
A000-150300
NEGATIVE CABLE, STARTING MOTO
$22.99¢11 494
1
#17
9010-150310-10001
STARTER RELAY
$45.99¢22 994
1
#18
31021200
BATTERY DYNAVOLT MG12 BS C
$103.49¢51 744
1
#19
A000-150700
POSITIVE CABLE, STARTER RELAY
$22.99¢11 494
1
#20
A000-150801
RUBBER, AUXILIARY RELAY
$2.29¢1 144
1
#21
30118-420095010
SELF TAPPING SCREW ST4.2X9.5
$1.25¢627
1
#22
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#23
6KJ0-150600
SENSOR, ROLL OVER
$34.49¢17 244
1
#24
0A70-014004-00001
BOLT M5X25
$1.25¢627
1
#25
806A-151301
FUSE (7.5A)
$1.25¢627
1
#26
0MQA-174000
ECU
No Disponible
1
#27
30102-060016810
SCREW M6X16
$1.25¢627
1
#28
806A-151302
FUSE 10A
$3.44¢1 719
1
#29
5270-150001
FOAM (LEFT HAND & RIGHT HAND), BATTERY
$1.14¢569
1
#30
5270-150002
FOAM (FRONT & REAR), BATTERY
$1.25¢627
1
#31
7030-150005
TIE BAND
$3.44¢1 719
1
#32
806A-151305
FUSE (15A)
$2.29¢1 144
1
