PLASTICS3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

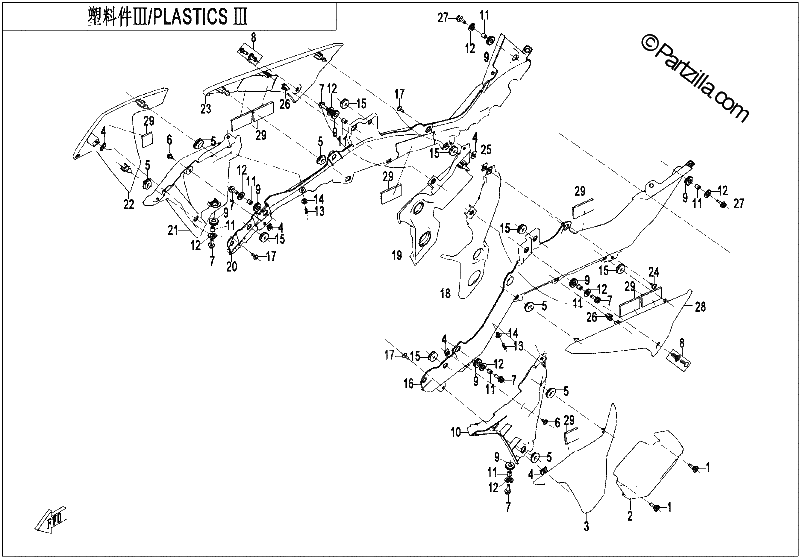

Diagrama de PLASTICS3

Repuestos

#1
6KM0-060002
MOUNTING SCREW, CHAIN GUARD
No Disponible
1
#2
6KM0-043701
DECO COVER, CANISTER
$12.49¢6 244
1
#3
6KM0-041202-0H300
LEFT HAND OUTER PANEL, RESERVOIR TANK, SILVER/BLACK
No Disponible
1
#3
6KM0-041202-0EQ00
LEFT HAND OUTER PANEL, RESERVOIR TANK, TURQUOISE BLUE
No Disponible
1
#3
6KM0-041202-0BM00
LEFT HAND OUTER PANEL, RESERVOIR TANK, NEBULA BLACK
No Disponible
1
#4
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#5
8080-040064
DAMPER, FRONT FENDER
$1.36¢681
1
#6
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#7
30006-060020810
BOLT M6X20
No Disponible
1
#8
9060-040310
PLASTIC CLIPS
$1.36¢681
1
#9
5BY0-040010
RUBBER SLEEVE
$2.49¢1 244
1
#10
6KM0-041201
LEFT HAND INNER PANEL, RESERVOIR TANK
No Disponible
1
#11
6090-040303
BUSHING
$1.36¢681
1
#12
0700-022016
WASHER 10.5X19X2.3
$1.36¢681
1
#13
8080-041130
PLASTIC SCREW
$1.36¢681
1
#14
8080-041130
PLASTIC SCREW
$1.36¢681
1
#15
A000-040302
RUBBER DAMPER
$3.74¢1 869
1
#17
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#18
6KMV-043001-6000
LEFT HAND PANEL, FRAME
$11.24¢5 619
1
#19
6KMV-043101-6000
RIGHT HAND PANEL, FRAME
$11.24¢5 619
1
#20
6KM0-041701-2H300
RIGHT HAND PANEL SILVER BLACK
No Disponible
1
#20
6KM0-041701-2H700
RIGHT HAND PANEL SILVER GREY
No Disponible
1
#20
6KM0-041701-2EQ00
RIGHT HAND PANEL TURQUOISE BLUE+NEBULA BLACK
No Disponible
1
#21
6KM0-041301
RIGHT HAND INNER PANEL, RESERVOIR TANK
No Disponible
1
#22
6KM0-041302-0BM00
RESERVOIR RIGHT HAND OUTER PANEL NEBULA BLACK
No Disponible
1
#22
6KM0-041302-0EQ00
RESERVOIR RIGHT HAND OUTER PANEL TURQUOISE BLUE+NEBULA BLA
No Disponible
1
#22
6KM0-041302-0H300
RESERVOIR RIGHT HAND OUTER PANEL SILVER BLACK
No Disponible
1
#23
6KM0-042001
LOWER RIGHT HAND DECO STRIP
No Disponible
1
#23
6KMV-042001-6000
LOWER RIGHT HAND DECO STRAP
$12.49¢6 244
1
#24
30118-420095010
SELF TAPPING SCREW ST4.2X9.5
$1.36¢681
1
#25
8010-000002
CLAMP ST4.2
$2.49¢1 244
1
#26
8080-000001
CLASP
$1.36¢681
1
#27
30006-060016810
BOLT M6X16
$1.36¢681
1
#28
6KM0-041901
LOWER LEFT HAND DECO STRIP
No Disponible
1
#28
6KMV-041901-6000
LOWER LEFT HAND DECO STRAP
$12.49¢6 244
1
#29
9010-120008
SPONGE DAMPER, FUEL TANK
$3.74¢1 869
1
