FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

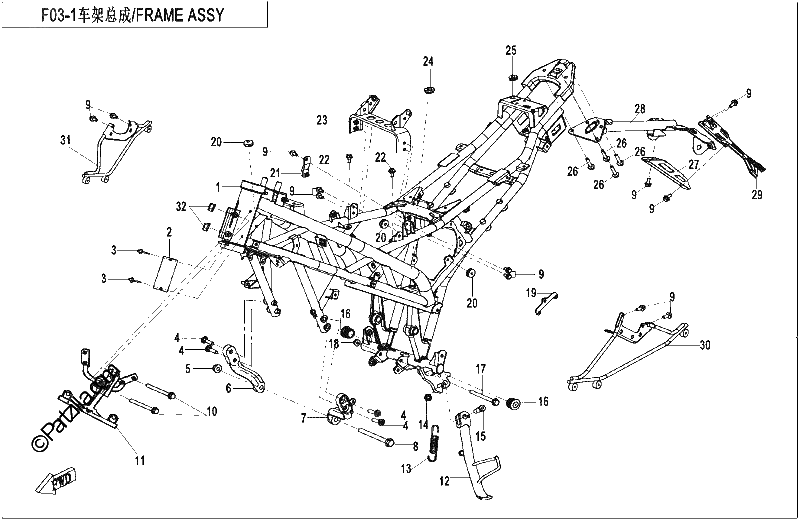

Diagrama de FRAME

Repuestos

#2
6KN-190012-8000
VIN PLATE
No Disponible
1
#3
30902-0401320
BLIND RIVET
$1.25¢627
1
#4
6KM0-140107
BOLT M8
$2.29¢1 144
1
#5
30204-102810
NUT M10X1.25
$1.25¢627
1
#6
6KM0-030006-0B200
ENGINE RIGHT HAND BRACKET MATTE BLACK
No Disponible
1
#7
6KM0-030005-0B201
LEFT HAND MOUNTING BRACKET, ENGINE, MATTE BLACK
No Disponible
1
#8
30006-102110110
BOLT M10X1.25X110
$3.44¢1 719
1
#9
30006-060012870
BOLT M6X12
$0.69¢345
1
#10
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#12
6KM0-030310-0B200
SIDE BRACKET ASSEMBLY MATTE BLACK
$19.54¢9 769
1
#13
6090-030006
SPRING
$3.44¢1 719
1
#14
30208-102010
NUT M10X1.25
$1.25¢627
1
#15
A000-030006
BOLT, SIDE STAND
$3.44¢1 719
1
#16
6KJ0-030503
RUBBER PLUG
$2.29¢1 144
1
#17
30006-080090810
BOLT M8X90
$2.29¢1 144
1
#18
30204-080810
NUT M8
$1.25¢627
1
#19
6KM0-030030-0B200
BRACKET, CANISTER MATTE BLACK
$19.54¢9 769
1
#20
A000-040302
RUBBER DAMPER
$3.44¢1 719
1
#21
6KM0-030050-0B200
ABS BRACKET MATTE BLACK
$5.74¢2 869
1
#22
8010-000004
BOLT M6X14
$1.25¢627
1
#23
6KM0-030100-2B200
REAR MOUNTING ASSEMBLY,FUEL TANK, MATTE BLACK
$34.49¢17 244
1
#24
8080-040064
DAMPER, FRONT FENDER
$1.25¢627
1
#25
5BY0-040010
RUBBER SLEEVE
$2.29¢1 144
1
#26
30006-080045810
BOLT M8X45
$2.29¢1 144
1
#28
6NT1-030100-0BB00
BRACKET, REAR FENDER PLASTIC POWDER
$45.99¢22 994
1
#29
6KJ0-030601-0BB0
SUPPORT PLATE, REAR LICENCE PLASTIC POWDER
$28.74¢14 369
1
#32
30206-080510
NUT M8
$1.25¢627
1
