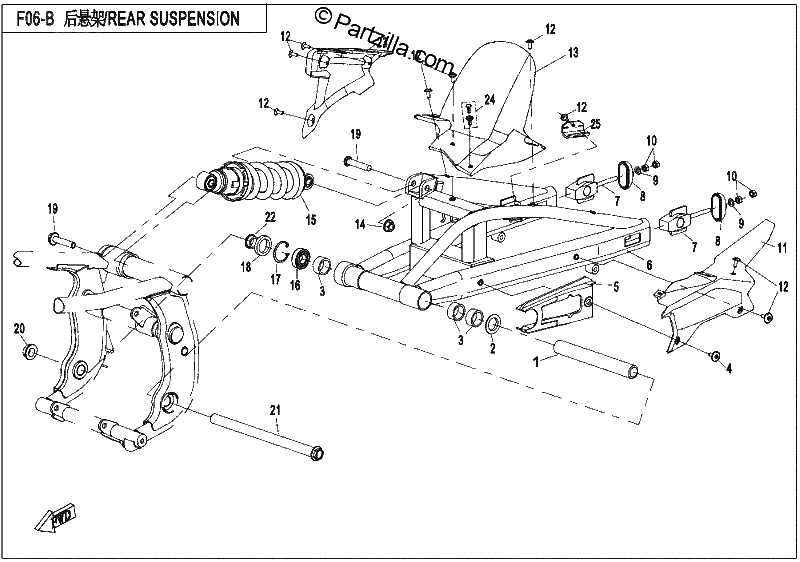

REAR SUSPENSION LOW CONFIGURATION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SLEEVE, REAR SWING ARM
$45.99¢22 994
#2
ANTI DUST RING
$3.44¢1 719
#3
NEEDLE BEARING HK28X35X16
$11.49¢5 744
#4
SCREW, CHAIN GUARD
$6.89¢3 444
#5
CHAIN GUARD
$11.49¢5 744
#6
REAR FORK ASSEMBLY PLASTIC POWDER
No Disponible
#7
ADJUSTER, CHAIN
$28.74¢14 369
#8
CAP, CHAIN ADJUSTER PLASTIC POWDER
No Disponible
#9
WASHER
$1.25¢627
#10
NUT M8
$2.29¢1 144
#11
LEFT HAND PANEL, REAR FORK
$45.99¢22 994
#12
INNER HEX SCREW M6X16
$2.29¢1 144
#13
UPPER PLATE, REAR SWING ARM
No Disponible
#14
NUT M12X1.25
$1.25¢627
#15
REAR SHOCK ABSORBER, MATTE BLACK
$482.99¢241 494
#15
REAR SHOCK ABSORBER WHITE
No Disponible
#16
BEARING 6004 2RZ
$11.49¢5 744
#17
CIRCLIP 42
$2.29¢1 144
#18
OIL SEAL FB30X42X7
$3.44¢1 719
#19
HEX FLANGE BOLT
$4.59¢2 294
#20
NUT, M20X1.5
$3.44¢1 719
#21
SHAFT, REAR FORK
$40.24¢20 119
#22
RIGHT HAND BUSHING, REAR SWING ARM
$14.94¢7 469
#23
RIGHT HAND PANEL, REAR FORK
No Disponible
#24
PLASTIC CLIPS
$1.25¢627
#25
PROTECTING MAT, REAR SWING ARM
$9.19¢4 594
