FRONT SUSPENSION SHOCK ABSORBER KYB

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

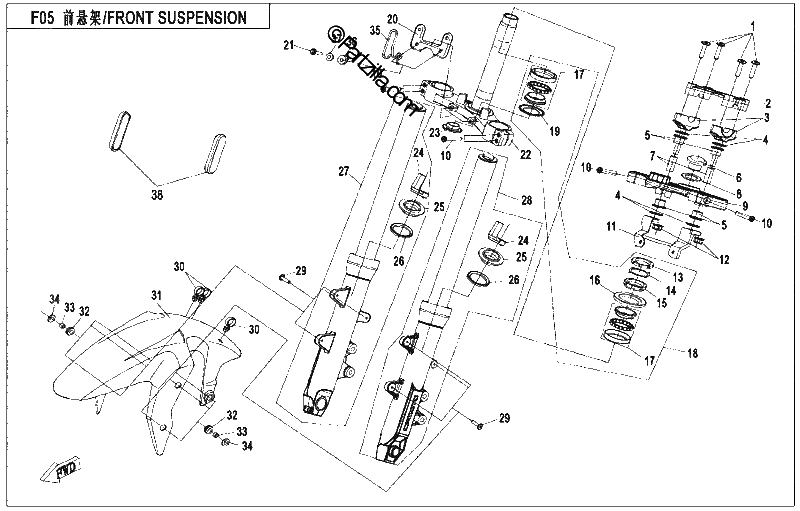

Diagrama de FRONT SUSPENSION SHOCK ABSORBER KYB

Repuestos

#1
30102-080040810
SCREW, M8X40
$1.25¢627
1
#2
6NQ0-050002-1B200
HANDLEBAR COVER MATTE BLACK
No Disponible
1
#3
6NQ0-050090-1B200
HANDLEBAR SUPPORT MATTE BLACK
No Disponible
1
#4
6KJ0-050005
WASHER
$1.25¢627
1
#5
6KJ0-050004
DAMPER RUBBER,UPPER HOLDER
$1.25¢627
1
#6
6NTA-050003
LOCK SCREW, UPPER TRIPLE CLAMP
$13.79¢6 894
1
#7
6KJ0-050006
LINER, UPPER TRIPLE CLAMP
$1.14¢569
1
#8
A000-050004
WASHER
$1.25¢627
1
#9
6NQ0-050001-0B200
UPPER CONNECTING PLATE MATTE BLACK
No Disponible
1
#10
A000-050018
INNER HEX SCREW, M8X35
$2.29¢1 144
1
#11
6NQ0-050200
UPPER BRACKET ASSEMBLY, HEADLIGHT
$8.04¢4 019
1
#12
30204-102810
NUT M10X1.25
$1.25¢627
1
#13
A000-050006
LOCK NUT
$5.74¢2 869
1
#14
A000-050008
WASHER
$1.25¢627
1
#15
A000-050007
LOCK NUT
$5.74¢2 869
1
#16
A000-050009
DUST SEAL, UPPER
$1.25¢627
1
#17
A000-050100-10000
STEERING BEARING ASSEMBLY
$34.49¢17 244
1
#18
A000-0501A0
STEERING BEARING ASSEMBLY
$80.49¢40 244
1
#19
A000-050400
ANTI DUST CAP, LOWER RETAINING RING
$3.44¢1 719
1
#20
6NQ0-050100-10000
LOWER BRACKET ASSEMBLY, HEADLIGHT
$6.89¢3 444
1
#21
30006-060016810
BOLT M6X16
$1.25¢627
1
#22
A000-050300
LOWER HOLDER FRONT FORK
$108.09¢54 044
1
#23
A000-050011
RUBBER PLUG 2
$2.29¢1 144
1
#24
A000-050501
GUARD
No Disponible
1
#25
A000-050510
DUST SEAL
No Disponible
1
#26
A000-050520
OIL SEAL, FRONT SHOCK ABSORBER
No Disponible
1
#27
A000-050600-1B200
FRONT SHOCK ABSORBER,RIGHT HAND MATTE BLACK
$689.99¢344 994
1
#28
A000-050500-1B200
FRONT SHOCK ABSORBER,LEFT HAND MATT BLACK
$689.99¢344 994
1
#29
A000-040703
INNER HEX SCREW
$2.29¢1 144
1
#30
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#31
A000-050012-1B600
FRONT FENDER TT EDITION CARBON
No Disponible
1
#31
A000-050012-1B800
FRONT FENDER MATTE PEARL BLACK
No Disponible
1
#31
A000-050012-1H300
FRONT FENDER SILVER BLACK
No Disponible
1
#31
A000-050012-0BH00
FRONT FENDER MATTE PEARL BLACK+NEW PEARL WHITE
No Disponible
1
#31
A000-050012-0BF00
FRONT FENDER MATTE PEARL BLACK+SILVER WHITE
No Disponible
1
#32
A000-050013
RUBBER CUSHION
$1.25¢627
1
#33
A000-050014
BUSHING
$2.29¢1 144
1
#34
6NTG-050002
NYLON GASKET 8
$1.25¢627
1
#35
6NQ0-050003
CLIP, BRAKE HOSE
No Disponible
1
#36
5BY0-040010
RUBBER SLEEVE
$2.29¢1 144
1
#37
9010-160102
WASHER, HEADLIGHT
$1.25¢627
1
#38
6KJV-160920-8001-M1
FRONT SIDE REFLECTOR
$4.59¢2 294
1
