TRANSMISSION SYSTEM KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

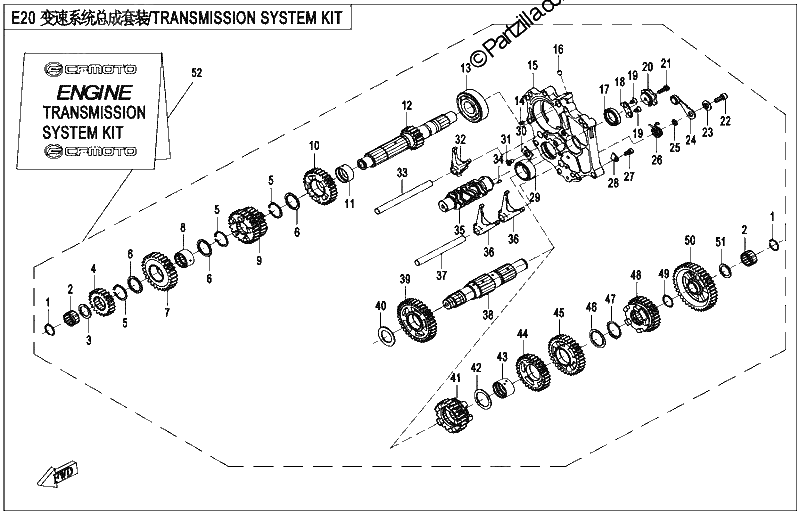

Diagrama de TRANSMISSION SYSTEM KIT

Repuestos

#1
0700-061016
CIRCLIP D20
$1.25¢627
1
#2
30499-02004
NEEDLE BEARING KMJ20X26X13.8X1S
$28.74¢14 369
1
#3
0180-061012
GASKET 20.5X30X1.5
$2.29¢1 144
1
#4
0700-061014-1000
DRIVE GEAR, 2ND SPEED
$45.99¢22 994
1
#5
0700-061009
CIRCLIPS FOR SHAFT28
$1.14¢569
1
#6
0700-061008
WASHER
$1.14¢569
1
#7
0700-061013-1000
DRIVE GEAR, 6TH SPEED
$80.49¢40 244
1
#8
0700-061012
BUSHING 28X14.7
$13.79¢6 894
1
#9
0700-061011-1000
DRIVE GEAR, 3RD&4TH SPEED
$149.49¢74 744
1
#10
0700-061007-1000
DRIVE GEAR, 5TH SPEED
$80.49¢40 244
1
#11
0700-061006
BUSHING 28X14
$12.64¢6 319
1
#12
0700-061001-1000
MAIN SHAFT
$149.49¢74 744
1
#13
0700-066002
BEARING 25X62X17
$76.97¢38 485
1
#14
0700-066006
OIL LIMIT PLUG
No Disponible
1
#15
0700-066001
GEAR CASE
No Disponible
1
#16
0700-066005
PLUG 6
$2.29¢1 144
1
#17
30400-02504
BEARING
$18.39¢9 194
1
#18
0700-066009
PLATE 3
$1.25¢627
1
#19
0700-066010
SCREW
No Disponible
1
#20
0700-063002
CAM, GEARSHIFT DRUM
$5.74¢2 869
1
#21
0010-023008-00001
BOLT
$1.25¢627
1
#22
30102-060016810
SCREW M6X16
$1.25¢627
1
#23
0700-064003
SLEEVE, SWING ARM, GEARSHIFT
$3.44¢1 719
1
#24
0700-064100
SWING ARM, GEARSHIFT
$14.94¢7 469
1
#25
0700-064001
WASHER 6.3X16.3X1.2
$1.25¢627
1
#26
0700-064002
SPRING, POSITION
$1.25¢627
1
#27
0010-090006-0050
SCREW M6X12
$1.14¢569
1
#28
0700-066008
PLATE 2
$1.14¢569
1
#29
0700-011107
SHAFT SLEEVE
$13.79¢6 894
1
#30
0700-066003
PLATE 1
$2.29¢1 144
1
#31
0180-014009-0010
SCREW, PRESS PLATE
No Disponible
1
#32
0700-060004-1000
FORK, MAIN SHAFT
$18.39¢9 194
1
#33
0700-060003
FORK SHAFT, MAIN SHAFT
$11.49¢5 744
1
#34
30406-00401
ROLLER NEEDLE P4X7.8
$1.25¢627
1
#35
0700-063001-1000
DRUM, GEARSHIFT
No Disponible
1
#36
0700-060002-1000
SHIFT FORK, COUNTERSHAFT
$20.69¢10 344
1
#37
0700-060001
SHIFT ROD, OUTPUT
$11.49¢5 744
1
#38
0700-062001-1000
COUNTERSHAFT
$149.49¢74 744
1
#39
0700-062200-1000
DRIVEN GEAR, 2ND SPEED
$91.99¢45 994
1
#40
0700-062012
WASHER 25X39X2
$2.29¢1 144
1
#41
0700-062011-1000
DRIVEN GEAR, 6TH SPEED
$91.99¢45 994
1
#42
0700-062009
WASHER 30X38.5X1.5
$2.29¢1 144
1
#43
0700-062007
BUSHING 29.65
$14.94¢7 469
1
#44
0700-062008-1000
DRIVEN GEAR, 4TH SPEED
$80.49¢40 244
1
#45
0700-062006-1000
DRIVEN GEAR, 3RD SPEED
$80.49¢40 244
1
#46
0700-062005
WASHER
$2.29¢1 144
1
#47
30801-03005
CIRCLIP 30 S=1.5
$1.14¢569
1
#48
0700-062004-1000
DRIVEN GEAR, 5TH SPEED
$114.99¢57 494
1
#49
0700-062003
WASHER 20.4X25X0.5
$2.29¢1 144
1
#50
0700-062100-1000
DRIVEN GEAR, 1ST SPEED
$103.49¢51 744
1
#51
0700-062002
WASHER 20.4X28X1.2
$2.29¢1 144
1
#52
0700-0600A0
SHIFTING SYSTEM ASSEMBLY
$1609.99¢804 994
1
