CYLINDER HEAD COVER ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

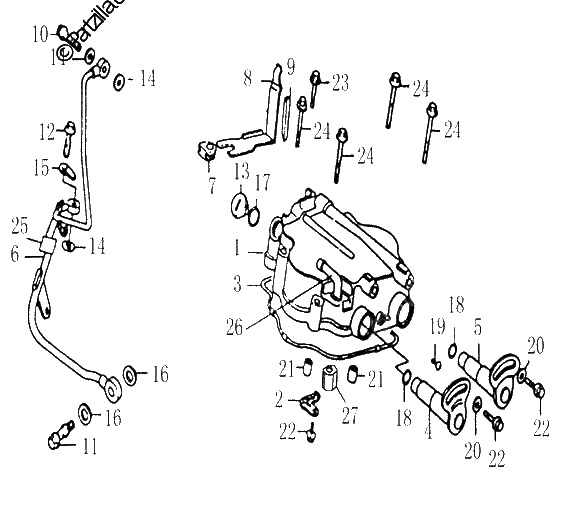

Diagrama de CYLINDER HEAD COVER ASSY

Repuestos

#1
0110-021001-0080
COVER, CYLINDER HEAD
$57.49¢28 744
1
#2
0110-021006-0010
RETAINING PLATE
$1.14¢569
1
#3
0010-021011
GASKET, CYLINDER HEAD COVER
$17.24¢8 619
1
#4
0110-021100
AXLE COMP., INTAKE ROCKER
$9.19¢4 594
1
#5
0110-021200
AXLE COMP., EXHAUST ROCKER
$9.19¢4 594
1
#6
0110-021410-0030
OUTER OIL PIPE COMP.
$34.49¢17 244
1
#7
0010-021001
RUBBER, OIL PIPE
$1.14¢569
1
#8
0110-021431-0010
HOLDER, OIL PIPE
$2.29¢1 144
1
#9
0010-021003
CUSHION BAR
$3.44¢1 719
1
#10
0010-021004-0010
BOLT
$3.44¢1 719
1
#11
0010-021015-0030
JOINT BOLT C, M12X1.25
$2.29¢1 144
1
#12
0010-021013-0030
JOINT BOLT C, M8X25
$2.29¢1 144
1
#13
0010-021008-0030
PLUG, INSPECTION
$6.89¢3 444
1
#14
0010-021016
WASHER M8
$1.25¢627
1
#15
0010-021012
WASHER
$3.44¢1 719
1
#16
0010-021014
WASHER M12
$1.25¢627
1
#17
0010-021009
SEAL RING, PLUG
$1.14¢569
1
#18
0010-021010
SEAL RING, ROCKER AXLE
$1.14¢569
1
#19
30105-050018430
SCREW
$1.14¢569
1
#20
0010-080011
WASHER 6
$1.25¢627
1
#21
0010-021005
DOWEL PIN f 10x14
$1.25¢627
1
#22
0010-021019-0010
BOLT M6X12
$2.29¢1 144
1
#23
0010-021017-0010
BOLT M6X25
$1.25¢627
1
#24
0010-013010-0010
BOLT M6X50
$1.25¢627
1
#25
0110-021404
CUSHION OVERSLEEVE
$1.14¢569
1
#26
0110-021002-0010
BREATHER
$3.44¢1 719
1
#27
0110-021500
FILTER ELEMENT COMP.
$2.29¢1 144
1
