COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

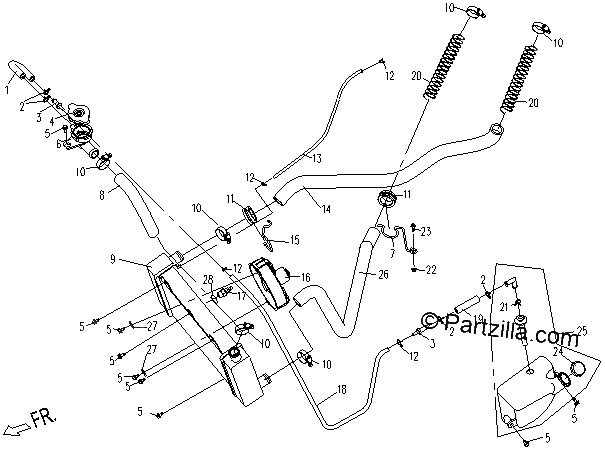

Diagrama de COOLING SYSTEM

Repuestos

#1
8030-180501
UPPER HOSE, RESERVOIR
$9.19¢4 594
1
#2
30601-112010
CLAMP D12
$1.25¢627
1
#3
8010-180018
JOINT,HEAT TRANSMIT PIPE
$1.25¢627
1
#4
8010-180024
CAP, WATER FILLER
$19.54¢9 769
1
#5
30006-060012870
BOLT M6X12
$0.69¢345
1
#6
8050-180008
WATER FILLING PORT
$6.89¢3 444
1
#7
8050-180007
CLAMP,WATER HOSE(Right Hand)
$1.14¢569
1
#8
8050-180003
HOSE, WATER FILLING PORT
$34.49¢17 244
1
#9
8050-180400
RADIATOR COMP.
$241.49¢120 744
1
#10
30603-029020
CLAMP
No Disponible
1
#11
8050-180005
RUBBER SLEEVE
$3.44¢1 719
1
#12
30601-107010
CIRCLIP 5.6, A TYPE
$1.25¢627
1
#13
8050-180004
SMALL CYCLE WATER HOSE
$11.49¢5 744
1
#14
8050-180001
WATER OUTLET HOSE, ENGINE
$34.49¢17 244
1
#15
8050-180006
CLAMP,WATER PIPE(Left Hand)
$1.14¢569
1
#16
8010-180100
COOLING FAN COMP.
$57.49¢28 744
1
#17
0010-135000
THERMOSWITCH (80?4?,Non waterproofed)
$34.49¢17 244
1
#18
8050-180501
CENTER WATER PIPE,RESERVOIR
$11.49¢5 744
1
#19
8050-180502
BOTTOM WATER PIPE, RESERVOIR
$2.29¢1 144
1
#20
0110-023009
JACKET, WATER HOSE
$3.44¢1 719
1
#21
30601-113010
CLAMP D13
$1.25¢627
1
#22
30204-060810
NUT M6
$1.25¢627
1
#23
30006-060016810
BOLT M6X16
$1.25¢627
1
#24
8010-180023
CAP,RESERVOIR TANK
$5.74¢2 869
1
#25
8050-180300
RESERVOIR TANK COMP.
$28.74¢14 369
1
#26
8050-180002
WATER INLET HOSE, ENGINE
$45.99¢22 994
1
#27
30305-060122
WASHER 6
$1.14¢569
1
#28
8010-180026
RUBBER WASHER16x23x2
$1.14¢569
1
