MUFFLER RACK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

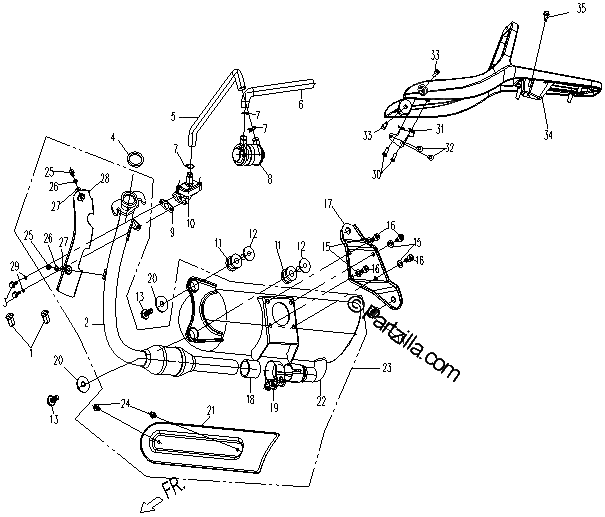

Diagrama de MUFFLER RACK

Repuestos

#1
8010-020001
NUT M8
$1.25¢627
1
#2
8030-020500-1000
EXHAUST PIPE COMP. (WITH CATALYZER)
$195.49¢97 744
1
#3
30006-060012870
BOLT M6X12
$0.69¢345
1
#4
8010-020003-A000
GASKET, EXHAUST PORT
$3.44¢1 719
1
#5
0030-140005
AIR INLET HOSE, CONTROL VALVE
$11.49¢5 744
1
#6
8010-020002
AIR INLET HOSE, SMALL AIR CLEANER
$5.74¢2 869
1
#7
30601-116010
CLAMP
$1.25¢627
1
#8
8030-020002
CHECK VALVE
$17.24¢8 619
1
#9
8030-020101
GASKET, CHECK VALVE
$5.74¢2 869
1
#10
8030-020120
AIR SUPPLY CHECK VALVE
$28.74¢14 369
1
#11
9010-020001
RUBBER CUSHION,MUFFLER
$5.74¢2 869
1
#12
8030-020300
BUSH,MUFFLER
$4.59¢2 294
1
#13
30006-102055840
BOLT M10x1.25x55
$2.29¢1 144
1
#14
30006-102025810
BOLT M10X1.25X25 (ARMY GREEN)
$2.29¢1 144
1
#15
30306-080112
WASHER
$1.25¢627
1
#16
30102-080016840
SCREW M8x16
$1.25¢627
1
#17
8030-020222
REAR SUSPENSION PLATE
$34.49¢17 244
1
#18
6060-020104
COLLAR
$18.39¢9 194
1
#19
6060-020141
CLAMP
$11.49¢5 744
1
#20
30305-100142
WASHER 10
$3.44¢1 719
1
#21
8030-020103
COVER, EXHAUST MUFFLER
$80.49¢40 244
1
#22
8030-020200-A000
EXHAUST MUFFLER
$321.99¢160 994
1
#23
8030-020100-3000
EXHAUST MUFFLER COMP.
$402.49¢201 244
1
#24
30105-060012410
SCREW M6X12
$1.25¢627
1
#25
30105-060010440
SCREW M6X10
$2.29¢1 144
1
#26
30302-060140
WASHER
$1.14¢569
1
#27
30306-060112
WASHER
No Disponible
1
#28
8030-020104
EXHAUST PIPE COVER
$19.54¢9 769
1
#29
30302-060140
WASHER
$1.14¢569
1
#30
30105-050012410
SCREW M5X12
$1.25¢627
1
#31
8050-140110
BRACKET, HELMET LOCK
$2.29¢1 144
1
#32
30107-060010410
SCREW M6X10
$1.14¢569
1
#33
30102-080020840
HEX SCREW M8x20
$1.14¢569
1
#34
8050-140001
REAR BRACKET
$149.73¢74 865
1
#35
30006-080025810
BOLT M8X25
$1.25¢627
1
