REAR BRAKE SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

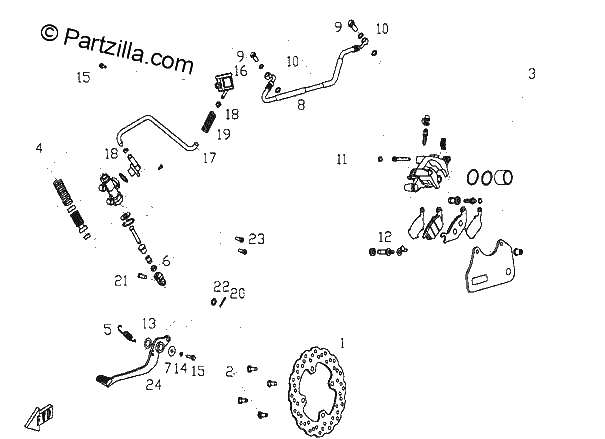

Diagrama de REAR BRAKE SYSTEM

Repuestos

#1
6100-080002
REAR BRAKE DISC
$45.99¢22 994
1
#2
A000-080001
SCREW
$1.25¢627
1
#3
6100-080200
REAR HYDRAULIC BRAKE
$172.49¢86 244
1
#4
6100-080210
MASTER CYLINDER, REAR BRAKE
$80.49¢40 244
1
#5
6100-080005
RETURN SPRING
$3.44¢1 719
1
#6
30200-080810
NUT M8
$2.29¢1 144
1
#7
A000-080006-10000
WASHER 1
$2.29¢1 144
1
#8
6100-080240
REAR BRAKE HOSE
$17.24¢8 619
1
#9
A000-080103
BANJO BOLT
No Disponible
1
#10
A000-080104
SEAL GASKET
No Disponible
1
#11
6100-080250
CALIPER, REAR BRAKE
$91.99¢45 994
1
#12
6100-0802A0
REAR BRAKE PAD ASSEMBLY
$17.24¢8 619
1
#13
A000-080007-10000
WASHER 2
$2.29¢1 144
1
#14
30303-060112
WASHER
$1.25¢627
1
#15
30006-060016810
BOLT M6X16
$1.25¢627
1
#16
6100-080280
RESERVOIR, REAR MASTER CYLIND
$17.24¢8 619
1
#17
6100-080201
FUEL HOSE
$5.74¢2 869
1
#18
6100-080202
PIPE CLIP
$1.14¢569
1
#19
6100-080203
SPRING PROTECTOR
$4.59¢2 294
1
#20
30903-0201610
COTTER PIN. 2.0X16
$2.29¢1 144
1
#21
30904-0802210
PIN SHAFT
$3.44¢1 719
1
#22
30300-080112
WASHER
$1.14¢569
1
#23
30102-080020810
SCREW, M8X20
$1.25¢627
1
#24
6100-080300
PEDAL REAR BRAKE
No Disponible
1
