FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

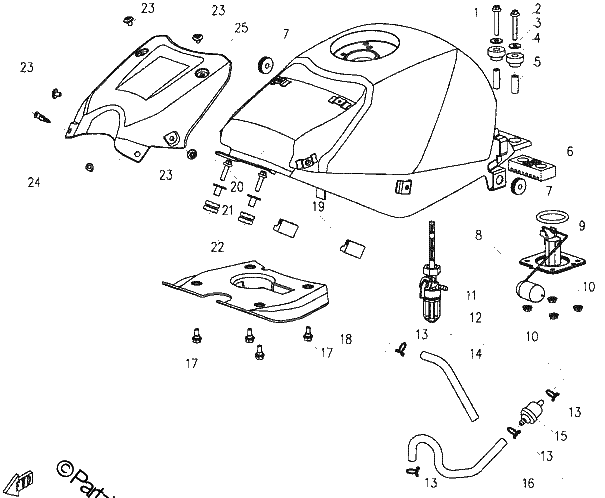

Diagrama de FUEL TANK

Repuestos

#1
610A-1201A0-0E60
FUEL TANK ASSEMBLY, ROYAL BLUE
No Disponible
1
#1
610A-1201A0-0RC0
FUEL TANK ASSEMBLY, PEARL RED
No Disponible
1
#1
610A-1201A0-0B30
FUEL TANK ASSEMBLY, PEARL BLACK
No Disponible
1
#1
610A-1201A0-0Y60
FUEL TANK ASSEMBLY, PEARL WHITE+CRYSTAL ORANGE DECAL
No Disponible
1
#2
30006-060040840
BOLT, M6X40 (ARMY GREEN)
$1.14¢569
1
#3
30301-060412
WASHER M6
$2.29¢1 144
1
#4
8050-120005
CUSHION RUBBER WAHSER
$3.44¢1 719
1
#5
6100-120008
BUSHING, FUEL TANK
$2.29¢1 144
1
#6
6100-120006
CUSHION MAT, FUEL TANK
$5.74¢2 869
1
#7
6090-120001
RUBBER COLLAR
$3.44¢1 719
1
#8
6100-170200
FUEL SENSOR
$11.49¢5 744
1
#9
6090-170201
SEAL GASKET
$4.59¢2 294
1
#10
30202-060110
NUT M6
No Disponible
1
#11
5280-120200
FUEL SWITCH
$8.04¢4 019
1
#12
610A-120200
FUEL HOSE COMP
$22.99¢11 494
1
#13
30601-109010
CLAMP D9
$1.25¢627
1
#14
5280-120003-1000
FUEL HOSE
$5.74¢2 869
1
#15
5190-120520
FUEL FILTER
$11.49¢5 744
1
#16
610A-120220
FUEL HOSE
$5.74¢2 869
1
#17
8010-000004
BOLT M6X14
$1.25¢627
1
#18
610A-120004
BOTTOM PLATE, FUEL TANK
$8.04¢4 019
1
#19
6100-120007
DAMPER, FUEL TANK
$3.44¢1 719
1
#20
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#21
5020-031002
RUBBER COLLAR
$1.25¢627
1
#22
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.25¢627
1
#23
6100-120005
INNER HEX SCREW M6X8
$1.25¢627
1
#24
A000-041110
PLASTIC CLASP
No Disponible
1
#25
6100-120003
DECO COVER, FUEL TANK
$5.74¢2 869
1
