UPPER LOWER CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

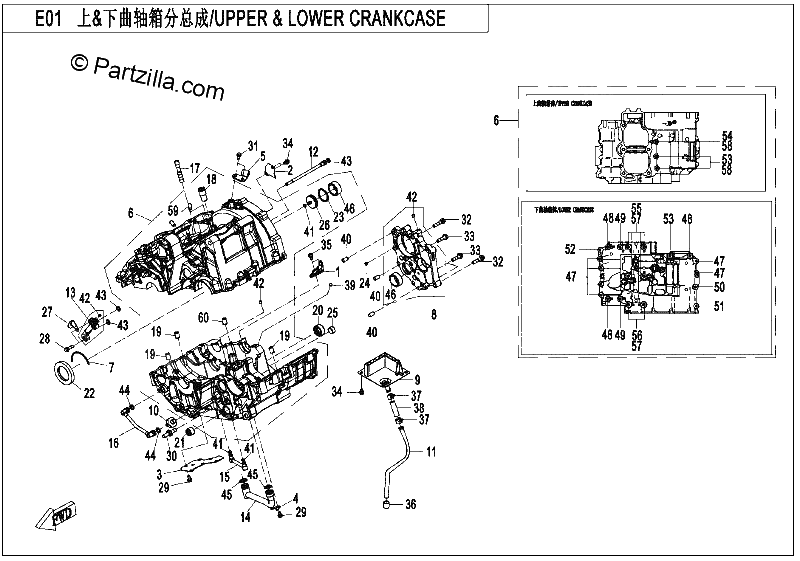

Diagrama de UPPER LOWER CRANKCASE

Repuestos

#1
0700-012300
PLATE,OIL SHIELDING
$4.99¢2 494
1
#2
0700-011104
GUARD, BREATHER
$2.49¢1 244
1
#3
0700-012006
PLATE, LOWER CRANKCASE
$2.49¢1 244
1
#4
0700-070001
PLATE, OIL PIPE 1
$1.36¢681
1
#5
0700-010002
HOLDER, CLUTCH CABLE
$2.49¢1 244
1
#6
0700-0100A0-1B20
CRANKCASE ASSEMBLY MATTE BLACK 283MT A
$624.99¢312 494
1
#7
0700-010001
RING 62, BEARING
$2.49¢1 244
1
#8
0700-0660A0
GEAR CASE
$58.06¢29 031
1
#9
0700-011410
BREATHER ASSEMBLY
$12.49¢6 244
1
#10
0700-012500
SWITCH OIL PRESSURE
$18.74¢9 369
1
#11
0700-011402-1000
OIL RETURN HOSE
$12.49¢6 244
1
#12
0700-011310
OIL PIPE 5
$24.99¢12 494
1
#13
0700-0112A0-0B20
OIL PIPE 4 MATTE BLACK
$18.74¢9 369
1
#14
0700-070300
OIL PIPE 1
$31.24¢15 619
1
#15
0700-012210
OIL PIPE
$31.24¢15 619
1
#16
0700-012710
OIL PIPE 2
$12.60¢6 300
1
#17
0700-011102
STUD M10X57
No Disponible
1
#18
0700-011103
PIPE BREATHER
$2.49¢1 244
1
#19
30410-01000
ROLLER 10X14
$2.49¢1 244
1
#20
30403-02200
NEEDLE BEARING HK2212 22X28X12
$4.99¢2 494
1
#21
30403-01300
NEEDLE BEARING HK1312
$3.74¢1 869
1
#22
0700-010200
OIL SEAL 40X62X8 COUNTERSHAFT
$12.49¢6 244
1
#24
0700-066006
OIL LIMIT PLUG
No Disponible
1
#25
0700-012105
PLUG, MAIN OIL RAIL, R23/8
No Disponible
1
#26
0700-011106
PLUG, UPPER CRANKCASE
$3.74¢1 869
1
#27
0180-014010
WIRE CLAMP
No Disponible
1
#28
0010-080013-0010
BOLT M6X22
$0.75¢375
1
#29
0010-080010-0010
BOLT M6X10
$1.36¢681
1
#30
0700-012107
DOWEL PIN, GEARSHIFT
No Disponible
1
#31
0010-021019-0010
BOLT M6X12
$2.49¢1 244
1
#32
0700-066004
BOLT M7X30
No Disponible
1
#33
0700-066007
BOLT M7X26
No Disponible
1
#34
0700-011105
BOLT M6X8
No Disponible
1
#35
0700-012012
SCREW M6X8
$1.24¢619
1
#36
0700-011403
DAMPER
$12.49¢6 244
1
#37
30601-211550
CLAMP D11.5
$2.49¢1 244
1
#38
0700-011401
CONNECTING PIPE BREATHER
$12.49¢6 244
1
#39
0700-012104
SCREW PLUG M6, OIL PASSAGE, M6
No Disponible
1
#40
0700-022018
SOLID PIN 8X14
$1.36¢681
1
#41
0700-012201
O RING 5X2
$1.36¢681
1
#42
0700-066005
PLUG 6
$2.49¢1 244
1
#43
0700-011202
O RING 8.2X1.90
$1.36¢681
1
#44
0700-012701
O RING 10X2
$1.36¢681
1
#45
0700-070003
O RING 14X2.5
$2.49¢1 244
1
#46
0700-011107
SHAFT SLEEVE
$14.99¢7 494
1
#47
0700-012007
BOLT M7X40
No Disponible
1
#48
0700-012004
BOLT M8X60
No Disponible
1
#49
0700-012003
BOLT M8X73
$3.74¢1 869
1
#50
0700-012011
BOLT M8X50
No Disponible
1
#51
0700-012009
BOLT M7X34
No Disponible
1
#52
0700-012005
BOLT M7X47
No Disponible
1
#53
0700-011001
BOLT M8X110
No Disponible
1
#54
0700-011002
BOLT M8X120
No Disponible
1
#55
0700-012001
BOLT M9X113
No Disponible
1
#56
0700-012008
BOLT M9X83
No Disponible
1
#57
0700-012002
WASHER 9.2X19X2.3
$1.36¢681
1
#58
0010-022012
WASHER M8
$1.36¢681
1
#59
0800-011400-00001
NOZZLE VALVE ASSEMBLY
$17.49¢8 744
1
#60
01A0-056004
DOWEL PIN
$1.36¢681
1
