ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

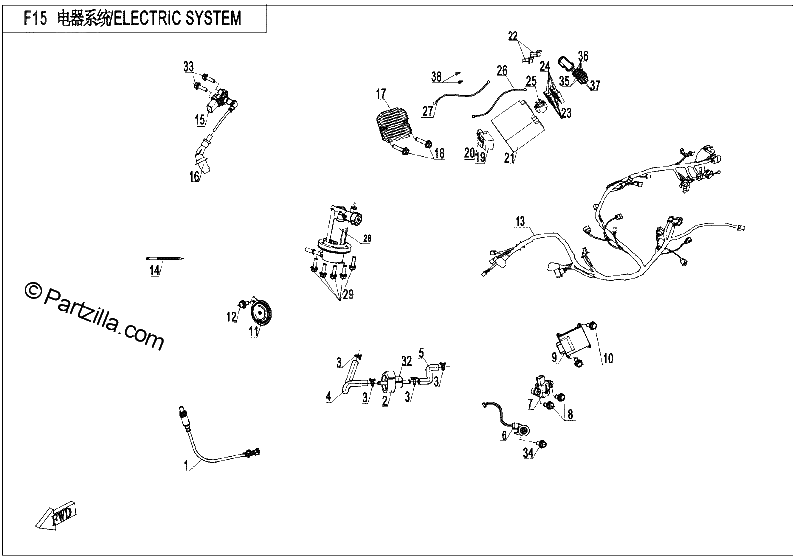

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
018B-176000
OXYGEN SENSOR
$212.49¢106 244
1
#2
901F-000005
RUBBER SLEEVE, IDLE VALVE
$4.99¢2 494
1
#3
30601-112010
CLAMP D12
$1.36¢681
1
#4
6KJ0-150002
AIR OUTLET HOSE,IDLE
$4.99¢2 494
1
#5
6KJ0-150001
AIR INLET HOSE,IDLE
$6.24¢3 119
1
#6
6KMV-151200-8501
SIDE STAND SWITCH
$24.99¢12 494
1
#7
6KJ0-150600
SENSOR, ROLL OVER
$37.49¢18 744
1
#8
0A70-014004-00001
BOLT M5X25
$1.36¢681
1
#9
0A80-174000-10000
ECU
$449.99¢224 994
1
#10
30102-050020830
INNER HEX SCREW M5X20
$1.24¢619
1
#11
6050-150500
ELECTRIC HORN
$24.99¢12 494
1
#12
30006-080014840
BOLT M8X14
$1.24¢619
1
#13
6KJ0-150100-30000
MAIN CABLE
No Disponible
1
#14
8010-150003
TIE BAND 5X250
$1.36¢681
1
#15
018B-178000
IGNITION COIL
$124.99¢62 494
1
#16
01AA-178200-10000
HIGH VOLTAGE IGNITION CABLE
$49.99¢24 994
1
#17
0A80-177000-00001
REGULATOR
No Disponible
1
#18
30006-060025810
BOLT M6X25
$3.74¢1 869
1
#19
6KJ0-150340
FLASHER
$7.49¢3 744
1
#20
6100-150500
RUBBER BAND,FLASHER
$1.24¢619
1
#20
8010-150002
CUSHION FLASHER
$2.49¢1 244
1
#21
6KJV-151600-8100-M1
BATTERY
$74.99¢37 494
1
#22
6090-150500
DIODE START
$6.24¢3 119
1
#23
9010-150002
AUXILIARY RELAY
$2.49¢1 244
1
#24
9010-150350
AUXILIARY RELAY
$7.55¢3 775
1
#25
6KJ0-150500
RELAY, STARTER
$18.74¢9 369
1
#26
6KJ0-150030
NEGATIVE CABLE,STARTER MOTOR
$18.74¢9 369
1
#27
6KJ0-150020
POSITIVE CABLE,STARTER MOTOR
$18.74¢9 369
1
#28
6KJV-150900-8001
FUEL PUMP ASSEMBLY
$187.49¢93 744
1
#30
6KJ0-150400
SPEED SENSOR
$49.99¢24 994
1
#31
30006-060012870
BOLT M6X12
$0.75¢375
1
#33
8010-090005
BOLT M6X16
$1.36¢681
1
#34
30006-060016810
BOLT M6X16
$1.36¢681
1
#35
806A-151301
FUSE (7.5A)
$1.36¢681
1
#36
806A-151305
FUSE (15A)
$2.49¢1 244
1
#37
806A-151302
FUSE 10A
$3.74¢1 869
1
