REAR HANDRAIL FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

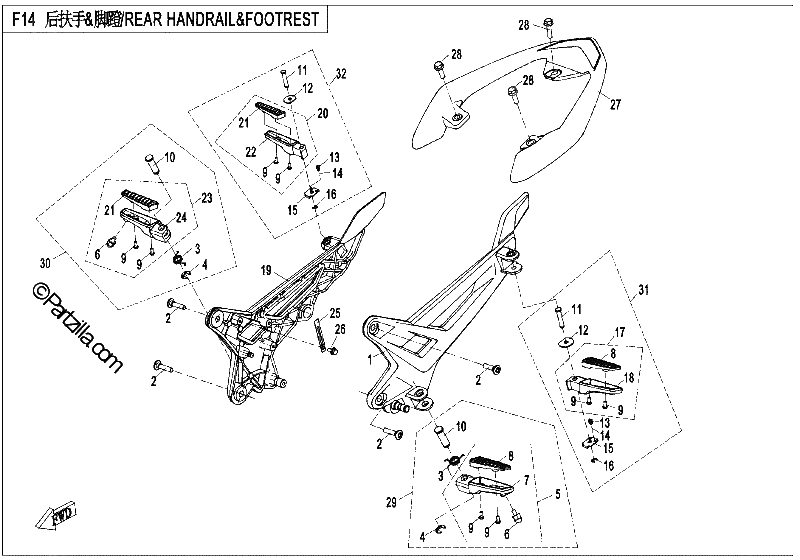

Diagrama de REAR HANDRAIL FOOTREST

Repuestos

#1
6KJ0-140110-3B500
LEFT HAND FOOTREST BRACKET ASSEMBLY TITANIUM GREY
No Disponible
1
#1
6KJ0-140110-3BB00
LEFT HAND FOOTREST BRACKET ASSEMBLY PLASTIC POWDER
No Disponible
1
#2
6KM0-140107
BOLT M8
$2.49¢1 244
1
#3
A000-140103-20000
SPRING
$2.49¢1 244
1
#4
30802-00903
SPLIT WASHER
$1.36¢681
1
#5
6KJ0-140130-0H300
FRONT FOOTREST,LEFT HAND, SILVER BLACK
No Disponible
1
#6
A010-140123
LIMIT BOLT
No Disponible
1
#7
6KJ0-140131-2H800
FRONT LEFT HAND FOOTREST SEAT BLACK GREY
No Disponible
1
#7
6KJ0-140131-2B200
FRONT LEFT HAND FOOTREST SEAT MATTE BLACK
No Disponible
1
#8
6KJ0-140132
RUBBER, LEFT HAND FOOT PEDAL
$8.74¢4 369
1
#9
30105-050015410
SCREW M5X15
$1.24¢619
1
#10
A000-140141
PIN SHAFT 12
$6.24¢3 119
1
#11
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#12
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#13
5190-037813
SPRING
$2.49¢1 244
1
#14
5190-037814
STEEL BALL
$1.24¢619
1
#15
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#16
30802-00605
CIRCLIP
$1.36¢681
1
#17
6KJ0-140150-1B500
REAR FOOTREST(LEFT HAND), TITANIUM GREY
$24.99¢12 494
1
#17
6KJ0-140150-2H300
REAR FOOTREST, LEFT HAND SILVER BLACK
No Disponible
1
#18
6KJ0-140151-2H800
REAR LEFT HAND FOOTREST SEAT BLACK GREY
No Disponible
1
#18
6KJ0-140151-2B200
REAR LEFT HAND FOOTREST SEAT MATTE BLACK
No Disponible
1
#19
6KJ0-140120-3B500
BRACKET, RIGHT HAND FOOTREST, TITANIUM GREY
No Disponible
1
#19
6KJ0-140120-3BB00
RIGHT HAND FOOTREST BRACKET ASSEMBLY PLASTIC POWDER
No Disponible
1
#20
6KJ0-140160-1H300
REAR RIGHT HAND FOOTREST ASSEMBLY MATTE SILVER BLACK
No Disponible
1
#20
6KJ0-140160-1B500
REAR FOOTREST,RIGHT HAND, TITANIUM GREY
$24.99¢12 494
1
#21
6KJ0-140142
RUBBER ASSEMBLY,FRONT STEP, RIGHT HAND
$12.49¢6 244
1
#22
6KJ0-140161-2H800
REAR RIGHT HAND FOOTREST SEAT BLACK GREY
No Disponible
1
#22
6KJ0-140161-2B200
REAR RIGHT HAND FOOTREST SEAT MATTE BLACK
No Disponible
1
#23
6KJ0-140140-1B500
FRONT RIGHT HAND FOOTREST ASSEMBLY TITANIUM GREY
No Disponible
1
#24
6KJ0-140141-2B200
FRONT RIGHT HAND FOOTREST SEAT MATTE BLACK
No Disponible
1
#24
6KJ0-140141-2H800
FRONT RIGHT HAND FOOTREST SEAT BLACK GREY
No Disponible
1
#25
0180-014010
WIRE CLAMP
No Disponible
1
#26
30006-060012870
BOLT M6X12
$0.75¢375
1
#27
6KJ0-140201-0B50
REAR ARMREST, TITANIUM GREY
$99.99¢49 994
1
#27
6KJ0-140201-0B800
REAR ARMREST MATTE PEARL BLACK
No Disponible
1
#28
30006-080025810
BOLT M8X25
$1.36¢681
1
#29
6KJ0-1401A0
MOUNTING ASSEMBLY, FRONT FOOTREST (LEFT HAND)
No Disponible
1
#30
6KJ0-1401B0
FRONT FOOTREST ASSEMBLY, RIGHT HAND
No Disponible
1
#31
6KJ0-1401C0
MOUNTING ASSEMBLY, REAR FOOTREST (LEFT HAND)
No Disponible
1
#32
6KJ0-1401D0
MOUNTING ASSEMBLY, REAR FOOTREST (RIGHT HAND)
No Disponible
1
