TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

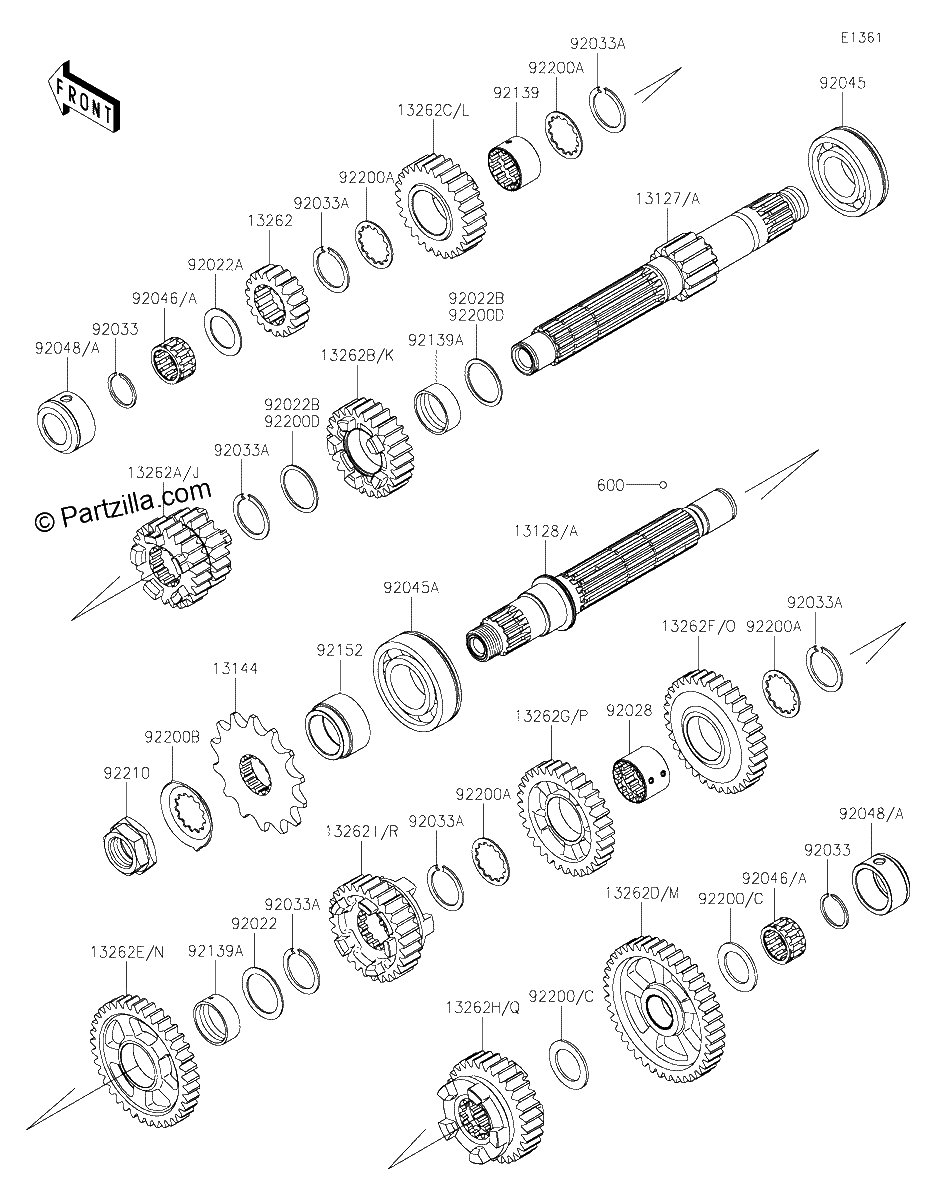

Diagrama de TRANSMISSION

Repuestos

#600
600A0500
BALL-STEEL,5/32
$0.82¢408
1
#13127
13127-0707
SHAFT-TRANSMISSION INPUT,13T
$270.85¢135 424
1
#13127
13127-0727
SHAFT TRANSMISSION INPUT,13T
$270.85¢135 424
1
#13128
13128-0706
SHAFT-TRANSMISSION OUTPUT
$219.01¢109 503
1
#13128
13128-0734
SHAFT TRANSMISSION OUTPUT
$219.01¢109 503
1
#13144
13144-0577
SPROCKET-OUTPUT,14T
$58.36¢29 181
1
#13262I
13262-1599
GEAR,OUTPUT 6TH,28T
$110.24¢55 119
1
#13262F
13262-1294
GEAR,OUTPUT 3RD,34T
$92.53¢46 264
1
#13262
13262-1288
GEAR,INPUT 2ND,18T
$54.39¢27 197
1
#13262A
13262-1289
GEAR,INPUT 3RD&4TH,21T,24T
$111.18¢55 591
1
#13262B
13262-1290
GEAR,INPUT 5TH,26T
$74.88¢37 438
1
#13262C
13262-1291
GEAR,INPUT 6TH,27T
$77.80¢38 899
1
#13262D
13262-1292
GEAR,OUTPUT LOW,41T
$92.06¢46 029
1
#13262E
13262-1293
GEAR,OUTPUT 2ND,37T
$87.24¢43 619
1
#13262G
13262-1295
GEAR,OUTPUT 4TH,32T
$90.38¢45 189
1
#13262H
13262-1598
GEAR,OUTPUT 5TH,30T
$109.53¢54 763
1
#13262H
13262-1296
GEAR,OUTPUT 5TH,30T
$109.53¢54 763
1
#13262I
13262-1297
GEAR,OUTPUT 6TH,28T
$110.24¢55 119
1
#13262A
13262-1591
GEAR,INPUT 3RD&4TH,21T,24T
$111.18¢55 591
1
#13262B
13262-1592
GEAR,INPUT 5TH,26T
$74.88¢37 438
1
#13262C
13262-1593
GEAR,INPUT 6TH,27T
$77.80¢38 899
1
#13262D
13262-1594
GEAR,OUTPUT LOW,41T
$92.06¢46 029
1
#13262E
13262-1595
GEAR,OUTPUT 2ND,37T
$87.24¢43 619
1
#13262F
13262-1596
GEAR,OUTPUT 3RD,34T
$92.53¢46 264
1
#13262G
13262-1597
GEAR,OUTPUT 4TH,32T
$90.38¢45 189
1
#92022A
92022-112
WASHER,20.5X30X1,STEEL
$8.10¢4 048
1
#92022B
92022-161
WASHER,25.3X30X1
$9.71¢4 853
1
#92022
92022-1109
WASHER,25.3X33X1
$5.39¢2 697
1
#92028
92028-1858
BUSHING,OUTPUT 3RD&4TH GEAR
$21.19¢10 597
1
#92033A
92033-026
RING SNAP,24MM
$8.03¢4 013
1
#92033
92033-015
RING-SNAP,20MM
$3.90¢1 949
1
#92045A
92045-0841
BEARING-BALL,28X58X16
$44.25¢22 126
1
#92045
92045-0735
BEARING-BALL,6TM-6205NX3
$36.56¢18 279
1
#92046
92046-1185
BEARING-NEEDLE,KMJ20X26X13.8X1
$18.77¢9 384
1
#92046
92046-0607
BEARING-NEEDLE,20X25X12.8
$21.30¢10 649
1
#92048
92048-0047
RACE
$43.02¢21 511
1
#92048
92048-0025
RACE
$35.72¢17 859
1
#92139A
92139-0793
BUSHING,25X28X10.4
$15.66¢7 831
1
#92139
92139-0781
BUSHING,26X28X16.6
$25.24¢12 621
1
#92152
92152-2369
COLLAR
$24.40¢12 201
1
#92200
92200-1375
WASHER,20.5X31X1.5
$4.48¢2 242
1
#92200A
92200-1389
WASHER
$2.01¢1 006
1
#92200B
92200-1932
WASHER
$4.20¢2 099
1
#92200
92200-2523
WASHER,20.5X31X1.5
$2.08¢1 041
1
#92200D
92200-2524
WASHER,25.3X30X1
$1.49¢747
1
#92210
92210-0850
NUT,20MM
$13.10¢6 549
1
