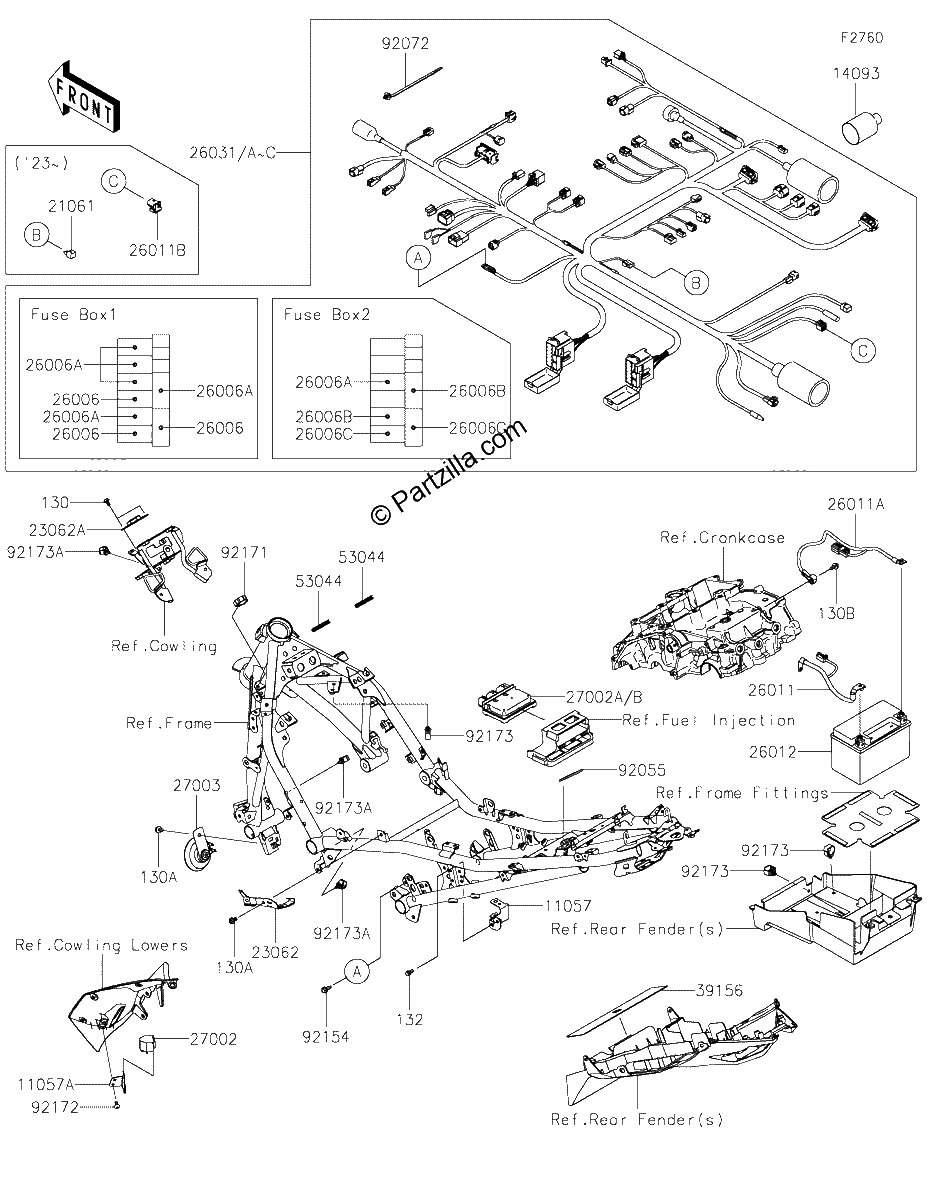

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,5X10
$1.53¢765
#130A
BOLT FLANGED,6X10
$1.16¢581
#130B
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#132
BOLT-FLANGED-SMALL,6X12
$1.16¢581
#11057
BRACKET,MAGNETIC SW.
$5.99¢2 996
#11057A
BRACKET,RELAY
$3.39¢1 696
#14093
COVER,HARNESS
$4.38¢2 191
#21061
RECTIFIER
$32.69¢16 347
#23062
BRACKET-COMP,FUSE BOX
$3.54¢1 771
#23062A
BRACKET-COMP,SIGNAL LAMP
$4.63¢2 317
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006C
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
#26006B
FUSE,MINI BLADE,20A,YELLOW
$4.45¢2 225
#26006A
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
#26011
WIRE-LEAD,BATTERY(+)
$50.38¢25 191
#26011B
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
#26011A
WIRE-LEAD,BATTERY(-)
$33.53¢16 767
#26012
BATTERY,FTX9 BS,12V 8AH
$230.55¢115 276
#26031
HARNESS,MAIN
$894.52¢447 258
#26031
HARNESS,MAIN
$894.52¢447 258
#26031
HARNESS,MAIN
$996.13¢498 065
#26031
HARNESS,MAIN
$996.13¢498 065
#27002A
RELAY Assembly
$197.13¢98 566
#27002A
RELAY Assembly
$149.93¢74 963
#27002
RELAY-ASSY,TURN SIGNAL
$26.10¢13 052
#27003
HORN
$76.10¢38 048
#39156
PAD,60X250X1
$10.99¢5 497
#53044
TRIM,45MM
$5.29¢2 645
#92055
RING-O,50MM
$3.79¢1 897
#92072
BAND
$3.40¢1 702
#92154
BOLT,FLANGED,6X16
$1.55¢776
#92171
CLAMP,BRAKE HOSE
$3.51¢1 754
#92172
SCREW,5X12
$0.87¢437
#92173
CLAMP,HOLDER CLIP
$2.53¢1 265
#92173A
CLAMP
$1.37¢684
