REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

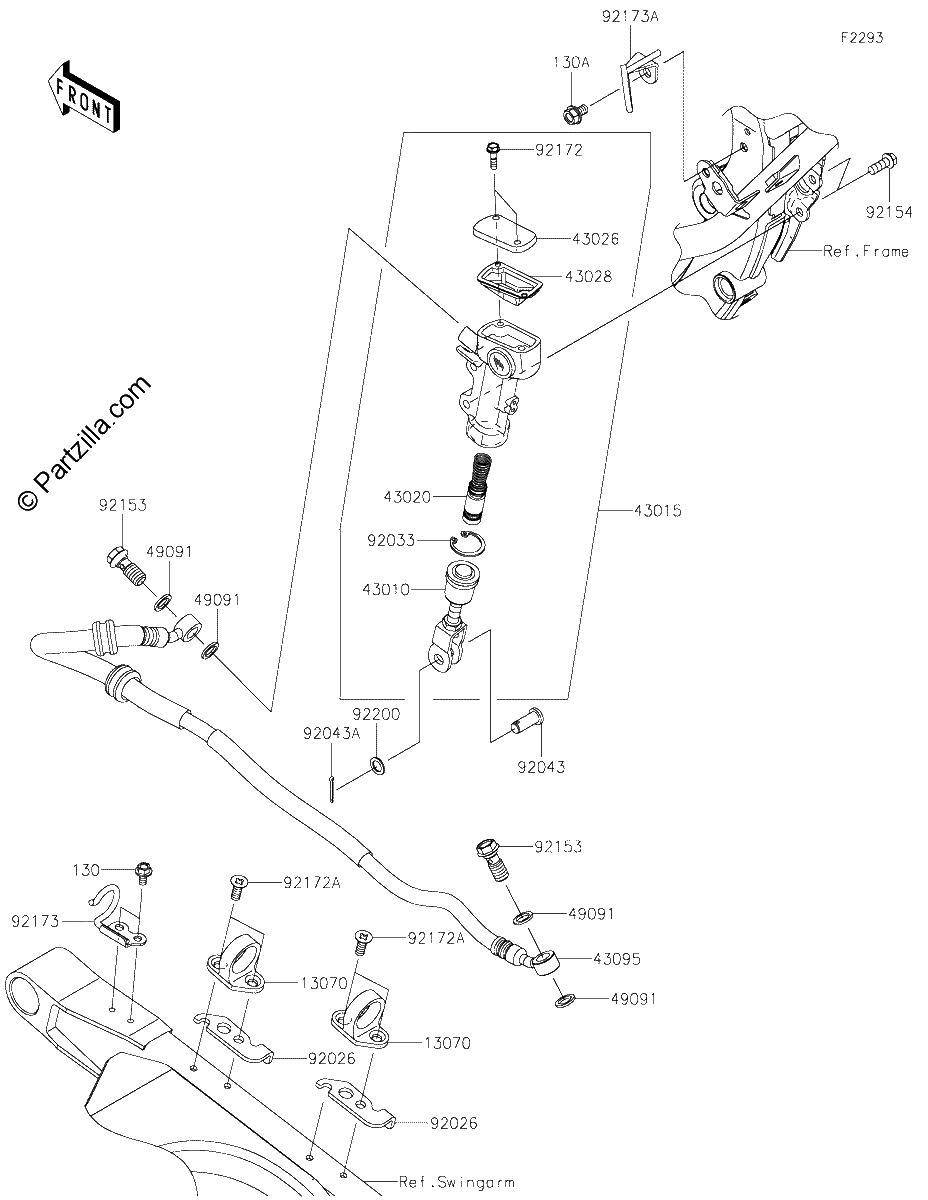

Diagrama de REAR MASTER CYLINDER

Repuestos

#130
130BA0510
BOLT FLANGED,5X10
$1.66¢831
1
#130A
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#13070
13070-1144
GUIDE,HOSE
$7.99¢3 994
1
#43010
43010-0025
ROD Assembly BRAKE
$65.74¢32 869
1
#43015
43015-0724
CYLINDER Assembly MASTER,Rear
$364.44¢182 219
1
#43020
43020-1094
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-0023
CAP BRAKE
$17.94¢8 969
1
#43028
43028-1092
DIAPHRAGM
$21.88¢10 938
1
#43095
43095-1630
HOSE BRAKE,M/CYLINDER CALIPER
$96.85¢48 425
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92026
92026-0879
SPACER
$5.95¢2 975
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
1
#92043A
92043-0766
PIN,COTTER,2.0X15
$1.24¢619
1
#92043
92043-0004
PIN
$11.06¢5 531
1
#92153
92153-0029
BOLT,OIL,L=23
$1.69¢844
1
#92154
92154-0460
BOLT,FLANGED,6X16
$1.76¢881
1
#92172A
92172-1198
SCREW,6X16
$1.95¢975
1
#92172
92172-1064
SCREW
$2.00¢1 000
1
#92173A
92173-1978
CLAMP,BRAKE HOSE,SWING ARM
$5.04¢2 519
1
#92173
92173-1976
CLAMP,BRAKE HOSE,SWING ARM
$4.79¢2 394
1
#92200
92200-1980
WASHER,8.5X13X1
$4.13¢2 063
1
