COWLING OUTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

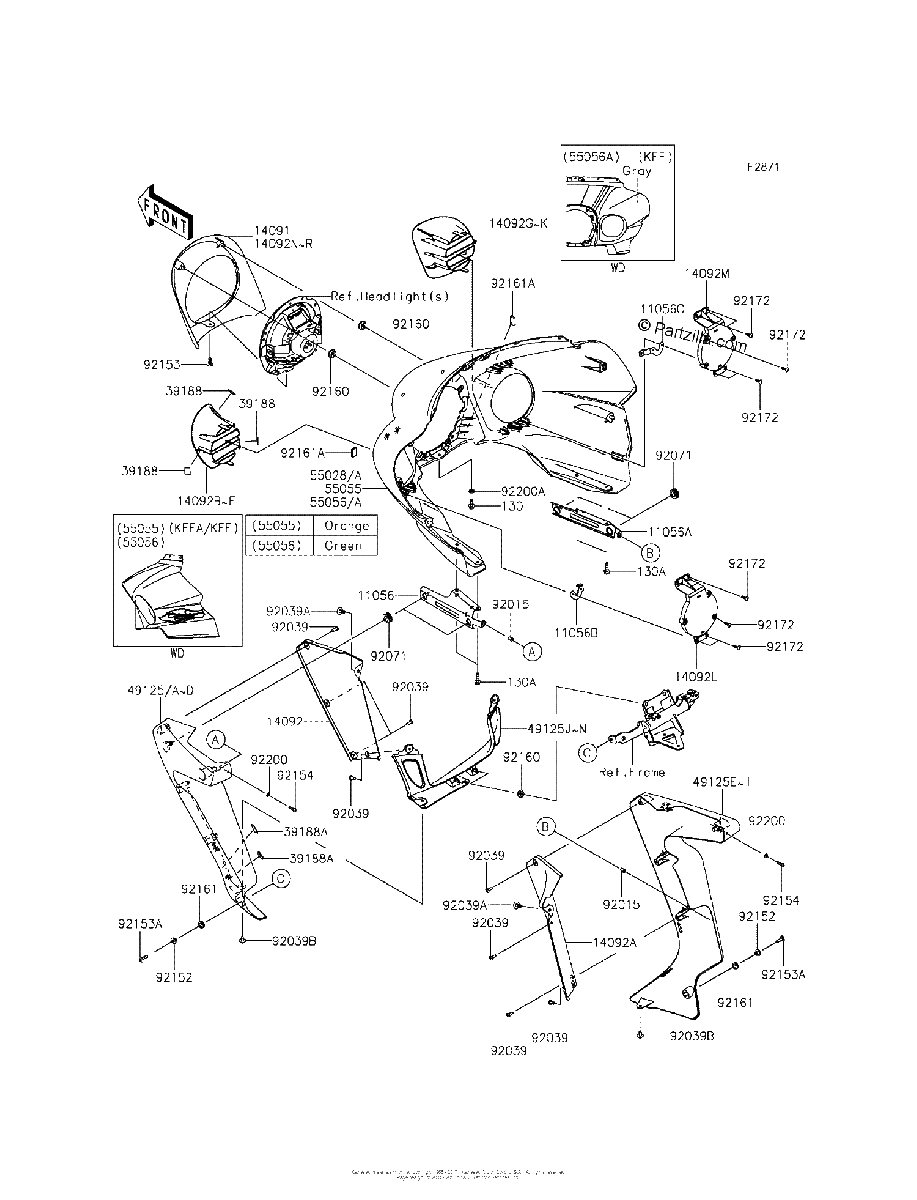

Diagrama de COWLING OUTER

Repuestos

#130
130AA0616
BOLT FLANGED,6X16
$0.61¢305
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.21¢1 104
1
#11056
11056-0344
BRACKET,SHROUD,LH
$18.07¢9 033
1
#11056A
11056-0345
BRACKET,SHROUD,RH
$18.07¢9 033
1
#11056B
11056-1145
BRACKET,SUB LAMP,Left Hand,Lower
$6.21¢3 105
1
#11056C
11056-1146
BRACKET,SUB LAMP,RH,LWR
$6.21¢3 105
1
#14091
14091-0948
COVER,HEAD LAMP
$300.92¢150 460
1
#14092
14092-0204
COVER,SHROUD,INNNER,LH
$37.20¢18 601
1
#14092N
14092-0770-660
COVER,HEAD LAMP,M S BLACK
$269.56¢134 780
1
#14092F
14092-0209-660
COVER,SUB LAMP,Left Hand,M S BLACK
$141.08¢70 541
1
#14092A
14092-0205
COVER,SHROUD,INNNER,RH
$37.20¢18 601
1
#14092N
14092-0770-51P
COVER,HEAD LAMP,C L GREEN
$269.92¢134 958
1
#14092B
14092-0209-17L
COVER,SUB LAMP,Left Hand,C B ORANGE
$145.28¢72 640
1
#14092B
14092-0209-51A
COVER,SUB LAMP,Left Hand,M C GRAY
$146.49¢73 244
1
#14092B
14092-0209-51P
COVER,SUB LAMP,Left Hand,C L GREEN
$147.97¢73 985
1
#14092B
14092-0209-H8
COVER,SUB LAMP,Left Hand,EBONY
$138.69¢69 345
1
#14092N
14092-0770-51A
COVER,HEAD LAMP,M C GRAY
$269.92¢134 958
1
#14092N
14092-0770-17L
COVER,HEAD LAMP,C B ORANGE
$269.92¢134 958
1
#14092M
14092-0212
COVER,SUB LAMP,INNNER,Right Hand
$32.91¢16 457
1
#14092G
14092-0210-17L
COVER,SUB LAMP,Right Hand,C B ORANGE
$145.28¢72 640
1
#14092L
14092-0211
COVER,SUB LAMP,INNNER,Left Hand
$32.91¢16 457
1
#14092G
14092-0210-H8
COVER,SUB LAMP,RH,EBONY
$138.69¢69 345
1
#14092K
14092-0210-660
COVER,SUB LAMP,Right Hand,M S BLACK
$141.08¢70 541
1
#14092G
14092-0210-51P
COVER,SUB LAMP,Right Hand,C L GREEN
$147.97¢73 985
1
#14092G
14092-0210-51A
COVER,SUB LAMP,Right Hand,M C GRAY
$147.97¢73 985
1
#39188
39188-0552
TAPE
$3.51¢1 754
1
#39188A
39188-0553
TAPE
$3.36¢1 679
1
#49125J
49125-0065-51A
SHROUD,Lower,CNT,M C GRAY
$214.74¢107 370
1
#49125
49125-0063-51A
SHROUD,OUTER,LH,M.C.GRAY
$224.85¢112 424
1
#49125
49125-0063-51P
SHROUD,OUTER,Left Hand,C L GREEN
$223.04¢111 521
1
#49125C
49125-0063-660
SHROUD,OUTER,Left Hand,M S BLACK
$214.49¢107 243
1
#49125
49125-0063-H8
SHROUD,OUTER,Left Hand,EBONY
$223.04¢111 521
1
#49125E
49125-0064-51A
SHROUD,OUTER,Right Hand,M C GRAY
$224.85¢112 424
1
#49125E
49125-0064-51P
SHROUD,OUTER,Right Hand,C L GREEN
$223.04¢111 521
1
#49125H
49125-0064-660
SHROUD,OUTER,Right Hand,M S BLACK
$214.49¢107 243
1
#49125E
49125-0064-660
SHROUD,OUTER,Right Hand,M S BLACK
$214.49¢107 243
1
#49125E
49125-0064-H8
SHROUD,OUTER,Right Hand,EBONY
$223.04¢111 521
1
#49125J
49125-0065-51P
SHROUD,Lower,CNT,C L GREEN
$213.01¢106 507
1
#49125M
49125-0065-660
SHROUD,Lower,CNT,M S BLACK
$204.90¢102 448
1
#49125J
49125-0065-660
SHROUD,Lower,CNT,M S BLACK
$204.90¢102 448
1
#49125J
49125-0065-H8
SHROUD,Lower,CNT,EBONY
$213.01¢106 507
1
#49125
49125-0063-660
SHROUD,OUTER,Left Hand,M S BLACK
$214.49¢107 243
1
#55028
55028-0401-660
COWLING,Upper,OUTER,M S BLACK
$1105.08¢552 541
1
#55055
55055-5127-17L
COWLING,Upper,OUTER,C B ORANGE
$1364.69¢682 347
1
#55056
55056-5145-51A
COWLING,Upper,OUTER,M C GRAY
$1515.07¢757 534
1
#55056
55056-5140-51P
COWLING,Upper,OUTER,C L GREEN
$1546.80¢773 398
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039A
92039-0086
RIVET
$5.01¢2 507
1
#92039B
92039-1289
RIVET
$2.37¢1 185
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92071
92071-1131
GROMMET
$7.11¢3 553
1
#92152
92152-0295
COLLAR
$5.12¢2 559
1
#92153A
92153-1356
BOLT,SOCKET,6X22
$1.87¢937
1
#92153
92153-0817
BOLT,SOCKET,6X16
$1.87¢937
1
#92154
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-0717
DAMPER
$0.93¢466
1
#92161
92161-0266
DAMPER
$1.59¢793
1
#92172
92172-0382
SCREW,TAPPING,5X20
$2.17¢1 087
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-0511
WASHER,6.5X12X2
$2.43¢1 213
1
