IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

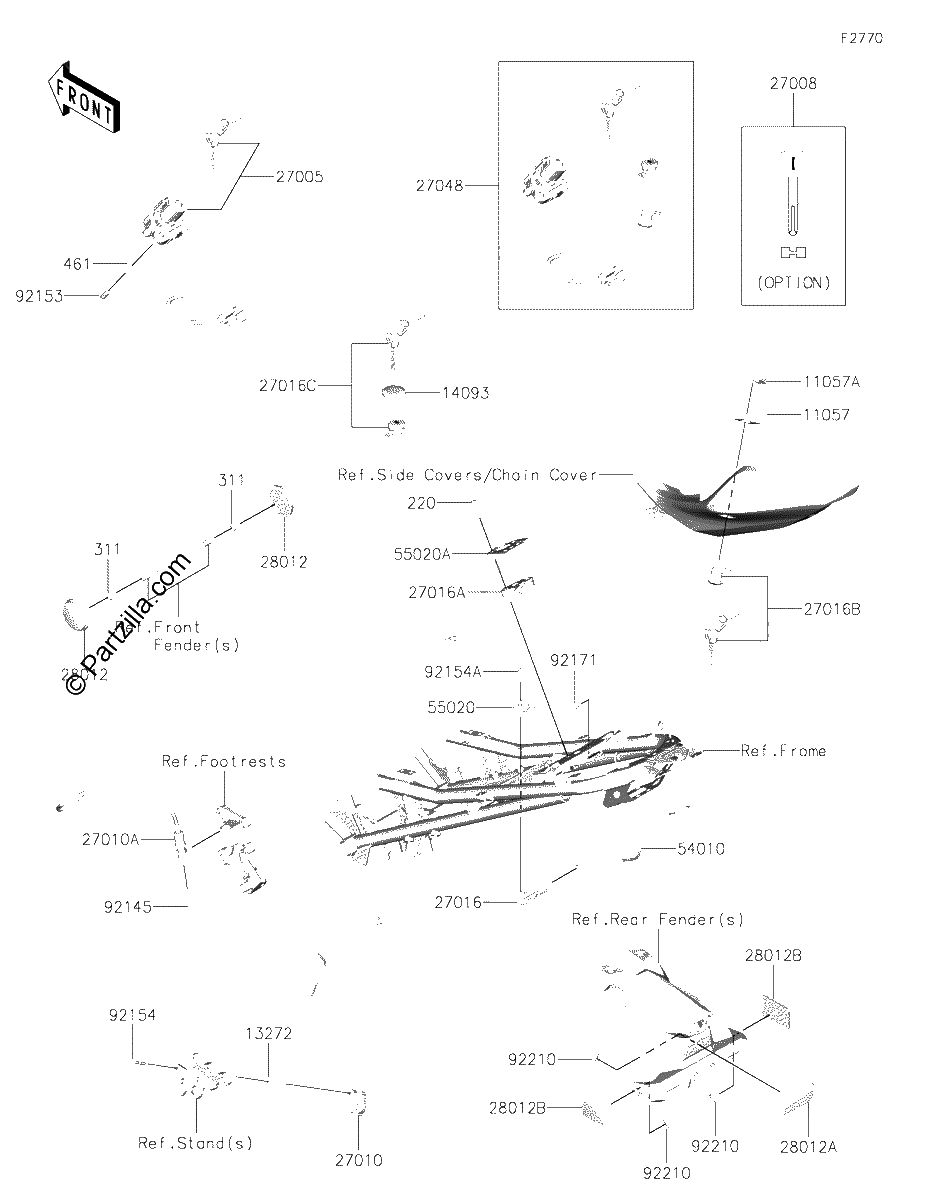

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#220
220AC0625
SCREW-PAN-CROS,6X25
$1.18¢592
1
#311
311AB0500
NUT HEX,5MM
$0.55¢276
1
#461
461DA0600
WASHER SPRING,6MM
$0.78¢391
1
#11057
11057-7033
BRACKET,SEAT LOCK
$4.23¢2 116
1
#11057A
11057-7740
BRACKET,SEAT LOCK,Upper
$1.90¢949
1
#13272
13272-1330
PLATE
$3.38¢1 691
1
#14093
14093-1525
COVER,KEY
$4.84¢2 421
1
#27005
27005-0748
SWITCH Assembly IGNITION
$209.12¢104 558
1
#27008
27008-0662
KEY-LOCK,BLANK
$30.22¢15 111
1
#27010
27010-0845
SWITCH,SIDE STAND
$138.29¢69 144
1
#27010A
27010-0863
SWITCH,STOP
$32.13¢16 066
1
#27016
27016-0008
LOCK Assembly,SEAT STRIKER
$15.23¢7 613
1
#27016C
27016-5435
LOCK Assembly,STORAGE
$157.68¢78 838
1
#27016B
27016-5430
LOCK Assembly,SEAT
$157.66¢78 833
1
#27016A
27016-0025
LOCK-ASSY,SEAT STRIKER
$30.07¢15 036
1
#27048
27048-5325
SWITCH-ASSY
$498.52¢249 263
1
#28012B
28012-1088
REFLECTOR REFLEX
$21.75¢10 873
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$23.47¢11 736
1
#28012A
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#54010
54010-0621
CABLE
$10.78¢5 388
1
#55020A
55020-2477
GUARD,SEAT STRIKER
$8.16¢4 082
1
#55020
55020-2246
GUARD,SEAT STRIKER
$10.57¢5 284
1
#92145
92145-0683
SPRING,BRAKE LAMP SWITCH
$3.35¢1 673
1
#92153
92153-1426
BOLT,TORX,6X16
$3.78¢1 892
1
#92154A
92154-3869
BOLT,FLANGED-SMALL,6X16,TB2468
$1.95¢977
1
#92154
92154-1009
BOLT,FLANGED,6X35
$2.89¢1 443
1
#92171
92171-0939
CLAMP
$4.23¢2 116
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
