REAR WHEEL CHAIN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

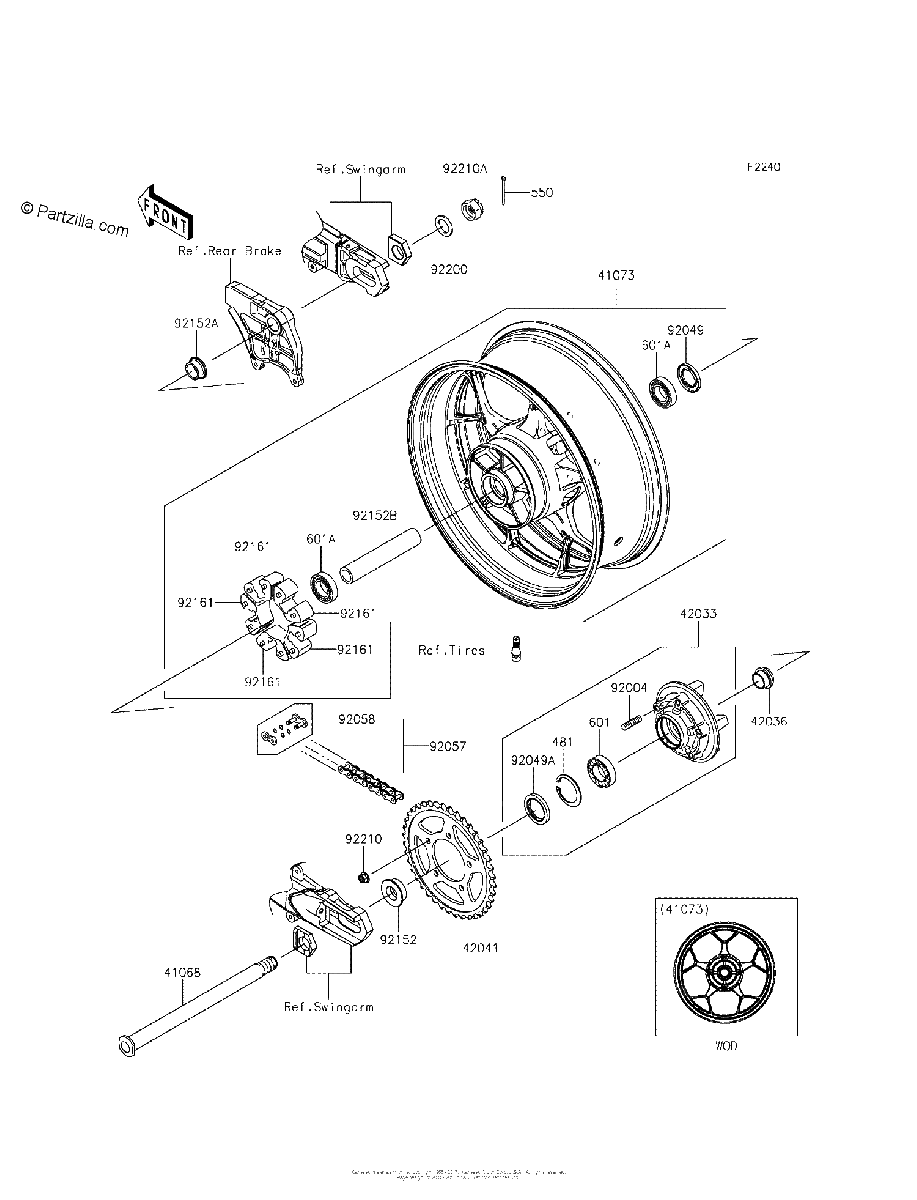

Diagrama de REAR WHEEL CHAIN

Repuestos

#481
481J5500
CIRCLIP
No Disponible
1
#550
550AA4045
PIN-COTTER,4.0X45
$1.16¢581
1
#601
601B6006G
BEARING BALL,#6006G
$30.51¢15 255
1
#601A
601B6205UU
BEARING-BALL
$31.03¢15 513
1
#41068
41068-0050
AXLE,Rear
No Disponible
1
#41073
41073-0574-18F
WHEEL Assembly,Rear,G BLACK
$1249.44¢624 720
1
#42033
42033-0021
COUPLING-ASSY,RR HUB
$312.58¢156 291
1
#42036
42036-1279
SLEEVE,Rear HUB,L=22
$30.45¢15 226
1
#42041
42041-0117
SPROCKET HUB,42T
$102.05¢51 025
1
#92004
92004-0029
STUD,10X24
$5.29¢2 645
1
#92049
92049-0722
SEAL-OIL,31X52X5
$19.24¢9 620
1
#92049A
92049-1263
SEAL-OIL,PJN40556
$18.11¢9 056
1
#92057
92057-0579
CHAIN,DRIVE,EK530RMX/3DX118L
$377.50¢188 749
1
#92058
92058-0031
JOINT-CHAIN
$15.77¢7 883
1
#92152A
92152-0341
COLLAR,Rear AXLE,Right Hand,L=16
$63.74¢31 872
1
#92152B
92152-1080
COLLAR,RR HUB,L=152.5
$37.48¢18 739
1
#92152
92152-0340
COLLAR,RR AXLE,LH,L=16.5
$43.73¢21 867
1
#92161
92161-1286
DAMPER,SHOCK,RR HUB
$30.30¢15 151
1
#92200
92200-0278
WASHER,25.5X38X3.2
$2.22¢1 110
1
#92210
92210-0276
NUT,LOCK,FLANGED,10MM
$2.22¢1 110
1
#92210A
92210-0280
NUT,CASTLE,24MM
$12.39¢6 193
1
