HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

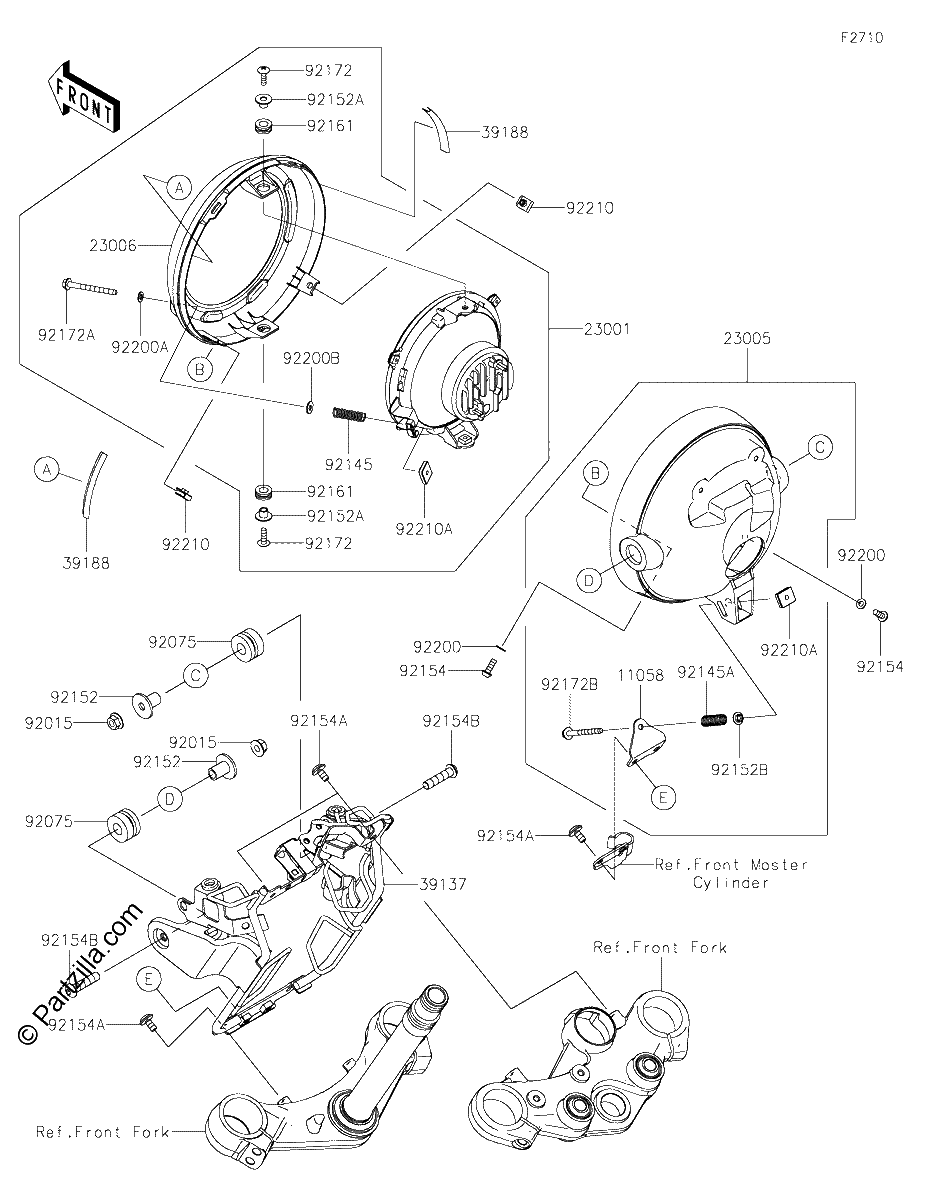

Diagrama de HEADLIGHT S

Repuestos

#11058
11058-0255
BRACKET,HEAD LAMP BODY
$2.73¢1 363
1
#23001
23001-0073
LAMP-ASSY-HEAD,LED
$1675.10¢837 551
1
#23005
23005-0317
BODY-COMP-HEAD LAMP
$164.93¢82 466
1
#23006
23006-0027
RIM-LAMP
$101.71¢50 853
1
#39137
39137-0745
STAY-COMP
$686.19¢343 097
1
#39188
39188-0597
TAPE,70X15
$2.45¢1 225
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.68¢339
1
#92075
92075-1736
DAMPER
$5.91¢2 956
1
#92145A
92145-2279
SPRING
$1.39¢696
1
#92145
92145-1990
SPRING
$22.09¢11 046
1
#92152B
92152-2940
COLLAR
$3.45¢1 725
1
#92152A
92152-2785
Collar
$2.33¢1 167
1
#92152
92152-2433
COLLAR,8X12X20.3
$8.36¢4 180
1
#92154
92154-1701
BOLT,SOCKET,5X16
$1.14¢569
1
#92154B
92154-7063
BOLT,SOCKET,8X35
$3.79¢1 897
1
#92154A
92154-2706
BOLT,SOCKET,6X12
$1.59¢793
1
#92161
92161-2376
Damper
$10.48¢5 238
1
#92172B
92172-1461
SCREW,FLANGED,5X52
$1.66¢828
1
#92172A
92172-1409
SCREW,FLANGED,5X52
$3.91¢1 955
1
#92172
92172-1407
SCREW,PAN-CROSS,5X15
$1.95¢977
1
#92200B
92200-2436
WASHER,5.2X12X1
$0.93¢466
1
#92200A
92200-2435
WASHER,5.2X10X1
$0.52¢259
1
#92200
92200-2286
WASHER,5.2X10X1
$0.51¢253
1
#92210
92210-0571
NUT
$3.22¢1 610
1
#92210A
92210-1850
Nut
$3.85¢1 926
1
