REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

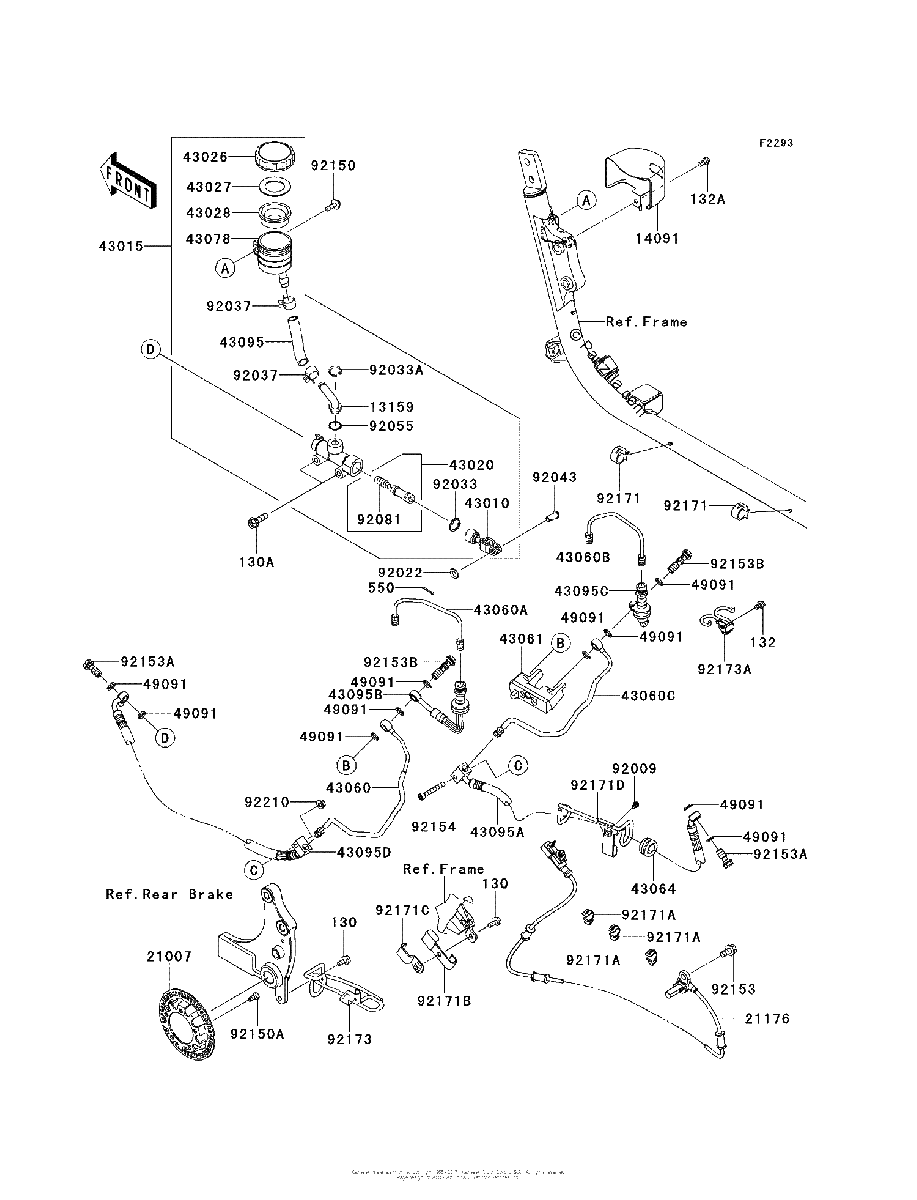

Diagrama de REAR MASTER CYLINDER

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130A
130BB0825
BOLT-FLANGED,8X25
$3.15¢1 576
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.53¢765
1
#132A
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.78¢891
1
#550
550AA2015
PIN COTTER,2.0X15
$1.08¢541
1
#13159
13159-1052
CONNECTOR,RR MASTER CYLINDER
$14.42¢7 210
1
#14091
14091-1595
COVER,RESERVOIR TANK
$75.13¢37 565
1
#21007
21007-0115
ROTOR,SPEED SENSOR
$48.12¢24 058
1
#21176
21176-0104
SENSOR,SPEED,Rear
$179.89¢89 947
1
#43010
43010-1062
ROD Assembly BRAKE
$53.67¢26 835
1
#43015
43015-0081
CYLINDER-ASSY-MASTER,RR
$305.51¢152 755
1
#43020
43020-1057
PISTON-COMP-BRAKE
$68.37¢34 184
1
#43026
43026-1051
CAP BRAKE
$35.82¢17 911
1
#43027
43027-1051
PLATE DIAPHRAGM
$4.84¢2 421
1
#43028
43028-1057
DIAPHRAGM,MASTER CYLINDER
$17.26¢8 631
1
#43060
43060-0078
PIPE BRAKE,Rear M/CYLINDER (HU)
$105.37¢52 687
1
#43060A
43060-0079
PIPE-BRAKE,(RR M/CYLINDER)-HU
$41.83¢20 913
1
#43060B
43060-0080
PIPE BRAKE,HU (Rear CALIPER)
$41.83¢20 913
1
#43060C
43060-0081
PIPE BRAKE,(HU) Rear CALIPER
$105.37¢52 687
1
#43061
43061-0006
JOINT BRAKE
$38.88¢19 441
1
#43064
43064-007
GROMMET,HOSE CLAMP
$5.01¢2 507
1
#43078
43078-1178
RESERVOIR,Rear MASTER CYLINDER
$26.48¢13 242
1
#43095D
43095-0524
HOSE-BRAKE,RR M/CYLINDER-(HU)
$99.90¢49 950
1
#43095C
43095-0521
HOSE-BRAKE,HU-(RR CALIPER)
$53.61¢26 806
1
#43095
43095-0306
HOSE-BRAKE,RR MASTER CYLINDER
$16.47¢8 234
1
#43095A
43095-0391
HOSE-BRAKE,HU-RR CALIPER
$161.43¢80 713
1
#43095B
43095-0520
HOSE-BRAKE,(RR M/CYLINDER)-HU
$78.44¢39 221
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
1
#92009
92009-1661
SCREW,6X10
$3.94¢1 972
1
#92022
92022-1582
WASHER,8.5X16X1.2
$0.97¢483
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.53¢2 266
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
1
#92037
92037-1547
CLAMP,BRAKE HOSE
$12.72¢6 360
1
#92043
92043-1013
PIN,8X16
$9.04¢4 520
1
#92055
92055-0741
RING O,14.8X2.4
$3.38¢1 691
1
#92081
92081-1737
SPRING,MASTER CYLINDER
$12.59¢6 296
1
#92150A
92150-1836
BOLT,SOCKET,6X14
$4.28¢2 139
1
#92150
92150-1339
BOLT,6X20
$4.01¢2 007
1
#92153A
92153-0627
BOLT,OIL,L=23
$4.98¢2 490
1
#92153B
92153-1438
BOLT,OIL,L=37
$4.48¢2 242
1
#92153
92153-0327
BOLT,SOCKET,8X16
$5.66¢2 829
1
#92154
92154-0134
BOLT,SOCKET,6X45
$2.33¢1 167
1
#92171A
92171-1819
CLAMP,BRAKE HOSE
$5.22¢2 610
1
#92171B
92171-1826
CLAMP
$13.31¢6 653
1
#92171
92171-1424
CLAMP,15MM DIA.
$3.83¢1 915
1
#92171D
92171-1828
CLAMP
$49.89¢24 944
1
#92171C
92171-1827
CLAMP
$12.09¢6 043
1
#92173A
92173-0184
CLAMP,Rear BRAKE HOSE
$22.57¢11 287
1
#92173
92173-0138
CLAMP,BRAKE HOSE
$51.72¢25 858
1
#92210
92210-0630
NUT,FLANGED,6MM
$1.75¢874
1
