FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

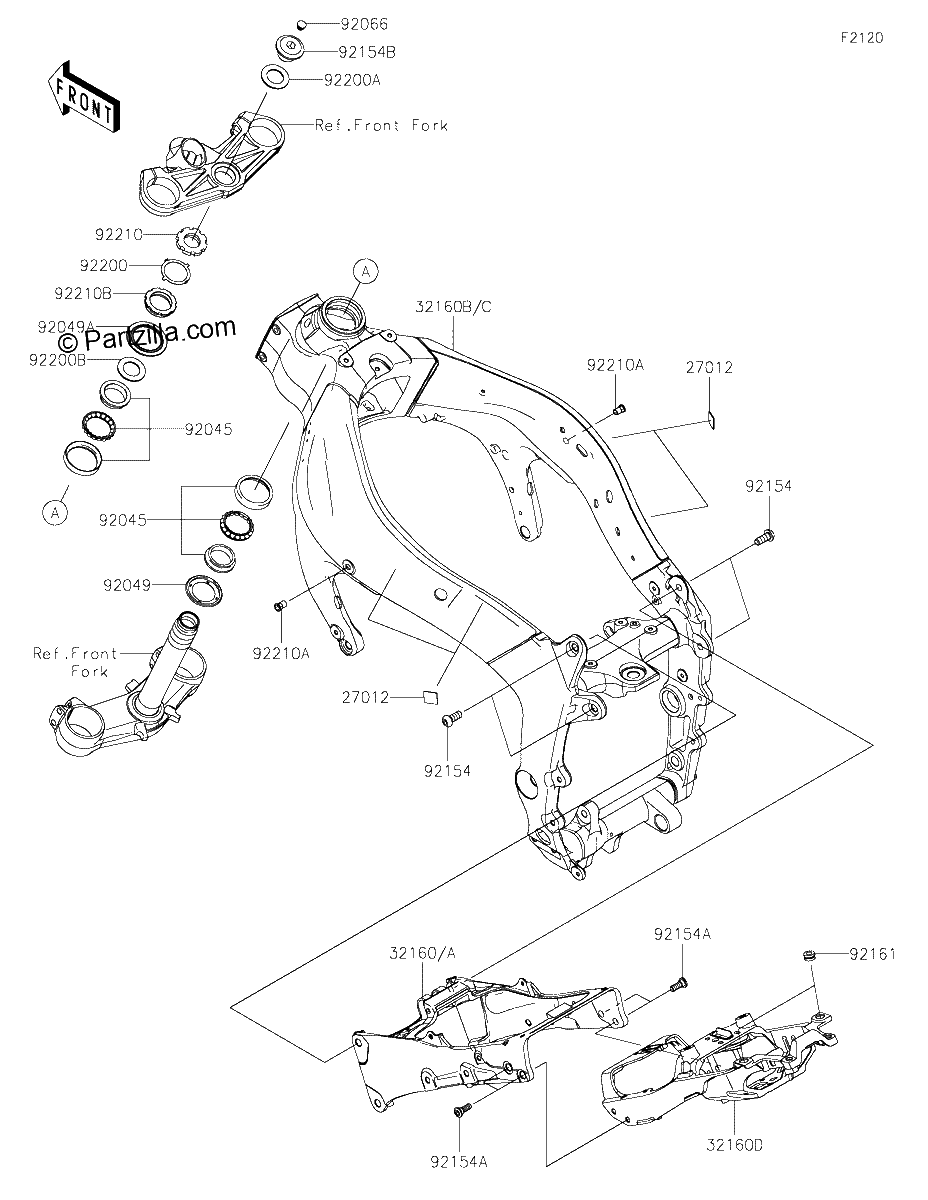

Diagrama de FRAME

Repuestos

#27012
27012-0741
HOOK,30X30X3.2
$7.19¢3 594
1
#32160
32160-0399-18R
FRAME COMP,Rear,Front,F S BLACK
$267.96¢133 981
1
#32160
32160-2058-458
FRAME COMP,Rear,Front,P SILVER
$267.96¢133 981
1
#32160C
32160-1992
FRAME-COMP,RR,RR
$267.10¢133 550
1
#32160D
32160-1992
FRAME-COMP,RR,RR
$267.10¢133 550
1
#32160B
32160-0982-458
FRAME COMP,MAIN,P SILVER
$2106.03¢1 053 015
1
#32160A
32160-0982-458
FRAME COMP,MAIN,P SILVER
$2106.03¢1 053 015
1
#32160A
32160-0982-18R
FRAME-COMP,MAIN,F.S.BLACK
$2106.03¢1 053 015
1
#32160B
32160-0982-18R
FRAME-COMP,MAIN,F.S.BLACK
$2106.03¢1 053 015
1
#32160
32160-0399-458
FRAME-COMP,RR,FR,P.SILVER
No Disponible
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$18.07¢9 033
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92066
92066-0071
PLUG
$2.77¢1 386
1
#92154B
92154-7059
BOLT,26MM
$31.80¢15 899
1
#92154A
92154-1901
BOLT,SOCKET,8X23
$3.29¢1 644
1
#92154
92154-1900
BOLT,SOCKET,10X25
$4.53¢2 266
1
#92161
92161-0056
DAMPER
$2.85¢1 426
1
#92200B
92200-0862
WASHER,36X47X0.6
$3.52¢1 759
1
#92200A
92200-0081
WASHER,27X42X2.3
$3.40¢1 702
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92210A
92210-0099
NUT,6MM
$5.07¢2 536
1
#92210
92210-0062
NUT,STEERING STEM 35MM
$13.52¢6 762
1
#92210B
92210-0823
NUT,35MM
$24.59¢12 293
1
