FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

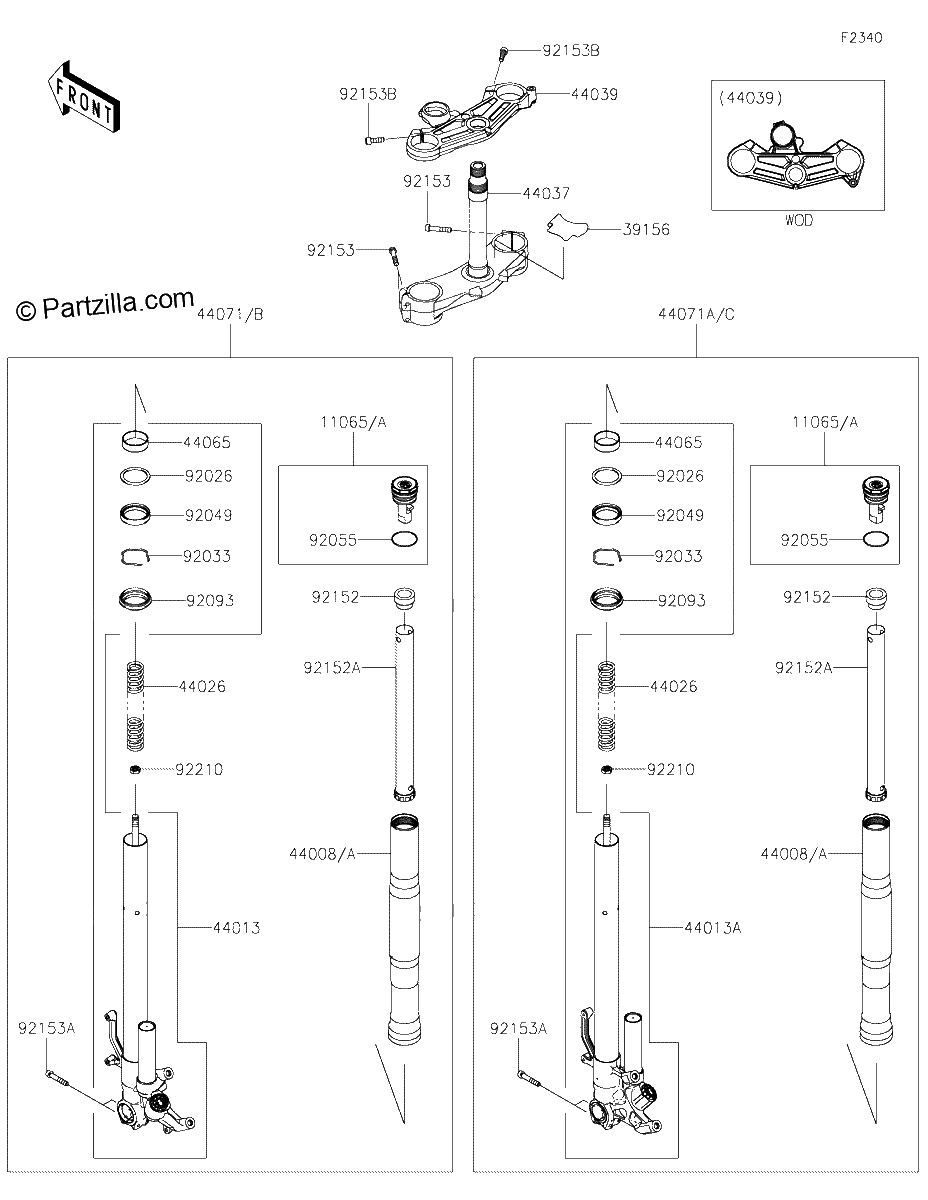

Diagrama de FRONT FORK

Repuestos

#11065
11065-1368
CAP,FORK
$285.23¢142 617
1
#11065
11065-1476
CAP,FORK
$285.23¢142 617
1
#39156
39156-2746
PAD,UNDER BRACKET
$4.27¢2 133
1
#44008
44008-0096
PIPE-FORK OUTER
$490.43¢245 214
1
#44008
44008-0124
PIPE FORK OUTER
$490.43¢245 214
1
#44013
44013-0363
PIPE-FORK INNER,LH
$2796.82¢1 398 412
1
#44013A
44013-0364
PIPE-FORK INNER,RH
$2796.82¢1 398 412
1
#44026
44026-0274
SPRING-FRONT FORK
$81.30¢40 652
1
#44037
44037-0198
HOLDER-FORK UNDER
$640.06¢320 028
1
#44039
44039-0200
HOLDER-FORK UPPER
$273.34¢136 672
1
#44065
44065-0026
BUSHING FRONT FORK
$24.77¢12 385
1
#44071
44071-1648
DAMPER Assembly,FORK,Left Hand
$3499.81¢1 749 903
1
#44071A
44071-1649
DAMPER Assembly,FORK,Right Hand
$3499.81¢1 749 903
1
#44071
44071-1484
DAMPER-ASSY,FORK,LH
$3499.81¢1 749 903
1
#44071A
44071-1485
DAMPER-ASSY,FORK,RH
$3499.81¢1 749 903
1
#92026
92026-0165
SPACER
$3.45¢1 725
1
#92033
92033-1222
RING-SNAP
$5.85¢2 927
1
#92049
92049-0064
SEAL-OIL
$24.49¢12 247
1
#92055
92055-1497
RING-O,FORK CAP
$5.36¢2 680
1
#92093
92093-0042
SEAL,DUST
$24.29¢12 144
1
#92152A
92152-2239
COLLAR
$127.72¢63 860
1
#92152
92152-2238
COLLAR
$61.81¢30 906
1
#92153B
92153-1625
BOLT,SOCKET,8X25
$4.24¢2 122
1
#92153A
92153-0854
BOLT,SOCKET,8X35
$7.16¢3 582
1
#92153
92153-0853
BOLT
$7.16¢3 582
1
#92210
92210-1506
NUT
$3.43¢1 713
1
