COWLING LOWERS KRFAN KRFAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

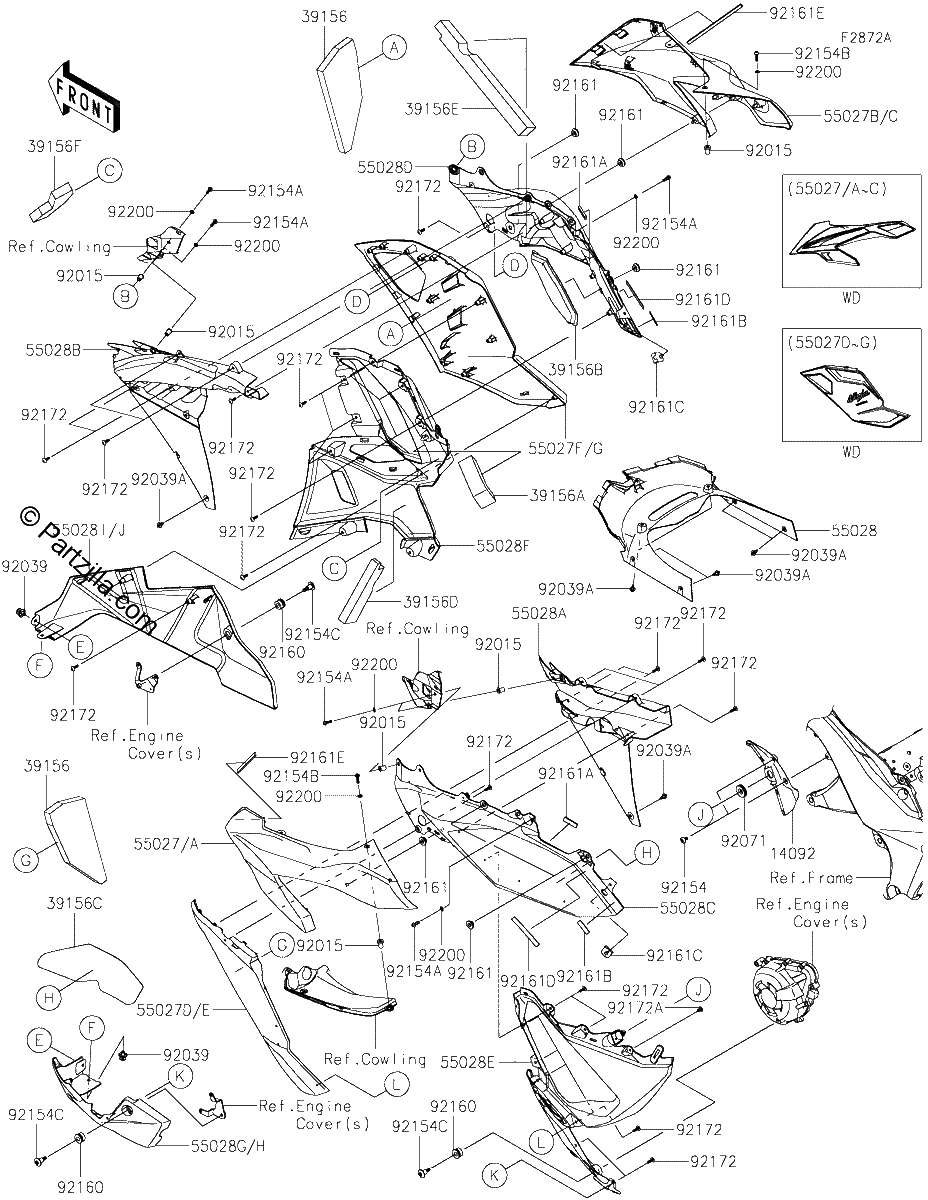

Diagrama de COWLING LOWERS KRFAN KRFAL

Repuestos

#14092
14092-0250
COVER,LH
$18.65¢9 327
1
#39156
39156-2512
PAD,SIDE COWL.
$19.48¢9 741
1
#39156A
39156-2514
PAD,SLAT,UPP,RR
$4.27¢2 133
1
#39156B
39156-2517
PAD,MID SIDE COWL.,RH
$22.09¢11 046
1
#39156C
39156-2518
PAD,MID SIDE COWL.,LH
$22.09¢11 046
1
#39156D
39156-2594
PAD,SLAT,LWR
$22.09¢11 046
1
#39156E
39156-2649
PAD,SLAT,UPP,FR
$9.64¢4 819
1
#39156F
39156-2660
PAD,SLAT,MID
$18.18¢9 091
1
#55027B
55027-5360-53U
COWLING,Upper,SIDE,Right Hand,M M G GRAY
$365.35¢182 677
1
#55027
55027-5357-53U
COWLING,Upper,SIDE,Left Hand,M M G GRAY
$385.71¢192 855
1
#55027
55027-5358-60R
COWLING,UPP,SIDE,LH,E.B.GREEN
No Disponible
1
#55027B
55027-5361-60R
COWLING,UPP,SIDE,RH,E.B.GREEN
No Disponible
1
#55027D
55027-5362-17K
COWLING,SIDE,Left Hand,M D BLACK
$440.43¢220 213
1
#55027D
55027-5363-17K
COWLING,SIDE,Left Hand,M D BLACK
No Disponible
1
#55027F
55027-5364-17K
COWLING,SIDE,Right Hand,M D BLACK
$445.18¢222 588
1
#55027F
55027-5365-17K
COWLING,SIDE,RH,M.D.BLACK
No Disponible
1
#55028I
55028-0743-53U
COWLING,LWR,RH,M.M.G.GRAY
$219.09¢109 543
1
#55028I
55028-0743-68P
COWLING,Lower,Right Hand,M M G GRAY
No Disponible
1
#55028G
55028-0742-53U
COWLING,LWR,LH,M.M.G.GRAY
$212.50¢106 249
1
#55028G
55028-0742-68P
COWLING,Lower,Left Hand,M M G GRAY
No Disponible
1
#55028F
55028-0741
COWLING,SLAT,RH
$141.19¢70 593
1
#55028E
55028-0740
COWLING,SLAT,LH
$158.26¢79 132
1
#55028
55028-0612
COWLING,FR
$90.01¢45 005
1
#55028A
55028-0613
COWLING,INNER,LH
$85.23¢42 613
1
#55028B
55028-0614
COWLING,INNER,RH
$83.79¢41 894
1
#55028C
55028-0738-17K
COWLING,SIDE,MID,LH,M.D.BLACK
$284.28¢142 140
1
#55028D
55028-0739-17K
COWLING,SIDE,MID,RH,M.D.BLACK
$254.09¢127 046
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92039A
92039-0068
RIVET
$2.51¢1 254
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92154B
92154-0919
BOLT,SOCKET,5X20
No Disponible
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154C
92154-2317
BOLT,SOCKET,6X24
$7.70¢3 852
1
#92160
92160-1141
DAMPER
$3.89¢1 943
1
#92161
92161-1531
DAMPER
$2.53¢1 265
1
#92161A
92161-1887
DAMPER,10X35X4
$0.91¢454
1
#92161B
92161-1889
DAMPER,10X35X1
$0.75¢374
1
#92161C
92161-1891
DAMPER,HOOK
$5.99¢2 996
1
#92161D
92161-1964
DAMPER,10X85X1
$2.79¢1 397
1
#92161E
92161-1966
DAMPER,7X190X4
$2.59¢1 294
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.00¢500
1
#92172A
92172-0335
SCREW,TAPPING,5X10
$1.87¢937
1
#92200
92200-1820
WASHER,5.2X10X1.0
$0.71¢357
1
