ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

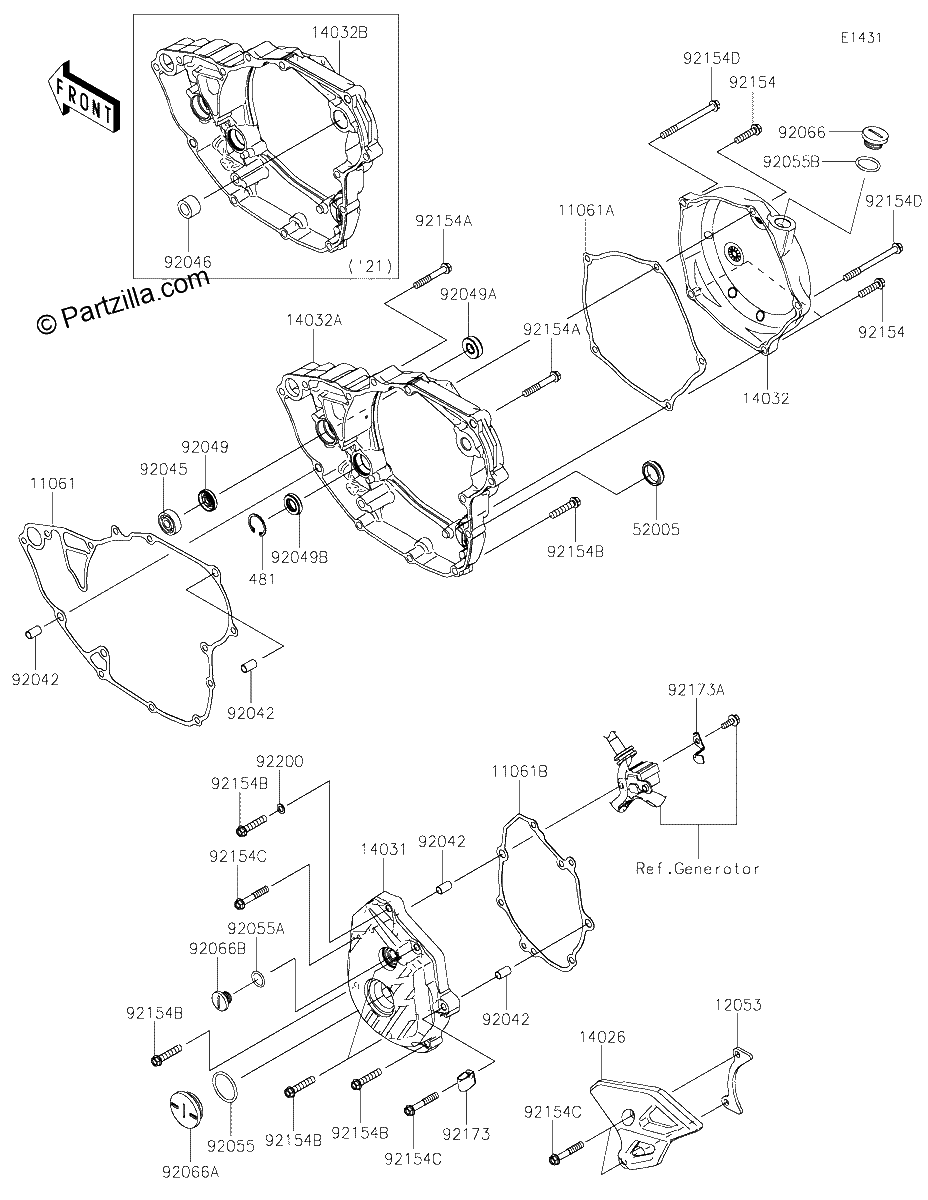

Diagrama de ENGINE COVER S

Repuestos

#481
481J2200
CIRCLIP-TYPE-C,22MM
$0.98¢489
1
#11061
11061-1375
GASKET,INNER
$22.07¢11 034
1
#11061A
11061-1376
GASKET,OUTER
$20.57¢10 287
1
#11061B
11061-1377
GASKET,GENERATOR
$14.98¢7 492
1
#12053
12053-0258
GUIDE CHAIN
$6.14¢3 070
1
#14026
14026-0144
COVER CHAIN
$24.59¢12 293
1
#14031
14031-0651
COVER GENERATOR
$235.36¢117 679
1
#14032B
14032-0695
COVER CLUTCH,INNER
$273.44¢136 718
1
#14032A
14032-0686
COVER-CLUTCH,INNER
$270.93¢135 464
1
#14032
14032-0672
COVER-CLUTCH,OUTER
$151.42¢75 710
1
#52005
52005-0019
GAUGE,OIL LEVEL
$13.42¢6 710
1
#92042
92042-007
PIN,DOWEL,6.3X8X14
$5.16¢2 582
1
#92045
92045-1123
BEARING-BALL,#628
$22.56¢11 282
1
#92046
92046-0642
BEARING-NEEDLE,NK12X19X12-15
$39.34¢19 671
1
#92049B
92049-0762
SEAL OIL,TVCX13X22X5.5
$16.19¢8 096
1
#92049A
92049-0061
SEAL OIL
$10.75¢5 376
1
#92049
92049-0060
SEAL OIL,SD 8 22 5 ZS
$10.75¢5 376
1
#92055B
92055-1146
RING-O,20X2
$7.84¢3 922
1
#92055A
92055-1011
RING O,13.0X1.9
$6.97¢3 484
1
#92055
92055-091
RING O,27.7X2.4
$5.60¢2 800
1
#92066B
92066-0971
PLUG,12X9.1
$21.50¢10 753
1
#92066A
92066-0970
PLUG,30X8
$32.88¢16 439
1
#92066
92066-0969
PLUG,18X9
$22.36¢11 178
1
#92154D
92154-2981
BOLT,FLANGED,6X70
$1.31¢655
1
#92154C
92154-2978
BOLT,FLANGED,6X35
$0.91¢454
1
#92154B
92154-2977
BOLT,FLANGED,6X30
$0.91¢454
1
#92154A
92154-2968
BOLT,6X40
$0.95¢477
1
#92154
92154-2967
BOLT,FLANGED,6X25
$0.91¢454
1
#92173A
92173-1855
CLAMP
$3.78¢1 892
1
#92173
92173-1828
CLAMP
$2.59¢1 294
1
#92200
92200-0190
WASHER,6.1X10.0X1.0
$2.22¢1 110
1
