CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

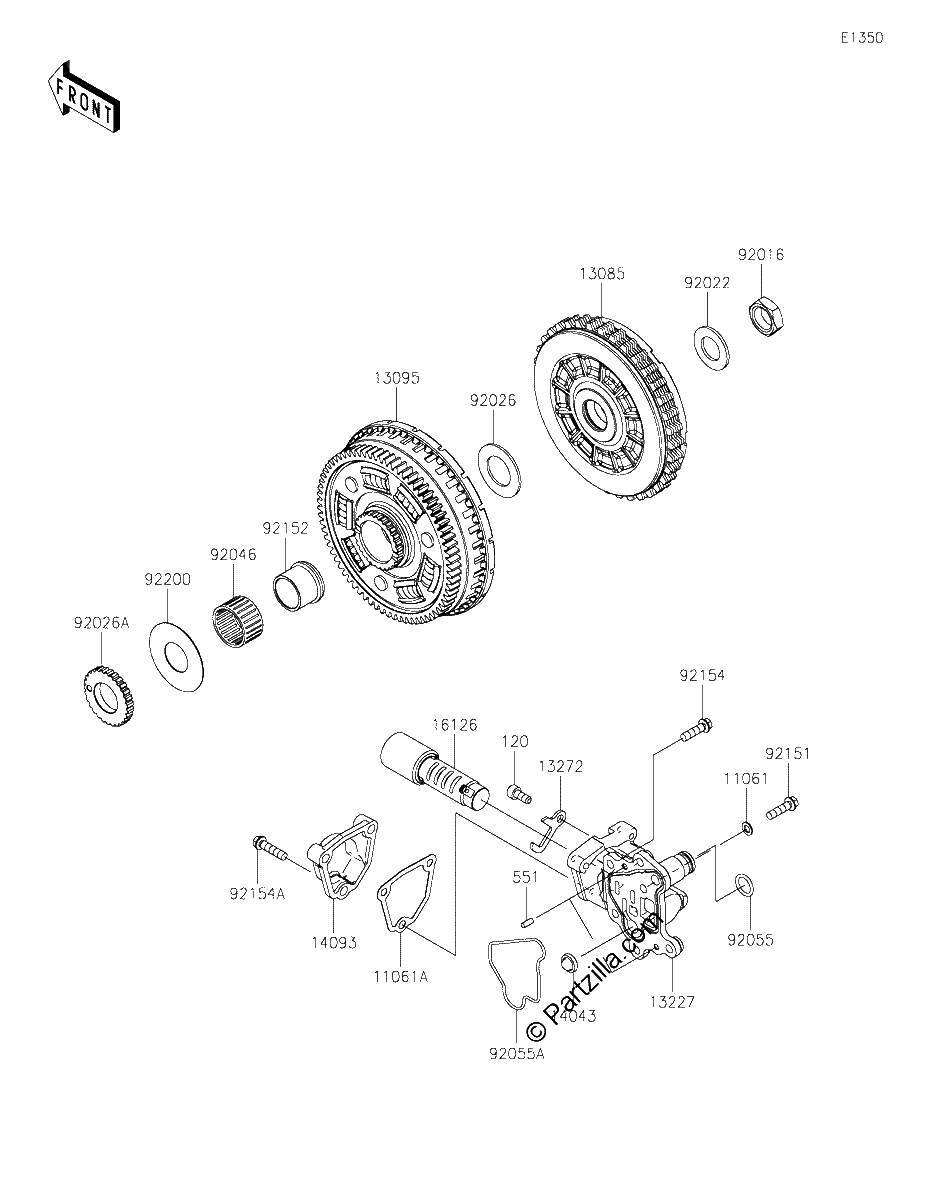

Diagrama de CLUTCH

Repuestos

#120
120CA0614
BOLT SOCKET,6X14
$4.30¢2 150
1
#551
551A0410
PIN-DOWEL,4X10
$0.74¢369
1
#11061
11061-0875
GASKET,DRAIN
$5.53¢2 763
1
#11061A
11061-1441
GASKET,VALVE COVER
$5.65¢2 825
1
#13085
13085-0170
PLATE Assembly CLUTCH
$1208.49¢604 244
1
#13095
13095-0616
HOUSING-COMP-CLUTCH
$681.11¢340 556
1
#13227
13227-0714
HOUSING
$153.75¢76 875
1
#13272
13272-4021
PLATE,VALVE
$10.10¢5 050
1
#14043
14043-0009
FILTER,ELEMENT
$12.24¢6 119
1
#14093
14093-1285
COVER,VALVE
$61.04¢30 519
1
#16126
16126-0774
VALVE
$404.84¢202 419
1
#92016
92016-028
NUT,20MM
$9.83¢4 913
1
#92022
92022-1116
WASHER,20.3X36X2.3
$8.53¢4 263
1
#92026A
92026-0926
SPACER
$99.56¢49 781
1
#92026
92026-0734
SPACER,25.5X44.5X2
$6.75¢3 375
1
#92046
92046-1171
BEARING NEEDLE,K30X35X20
$24.69¢12 344
1
#92055A
92055-1730
RING O,HOUSING
$9.63¢4 813
1
#92055
92055-0848
RING-O,13.8MM
No Disponible
1
#92151
92151-1936
BOLT,6X22
No Disponible
1
#92152
92152-2905
COLLAR
$61.01¢30 506
1
#92154A
92154-0819
BOLT,FLANGED,6X25
$2.16¢1 081
1
#92154
92154-0794
BOLT,FLANGED,6X22
$1.95¢975
1
#92200
92200-2539
WASHER,25.1X58X0.8
$4.13¢2 063
1
