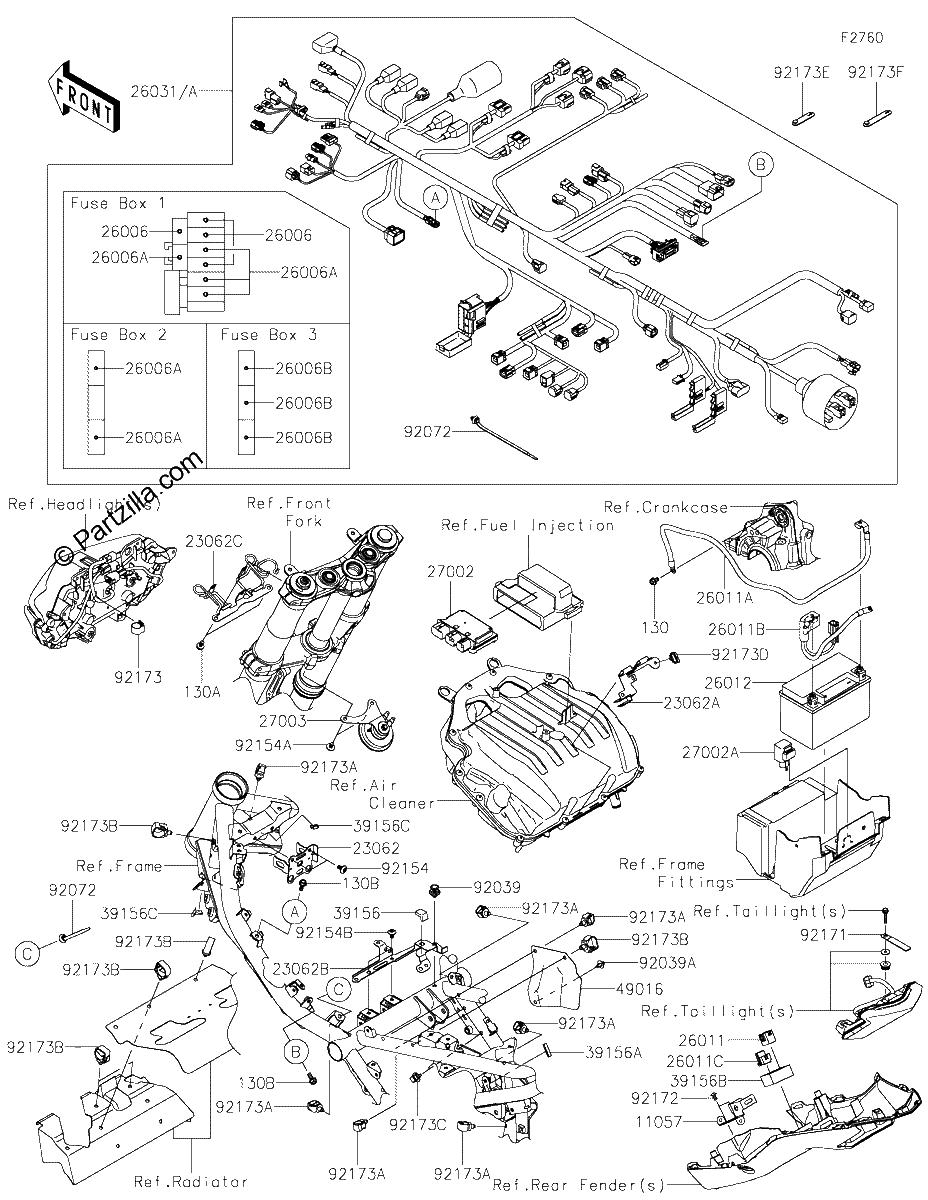

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
#130B
BOLT FLANGED,6X16
$1.26¢631
#11057
BRACKET,RELAY
$6.01¢3 006
#23062
BRACKET-COMP,V.D. SENSOR
$15.41¢7 706
#23062A
BRACKET-COMP,A/C BOX
$11.55¢5 775
#23062B
BRACKET COMP,HARNESS
$15.65¢7 825
#23062C
BRACKET COMP
$29.25¢14 625
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,7.5A,BROWN
$6.69¢3 344
#26006B
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
#26011
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
#26011A
WIRE-LEAD,BATTERY(-)
$100.21¢50 106
#26011B
WIRE-LEAD,BATTERY(+)
$107.00¢53 500
#26011C
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
#26012
BATTERY,FTX9-BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$792.04¢396 019
#26031
HARNESS,MAIN
$792.04¢396 019
#27002
RELAY Assembly
$162.96¢81 481
#27002A
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
#27003
HORN
$82.90¢41 450
#39156B
PAD,DIAG CONNECTOR
$5.16¢2 581
#39156C
PAD,20X20X1
$0.71¢356
#39156A
PAD,28X17X1
$0.84¢419
#39156
PAD,25X25X2
$1.31¢656
#49016
COVER SEAL,ABS CONNECTOR
$6.56¢3 281
#92039A
RIVET
$2.48¢1 238
#92039
RIVET,HOLE 8MM
$2.97¢1 487
#92072
BAND
$3.70¢1 850
#92154A
BOLT,SOCKET,6X10
$1.24¢619
#92154B
BOLT,SOCKET,6X10
$1.63¢813
#92154
BOLT,SOCKET,6X12
$1.86¢931
#92171
CLAMP,L=60
$2.41¢1 206
#92172
SCREW,5X10
$1.35¢675
#92173A
CLAMP,12MM DIA.
$5.01¢2 506
#92173B
CLAMP
$2.75¢1 375
#92173C
CLAMP,CABLE CLIP
$1.63¢813
#92173D
CLAMP,CLIP,TAIL LAMP,ETC
$1.55¢775
#92173E
CLAMP
$1.55¢775
#92173
CLAMP,CLIP
$17.30¢8 650
#92173F
CLAMP
$1.55¢775
