FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

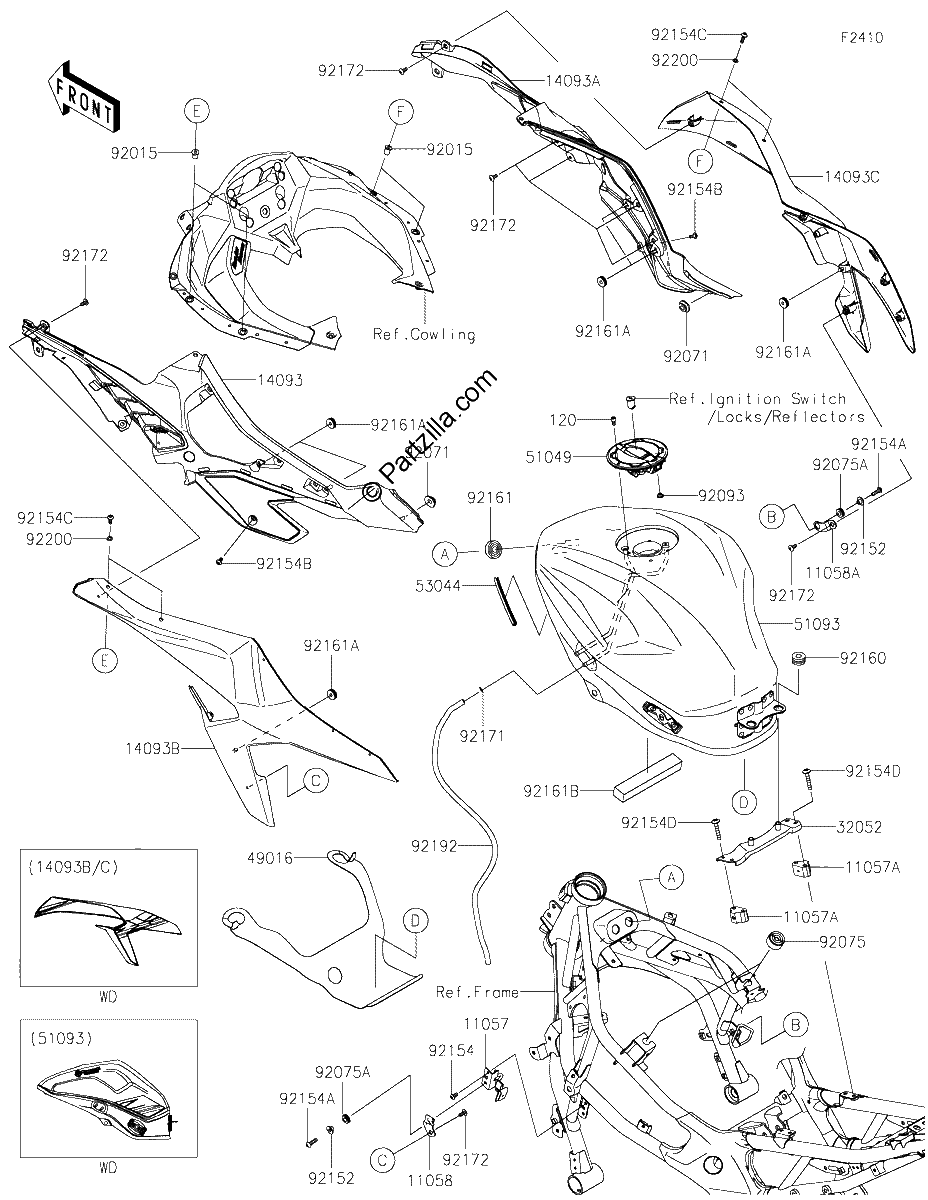

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#11057
11057-2917
BRACKET,KNEE GRIP COVER
$9.53¢4 767
1
#11057A
11057-7937
BRACKET
$21.87¢10 936
1
#11058
11058-0610
BRACKET,KNEE GRIP COVER,Left Hand
$2.85¢1 426
1
#11058A
11058-1068
BRACKET,KNEE GRIP COVER,Right Hand
$3.96¢1 978
1
#14093
14093-0962
COVER,KNEE GRIP,INNER,Left Hand
$141.16¢70 581
1
#14093C
14093-5453-H8
COVER,KNEE GRIP,OUTER,Right Hand,EBONY
$347.28¢173 639
1
#14093B
14093-5404-H8
COVER,KNEE GRIP,OUTER,Left Hand,EBONY
$303.77¢151 886
1
#14093A
14093-0964
COVER,KNEE GRIP,INNER,Right Hand
$141.16¢70 581
1
#32052
32052-0824
BRACKET TANK
$15.29¢7 648
1
#49016
49016-0702
COVER SEAL
$16.81¢8 407
1
#51049
51049-0756
CAP-TANK,FUEL
$160.05¢80 023
1
#51093
51093-5067-777
TANK COMP FUEL,L GREEN
$1189.12¢594 561
1
#53044
53044-0627
TRIM,105MM
$2.81¢1 403
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92071
92071-0766
GROMMET,20X24X7.5
$1.31¢655
1
#92075
92075-015
DAMPER
$4.57¢2 283
1
#92075A
92075-161
DAMPER
$4.28¢2 139
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152
92152-0017
COLLAR
$2.37¢1 185
1
#92154C
92154-4294
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-2107
BOLT,SOCKET,5X18
$1.84¢920
1
#92154D
92154-4487
BOLT,SOCKET,6X30
$1.72¢862
1
#92154B
92154-2548
BOLT,SOCKET,5X10
$1.37¢684
1
#92154
92154-1691
BOLT,SOCKET,5X10
$1.43¢713
1
#92160
92160-1162
DAMPER
$4.57¢2 283
1
#92161A
92161-1911
DAMPER,6X19X5.6
$0.91¢454
1
#92161B
92161-2305
DAMPER,150X25X20
$8.61¢4 307
1
#92161
92161-1791
DAMPER,10X32X8
$2.02¢1 012
1
#92171
92171-1973
CLAMP,8X0.7
$1.24¢621
1
#92172
92172-0821
SCREW,5X12
$0.87¢437
1
#92192
92192-2278
TUBE,DRAIN,1.5X6X685
$3.91¢1 955
1
#92200
92200-1730
WASHER,5.2X10X0.5
$0.71¢357
1
