IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

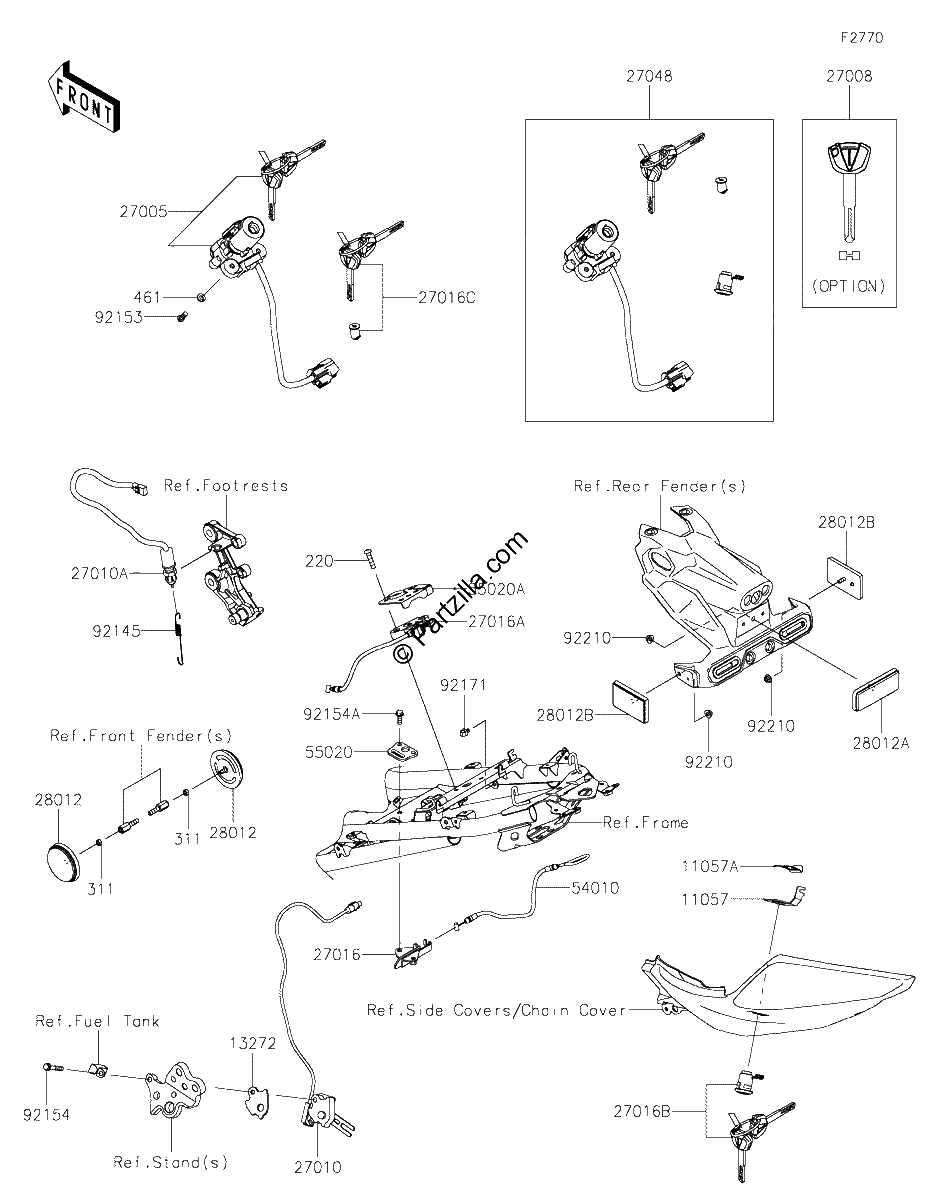

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#220
220AC0625
SCREW-PAN-CROS,6X25
$1.29¢644
1
#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#461
461DA0600
WASHER SPRING,6MM
$0.85¢425
1
#11057
11057-7033
BRACKET,SEAT LOCK
$4.60¢2 300
1
#11057A
11057-7740
BRACKET,SEAT LOCK,Upper
$2.06¢1 031
1
#13272
13272-1330
PLATE
$3.67¢1 838
1
#27005
27005-0717
SWITCH Assembly IGNITION
$227.30¢113 650
1
#27008
27008-0662
KEY-LOCK,BLANK
$32.85¢16 425
1
#27010
27010-0845
SWITCH,SIDE STAND
$150.31¢75 156
1
#27010A
27010-0863
SWITCH,STOP
$34.93¢17 463
1
#27016
27016-0008
LOCK Assembly,SEAT STRIKER
$16.55¢8 275
1
#27016C
27016-5431
LOCK Assembly,TANK CAP
$155.06¢77 531
1
#27016B
27016-5430
LOCK Assembly,SEAT
$171.38¢85 688
1
#27016A
27016-0025
LOCK-ASSY,SEAT STRIKER
$32.69¢16 344
1
#27048
27048-5277
SWITCH Assembly
$526.36¢263 181
1
#28012B
28012-1088
REFLECTOR REFLEX
$23.64¢11 819
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#28012A
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#54010
54010-0621
CABLE
$11.71¢5 856
1
#55020A
55020-2259
GUARD,SEAT STRIKER
$6.95¢3 475
1
#55020
55020-2246
GUARD,SEAT STRIKER
$11.49¢5 744
1
#92145
92145-0683
SPRING,BRAKE LAMP SWITCH
$3.64¢1 819
1
#92153
92153-1426
BOLT,TORX,6X16
$4.11¢2 056
1
#92154A
92154-3869
BOLT,FLANGED-SMALL,6X16,TB2468
$2.13¢1 063
1
#92154
92154-1009
BOLT,FLANGED,6X35
$3.14¢1 569
1
#92171
92171-0939
CLAMP
$4.60¢2 300
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
