IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

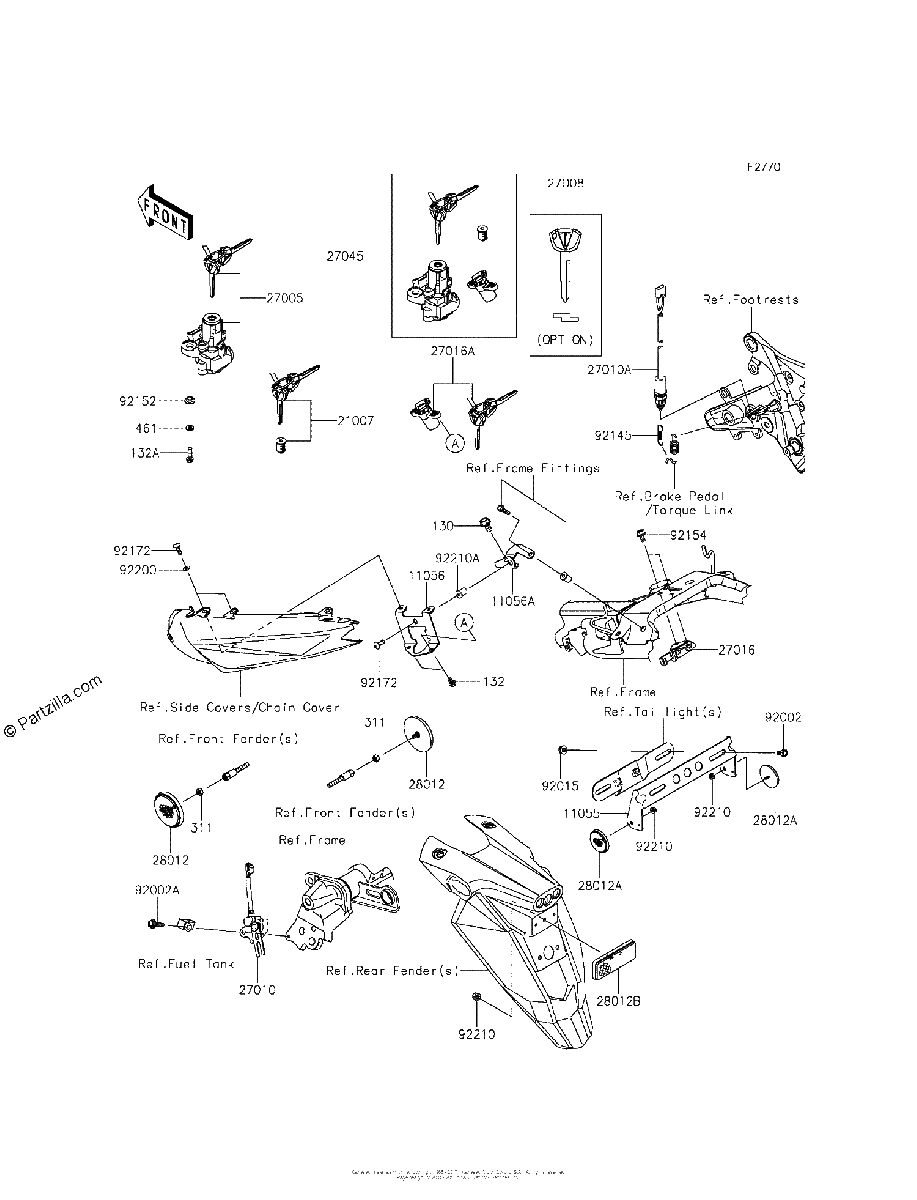

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#130
130BA0814
BOLT FLANGED,8X14
$1.84¢920
1
#132
132BA0608
BOLT FLANGED SMALL,6X8
$2.12¢1 058
1
#132A
132BA0620
BOLT-FLANGED-SMALL,6X20
$2.12¢1 058
1
#311
311AB0500
NUT HEX,5MM
$0.55¢276
1
#461
461DA0600
WASHER SPRING,6MM
$0.78¢391
1
#11055
11055-1092
BRACKET,REFLECTOR
$37.33¢18 665
1
#11056
11056-1923
BRACKET
$9.04¢4 520
1
#11056A
11056-1924
BRACKET
$5.84¢2 921
1
#21007
21007-5068
ROTOR,LOCK,TANK CAP
$97.86¢48 932
1
#27005
27005-0552
SWITCH-ASSY-IGNITION
$211.20¢105 599
1
#27008
27008-0069
KEY LOCK,BLANK
$23.53¢11 765
1
#27010
27010-0722
SWITCH,SIDE STAND
$135.77¢67 885
1
#27010A
27010-0723
SWITCH,REAR BRAKE
$32.69¢16 347
1
#27016
27016-0008
LOCK Assembly,SEAT STRIKER
$15.23¢7 613
1
#27016A
27016-5372
LOCK Assembly,SEAT
$100.11¢50 054
1
#27045
27045-5452
SWITCH-ASSY
$480.79¢240 396
1
#28012B
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$23.47¢11 736
1
#28012A
28012-0002
REFLECTOR REFLEX
$23.47¢11 736
1
#92002A
92002-1582
BOLT,FLANGED,6X25
$4.48¢2 242
1
#92002
92002-1132
BOLT,6X12
$1.37¢684
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92145
92145-0724
SPRING,REAR BRAKE SWITCH
No Disponible
1
#92152
92152-1535
COLLAR,6.15X10.15X6
$3.40¢1 702
1
#92154
92154-1050
BOLT,FLANGED,6X12
$1.81¢903
1
#92172
92172-0322
SCREW,5X16
$1.87¢937
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.44¢719
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
#92210A
92210-0498
NUT,WELL,5MM
$6.68¢3 341
1
