FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

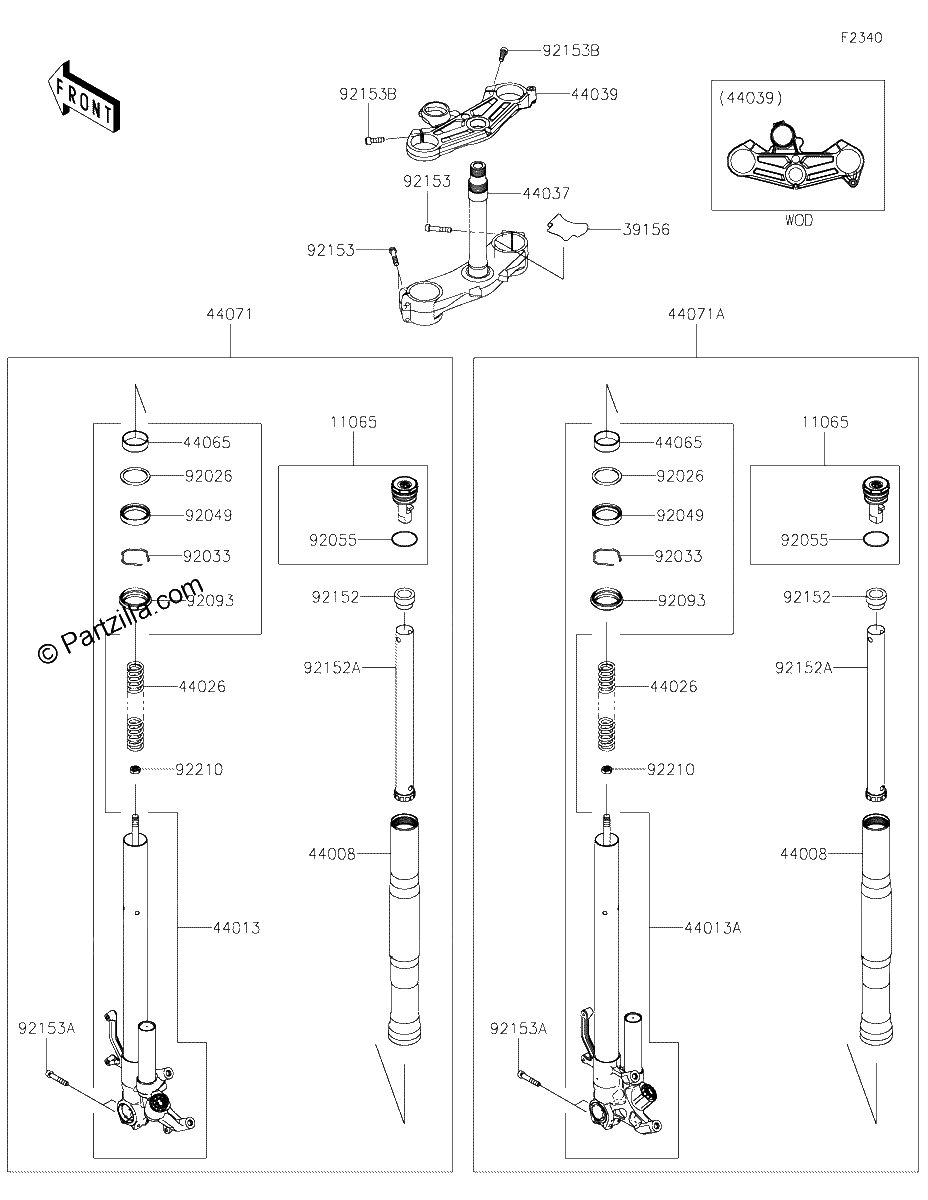

Diagrama de FRONT FORK

Repuestos

#11065
11065-1368
CAP,FORK
$310.04¢155 019
1
#11065
11065-1476
CAP,FORK
$310.04¢155 019
1
#39156
39156-2746
PAD,UNDER BRACKET
$4.64¢2 319
1
#44008
44008-0096
PIPE-FORK OUTER
$533.07¢266 537
1
#44008
44008-0124
PIPE FORK OUTER
$533.07¢266 537
1
#44013
44013-0363
PIPE-FORK INNER,LH
$3040.03¢1 520 013
1
#44013A
44013-0364
PIPE-FORK INNER,RH
$3040.03¢1 520 013
1
#44026
44026-0274
SPRING-FRONT FORK
$88.38¢44 188
1
#44037
44037-0198
HOLDER-FORK UNDER
$695.71¢347 856
1
#44039
44039-0200
HOLDER-FORK UPPER
$297.11¢148 556
1
#44065
44065-0026
BUSHING FRONT FORK
$26.92¢13 462
1
#44071
44071-1648
DAMPER Assembly,FORK,Left Hand
$3804.14¢1 902 069
1
#44071A
44071-1649
DAMPER Assembly,FORK,Right Hand
$3804.14¢1 902 069
1
#44071
44071-1484
DAMPER-ASSY,FORK,LH
$3804.14¢1 902 069
1
#44071A
44071-1485
DAMPER-ASSY,FORK,RH
$3804.14¢1 902 069
1
#92026
92026-0165
SPACER
$3.75¢1 875
1
#92033
92033-1222
RING-SNAP
$6.36¢3 181
1
#92049
92049-0064
SEAL-OIL
$26.63¢13 313
1
#92055
92055-1497
RING-O,FORK CAP
$5.83¢2 913
1
#92093
92093-0042
SEAL,DUST
$26.40¢13 200
1
#92152A
92152-2239
COLLAR
$138.82¢69 413
1
#92152
92152-2238
COLLAR
$67.19¢33 594
1
#92153B
92153-1625
BOLT,SOCKET,8X25
$4.61¢2 306
1
#92153A
92153-0854
BOLT,SOCKET,8X35
$7.79¢3 894
1
#92153
92153-0853
BOLT
$7.79¢3 894
1
#92210
92210-1506
NUT
$3.73¢1 863
1
