SIDE COVERS CHAIN COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

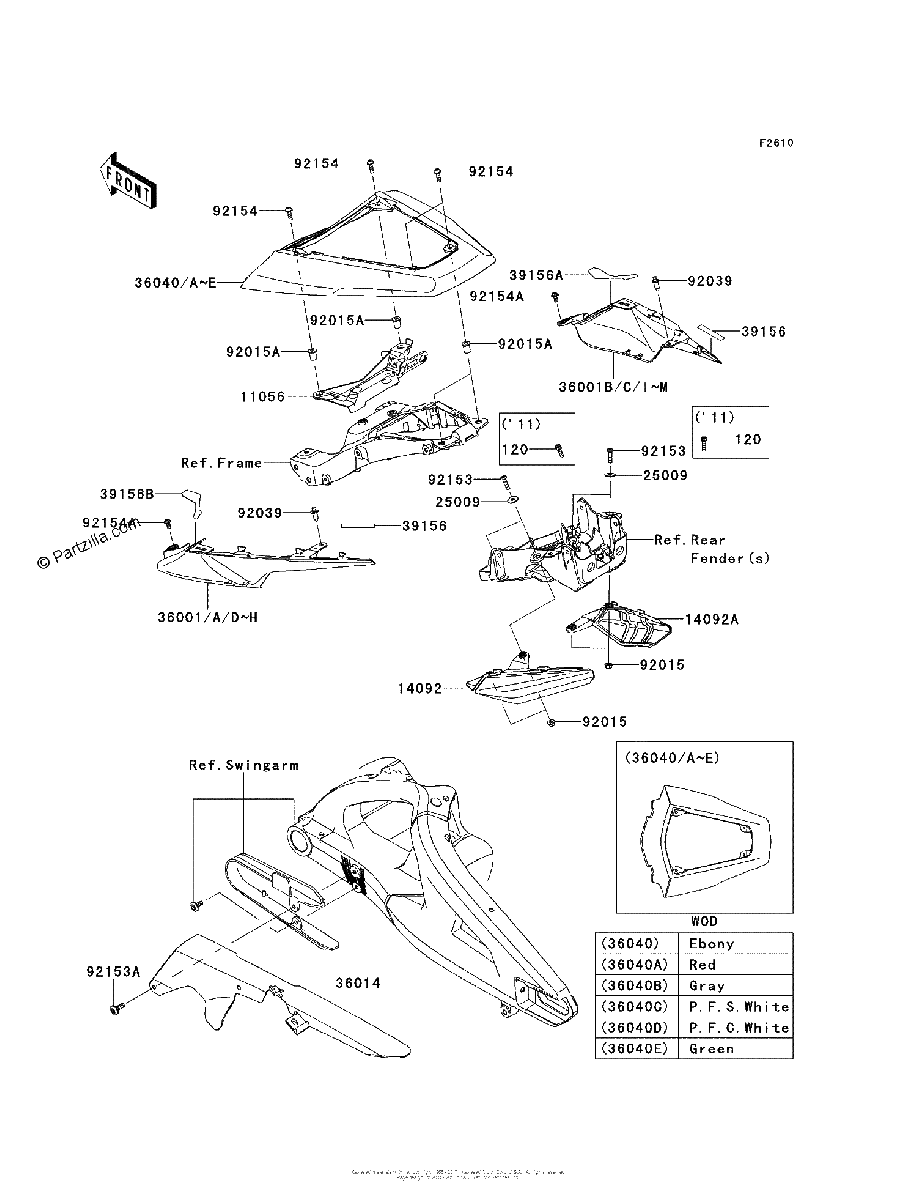

Diagrama de SIDE COVERS CHAIN COVER

Repuestos

#120
120CA0516
BOLT-SOCKET,5X16
$1.95¢977
1
#11056
11056-0601
BRACKET
$22.47¢11 235
1
#14092
14092-0784
COVER,Rear SIGNAL,Left Hand
$15.77¢7 883
1
#14092A
14092-0785
COVER,Rear SIGNAL,Right Hand
$15.77¢7 883
1
#25009
25009-004
WASHER,5.2X16X1.2
$3.36¢1 679
1
#36001B
36001-0581-777
COVER SIDE,TAIL,Right Hand,L GREEN
$116.84¢58 420
1
#36001
36001-0580-234
COVER SIDE,TAIL,Left Hand,P RED
$127.24¢63 618
1
#36001
36001-0206-777
COVER-SIDE,TAIL,LH,L.GREEN
No Disponible
1
#36001
36001-0206-H8
COVER SIDE,TAIL,Left Hand,EBONY
No Disponible
1
#36001B
36001-0207-777
COVER SIDE,TAIL,Right Hand,L GREEN
No Disponible
1
#36001B
36001-0207-H8
COVER SIDE,TAIL,Right Hand,EBONY
No Disponible
1
#36001
36001-0580-33P
COVER SIDE,TAIL,Left Hand,M F P GRAY
$127.24¢63 618
1
#36001B
36001-0581-45L
COVER SIDE,TAIL,Right Hand,F EBONY
$116.84¢58 420
1
#36001
36001-0580-40X
COVER SIDE,TAIL,Left Hand,P F S WHITE
$116.84¢58 420
1
#36001G
36001-0580-45L
COVER SIDE,TAIL,Left Hand,F EBONY
$116.84¢58 420
1
#36001
36001-0580-45L
COVER SIDE,TAIL,Left Hand,F EBONY
$116.84¢58 420
1
#36001
36001-0580-777
COVER SIDE,TAIL,Left Hand,L GREEN
$116.84¢58 420
1
#36001B
36001-0581-234
COVER SIDE,TAIL,Right Hand,P RED
$127.24¢63 618
1
#36001B
36001-0581-33P
COVER SIDE,TAIL,Right Hand,M F P GRAY
$127.24¢63 618
1
#36001B
36001-0581-40X
COVER SIDE,TAIL,Right Hand,P F S WHITE
$116.84¢58 420
1
#36001L
36001-0581-45L
COVER SIDE,TAIL,Right Hand,F EBONY
$116.84¢58 420
1
#36014
36014-0062
CASE CHAIN
$25.32¢12 661
1
#36040
36040-0124-33P
COVER TAIL,M F P GRAY
$251.19¢125 597
1
#36040
36040-0124-40X
COVER TAIL,P F S WHITE
$244.23¢122 113
1
#36040D
36040-0124-46K
COVER TAIL,P F C WHITE
$246.70¢123 349
1
#36040
36040-0124-46K
COVER TAIL,P F C WHITE
$246.70¢123 349
1
#36040
36040-0124-777
COVER TAIL,L GREEN
$246.66¢123 332
1
#36040E
36040-0124-777
COVER TAIL,L GREEN
$246.66¢123 332
1
#36040
36040-0124-H8
COVER TAIL,EBONY
$251.19¢125 597
1
#36040
36040-0124-234
COVER TAIL,P RED
$251.19¢125 597
1
#39156
39156-0712
PAD,10X50X0.2
$1.18¢592
1
#39156A
39156-0743
PAD,SIDE COVER,Right Hand
$2.86¢1 432
1
#39156B
39156-0744
PAD,SIDE COVER,LH
$2.86¢1 432
1
#92015
92015-1752
NUT,LOCK,FLANGED,5MM
$3.94¢1 972
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92153
92153-0370
BOLT,SOCKET,5X18
$1.79¢897
1
#92153A
92153-0422
BOLT,SOCKET,6X14
$2.07¢1 035
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-0211
BOLT,SOCKET,5X10
$1.84¢920
1
