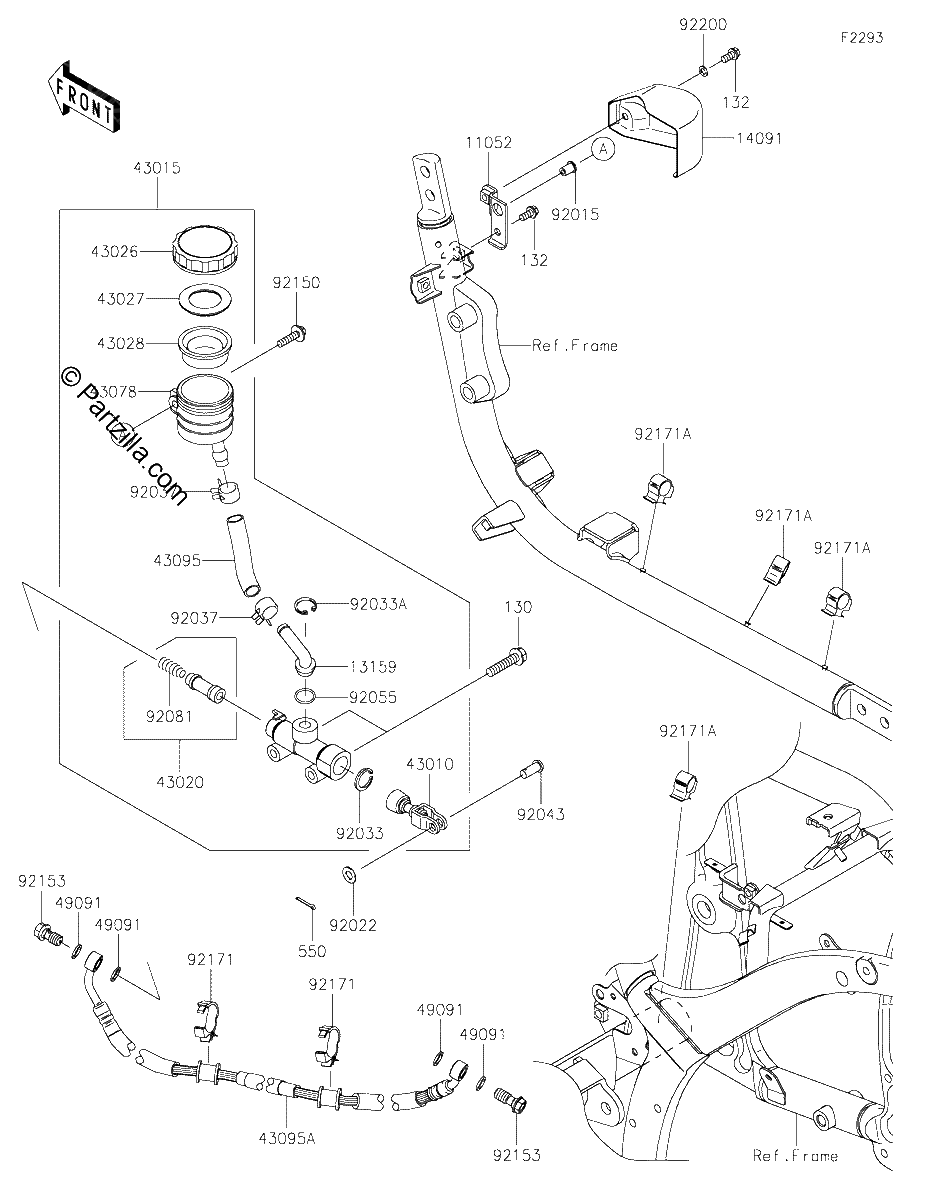

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT-FLANGED,8X35
$4.41¢2 206
#132
BOLT-FLANGED-SMALL,6X12
$1.94¢969
#550
PIN COTTER,2.0X15
$1.17¢587
#11052
BRACKET,RESERVOIR TANK
$10.70¢5 350
#13159
CONNECTOR,RR MASTER CYLINDER
$15.67¢7 837
#14091
COVER,RESERVOIR TANK,F S BLACK
$85.02¢42 512
#43010
ROD Assembly BRAKE
$58.34¢29 169
#43015
CYLINDER-ASSY-MASTER,RR
$332.08¢166 038
#43020
PISTON-COMP-BRAKE
$74.31¢37 156
#43026
CAP BRAKE
$38.94¢19 469
#43027
PLATE DIAPHRAGM
$5.26¢2 631
#43028
DIAPHRAGM,MASTER CYLINDER
$18.76¢9 381
#43078
RESERVOIR,Rear MASTER CYLINDER
$28.79¢14 394
#43095
HOSE-BRAKE,RR MASTER CYLINDER
$17.90¢8 950
#43095A
HOSE-BRAKE,RR
$161.90¢80 950
#49091
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
#92015
NUT
$8.53¢4 263
#92022
WASHER,8.5X16X1.2
$1.05¢525
#92033A
RING-SNAP,20.5MM
$4.92¢2 463
#92033
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
#92037
CLAMP,BRAKE HOSE
$13.83¢6 913
#92043
PIN,8X16
$9.83¢4 913
#92055
RING O,14.8X2.4
$3.67¢1 838
#92081
SPRING,MASTER CYLINDER
$13.69¢6 844
#92150
BOLT,6X25
$4.50¢2 250
#92153
BOLT,OIL,L=23
$3.89¢1 944
#92171A
CLAMP,15MM DIA.
$4.16¢2 081
#92171
CLAMP
$3.89¢1 944
#92200
WASHER,6.2X10X1
$1.56¢781
