CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

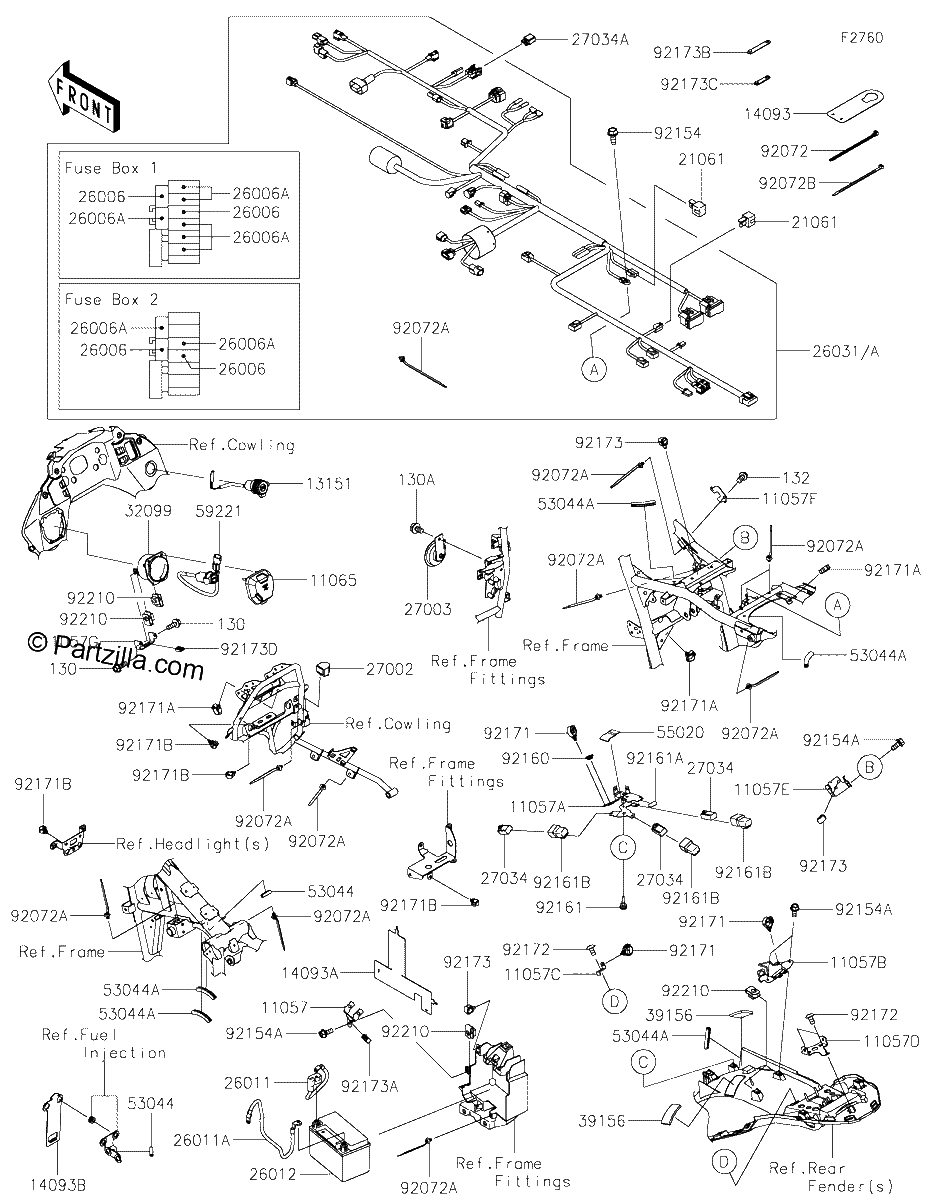

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0514
BOLT-FLANGED,5X14
$1.78¢891
1
#130A
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
1
#132
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.78¢891
1
#11057
11057-4292
BRACKET,MAGNETIC SWITCH
$5.04¢2 519
1
#11057G
11057-4390
BRACKET
$3.36¢1 679
1
#11057B
11057-4298
BRACKET,RR HARNESS
$12.74¢6 371
1
#11057C
11057-4301
BRACKET,HARNESS GUIDE
$1.31¢655
1
#11057D
11057-4302
BRACKET,ECU
$4.20¢2 099
1
#11057E
11057-4378
BRACKET,RR SPEED SENSOR
$5.24¢2 622
1
#11057F
11057-4379
BRACKET,OXYGEN SENSOR
$2.28¢1 138
1
#11057A
11057-4295
BRACKET,FUSE BOX
$6.34¢3 168
1
#11065
11065-1425
CAP,USB
$18.53¢9 263
1
#13151
13151-0566
SWITCH-COMP,DC SOCKET
$174.19¢87 095
1
#14093
14093-1044
COVER,IGNITION SWITCH
$10.51¢5 256
1
#14093A
14093-1197
COVER,MAGNETIC SWITCH
$14.04¢7 021
1
#14093B
14093-1214
COVER
$10.51¢5 256
1
#21061
21061-1003
RECTIFIER
$32.69¢16 347
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26011
26011-1936
WIRE LEAD,BATTERY(+)
$42.84¢21 419
1
#26011A
26011-1937
WIRE LEAD,BATTERY( )
$44.92¢22 460
1
#26012
26012-0608
BATTERY,FTX9-BS,12V 8AH
No Disponible
1
#26031
26031-3900
HARNESS,MAIN
$867.78¢433 889
1
#26031
26031-3901
HARNESS,MAIN
$867.78¢433 889
1
#27002
27002-0031
RELAY-ASSY,TURN SIGNAL
$26.10¢13 052
1
#27003
27003-0163
HORN
$78.18¢39 088
1
#27034
27034-0012
RELAY
$41.16¢20 579
1
#27034A
27034-0014
RELAY
$40.28¢20 142
1
#32099
32099-0822
CASE,USB
$14.48¢7 239
1
#39156
39156-2694
PAD,30X55X5
$1.40¢701
1
#53044A
53044-0032
TRIM,L=60
$7.99¢3 996
1
#53044
53044-0001
TRIM,L=30
$2.46¢1 231
1
#55020
55020-2334
GUARD,50X30
$3.01¢1 507
1
#59221
59221-0021
CONNECTOR CORD,USB
$150.09¢75 043
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072B
92072-3874
BAND,L=152
$4.04¢2 018
1
#92072
92072-1293
BAND,L=140
$6.30¢3 151
1
#92154A
92154-2893
BOLT,FLANGED,5X12
$0.71¢357
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-1367
DAMPER,12X23
$1.14¢569
1
#92161B
92161-2290
DAMPER
$5.68¢2 841
1
#92161
92161-0901
DAMPER
$3.31¢1 656
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92171B
92171-1415
CLAMP,13MM DIA.
$1.83¢914
1
#92171
92171-0069
CLAMP,20MM DIA.
$2.46¢1 231
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92173A
92173-0868
CLAMP,HOLDER CLIP
$2.53¢1 265
1
#92173B
92173-2194
CLAMP
$1.68¢839
1
#92173C
92173-2198
CLAMP
$1.43¢713
1
#92173D
92173-2464
CLAMP
$3.76¢1 880
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92210
92210-0935
NUT,PLATE,5MM
$1.72¢862
1
