FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

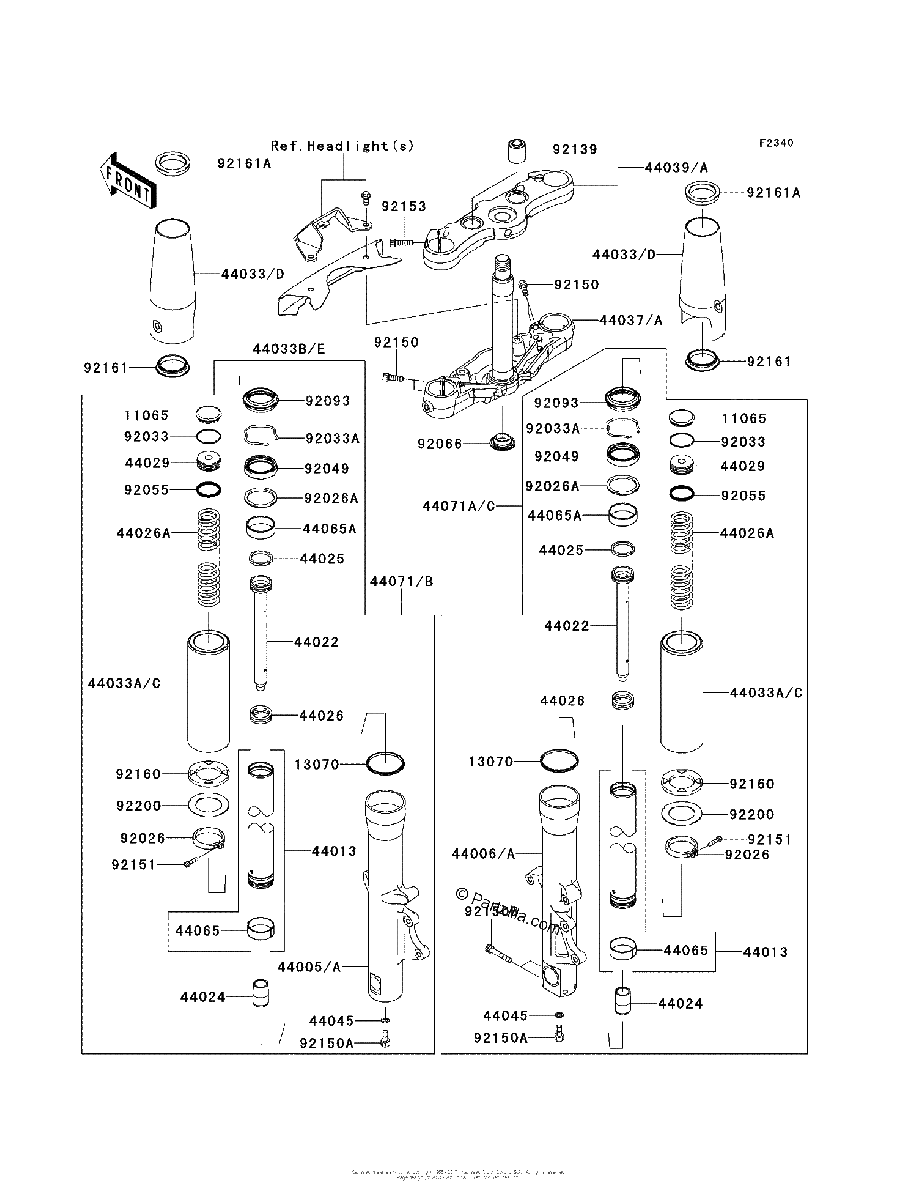

Diagrama de FRONT FORK

Repuestos

#11065
11065-0297
CAP,FORK TOP
$13.65¢6 825
1
#13070
13070-0104
GUIDE,CASE
$11.93¢5 963
1
#44005
44005-0079
PIPE LEFT FORK OUTER
No Disponible
1
#44005A
44005-0098
PIPE LEFT FORK OUTER
$586.24¢293 118
1
#44005
44005-0098
PIPE LEFT FORK OUTER
$586.24¢293 118
1
#44006
44006-0075
PIPE RIGHT FORK OUTER
No Disponible
1
#44006A
44006-0097
PIPE RIGHT FORK OUTER
$586.24¢293 118
1
#44006
44006-0097
PIPE RIGHT FORK OUTER
$586.24¢293 118
1
#44013
44013-0125
PIPE FORK INNER
$514.75¢257 376
1
#44022
44022-0025
CYLINDER FORK
$136.18¢68 092
1
#44024
44024-0006
CAP OIL LOCK
$13.29¢6 647
1
#44025
44025-0006
RING-FORK PISTON
$10.37¢5 187
1
#44026A
44026-0132
SPRING-FRONT FORK
$106.18¢53 090
1
#44026
44026-0131
SPRING-FRONT FORK
$26.45¢13 225
1
#44029
44029-0013
SEAT-FORK SPRING
$62.85¢31 424
1
#44033
44033-0053
COVER FORK
$183.30¢91 649
1
#44033A
44033-0055
COVER FORK
$174.49¢87 245
1
#44033B
44033-0057
COVER FORK
$143.97¢71 984
1
#44033A
44033-0074
COVER-FORK,INNER TUBE
$188.01¢94 007
1
#44033C
44033-0074
COVER-FORK,INNER TUBE
$188.01¢94 007
1
#44033D
44033-0075
COVER FORK,TOP
$221.57¢110 785
1
#44033
44033-0075
COVER FORK,TOP
$221.57¢110 785
1
#44033E
44033-0076
COVER FORK,UNDER BRACKET
$168.73¢84 364
1
#44033B
44033-0076
COVER FORK,UNDER BRACKET
$168.73¢84 364
1
#44037
44037-0087
HOLDER FORK UNDER
$570.73¢285 367
1
#44037
44037-0145
HOLDER-FORK UNDER
$657.39¢328 693
1
#44037A
44037-0145
HOLDER-FORK UNDER
$657.39¢328 693
1
#44039
44039-0140
HOLDER-FORK UPPER
$464.21¢232 105
1
#44039A
44039-0140
HOLDER-FORK UPPER
$464.21¢232 105
1
#44039
44039-0100
HOLDER-FORK UPPER
$411.62¢205 810
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
1
#44065A
44065-0026
BUSHING FRONT FORK
$24.77¢12 385
1
#44065
44065-0025
BUSHING-FRONT FORK,INNER TUBE
$25.81¢12 903
1
#44071A
44071-0670
DAMPER Assembly,FORK,Right Hand
No Disponible
1
#44071B
44071-0929
DAMPER Assembly,FORK,Left Hand
$1315.73¢657 863
1
#44071A
44071-0930
DAMPER-ASSY,FORK,RH
$1315.73¢657 863
1
#44071C
44071-0930
DAMPER-ASSY,FORK,RH
$1315.73¢657 863
1
#44071
44071-0929
DAMPER Assembly,FORK,Left Hand
$1315.73¢657 863
1
#44071
44071-0669
DAMPER Assembly,FORK,Left Hand
No Disponible
1
#92026A
92026-1598
SPACER
$11.94¢5 969
1
#92026
92026-0134
SPACER
$21.08¢10 540
1
#92033A
92033-1222
RING-SNAP
$5.85¢2 927
1
#92033
92033-0061
RING SNAP
$7.89¢3 944
1
#92049
92049-0119
SEAL-OIL
$26.69¢13 346
1
#92055
92055-1420
RING O,FORK TOP
$5.01¢2 507
1
#92066
92066-0032
PLUG
$12.05¢6 026
1
#92093
92093-0042
SEAL,DUST
$24.29¢12 144
1
#92139
92139-0285
BUSHING
$40.32¢20 160
1
#92150B
92150-1512
BOLT-SOCKET,8X40
No Disponible
1
#92150A
92150-1432
BOLT,SOCKET,8X18
$9.04¢4 520
1
#92150
92150-1407
BOLT,SOCKET,8X30
$2.37¢1 185
1
#92151
92151-1356
BOLT,SOCKET,4X16
$2.18¢1 092
1
#92153
92153-0500
BOLT,SOCKET,8X30
$11.25¢5 623
1
#92160
92160-1927
DAMPER
$8.36¢4 180
1
#92161A
92161-0799
DAMPER
$12.19¢6 095
1
#92161
92161-0604
DAMPER
$5.29¢2 645
1
#92200
92200-0469
WASHER
$8.02¢4 008
1
