CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

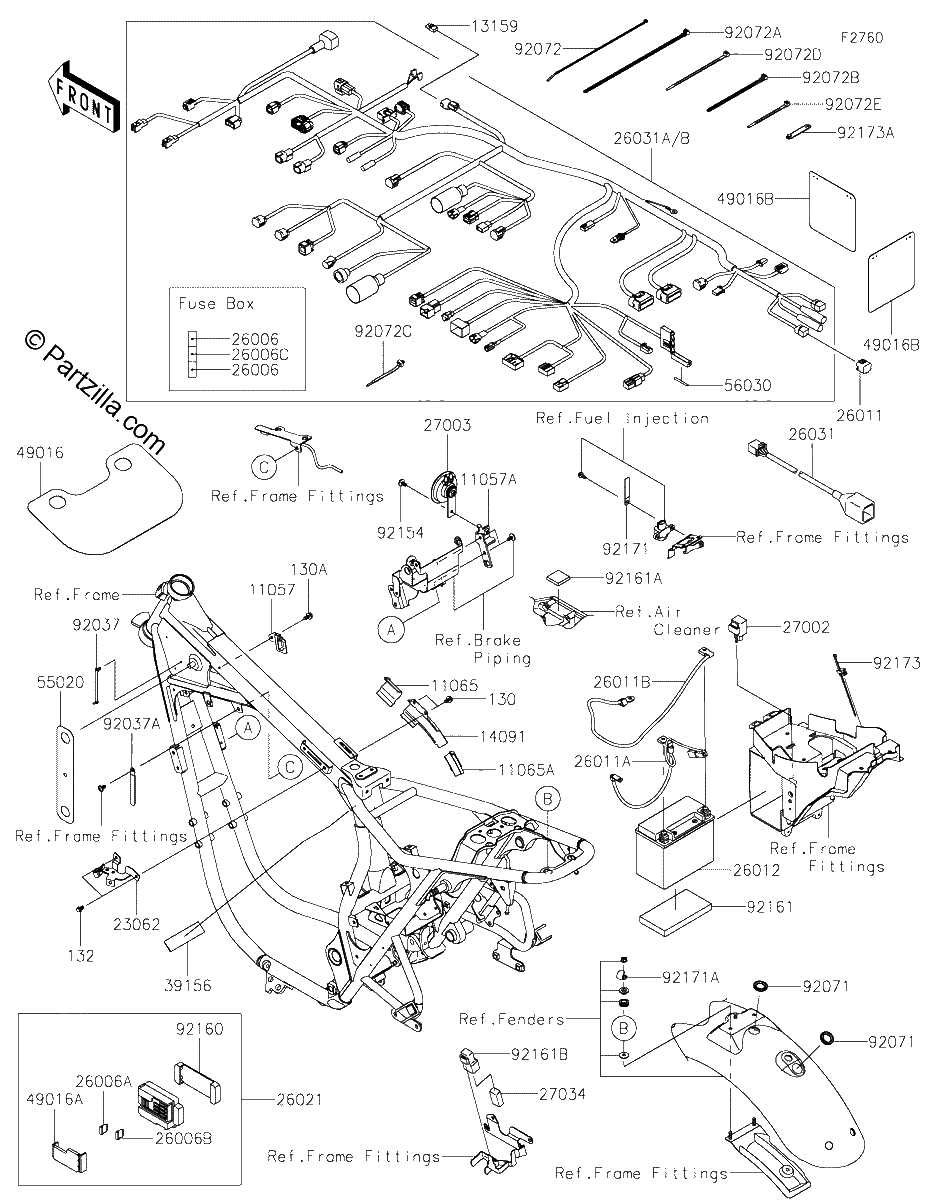

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#11057
11057-2407
BRACKET,IGNITION SWITCH
$8.65¢4 325
1
#11057A
11057-7971
BRACKET,HORN
$6.41¢3 206
1
#11065
11065-1141
CAP,HARNESS COVER,FR
$17.56¢8 781
1
#11065A
11065-1142
CAP,HARNESS COVER,Rear
$17.56¢8 781
1
#13159
13159-0034
CONNECTOR,GRIP HEATER COUPLER
$15.97¢7 988
1
#14091
14091-1274
COVER,HARNESS
$12.19¢6 094
1
#23062
23062-1252
BRACKET-COMP,PRESSURE SENSOR
$25.36¢12 681
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006A
26006-1067
FUSE,30A-G
No Disponible
1
#26006B
26006-1068
FUSE,10A R
No Disponible
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26011A
26011-1868
WIRE-LEAD,BATTERY(+)
$48.63¢24 313
1
#26011B
26011-1893
WIRE-LEAD,BATTERY(-)
$45.55¢22 775
1
#26012
26012-1514
BATTERY,YTX12 BS,12V 10AH
$151.31¢75 656
1
#26012
26012-0094
BATTERY,YTX12 BS,12V 10AH
No Disponible
1
#26021
26021-0085
JUNCTION BOX
$197.56¢98 781
1
#26031
26031-2505
HARNESS,RR
$52.56¢26 281
1
#26031A
26031-2650
HARNESS,MAIN
$866.38¢433 188
1
#26031A
26031-2651
HARNESS,MAIN
$899.80¢449 900
1
#27002
27002-1101
RELAY Assembly,TURN SIGNAL
$87.74¢43 869
1
#27003
27003-0166
HORN
$93.29¢46 644
1
#27034
27034-0012
RELAY
$44.74¢22 369
1
#39156
39156-2527
PAD,25X100X2
$1.93¢963
1
#49016A
49016-0670
COVER-SEAL,FUSE
$8.54¢4 269
1
#49016B
49016-0671
COVER-SEAL
$5.91¢2 956
1
#49016
49016-0571
COVER SEAL
$20.04¢10 019
1
#55020
55020-1985
GUARD
$11.99¢5 994
1
#56030
56030-1493
LABEL,FUSE BOX1
$2.90¢1 450
1
#92037A
92037-1993
CLAMP
$5.45¢2 725
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92071
92071-0054
GROMMET,18X29X5
$5.17¢2 588
1
#92072A
92072-1237
BAND,L=250
$2.01¢1 006
1
#92072B
92072-1293
BAND,L=140
$6.85¢3 425
1
#92072C
92072-1414
BAND
$3.70¢1 850
1
#92072D
92072-3874
BAND,L=152
$4.39¢2 194
1
#92072E
92072-3875
BAND,L=100
$4.35¢2 175
1
#92072
92072-0863
BAND
$2.48¢1 238
1
#92154
92154-2706
BOLT,SOCKET,6X12
$1.72¢862
1
#92160
92160-1650
DAMPER,JUNCTION BOX
$14.96¢7 481
1
#92161A
92161-2289
DAMPER,34X34X7
$3.67¢1 838
1
#92161B
92161-2290
DAMPER
$6.18¢3 088
1
#92161
92161-0018
DAMPER,BATTERY
$18.39¢9 194
1
#92171A
92171-1918
CLAMP
$9.98¢4 988
1
#92171
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92173
92173-0791
CLAMP
$12.56¢6 281
1
#92173A
92173-1526
CLAMP
$4.16¢2 081
1
