ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

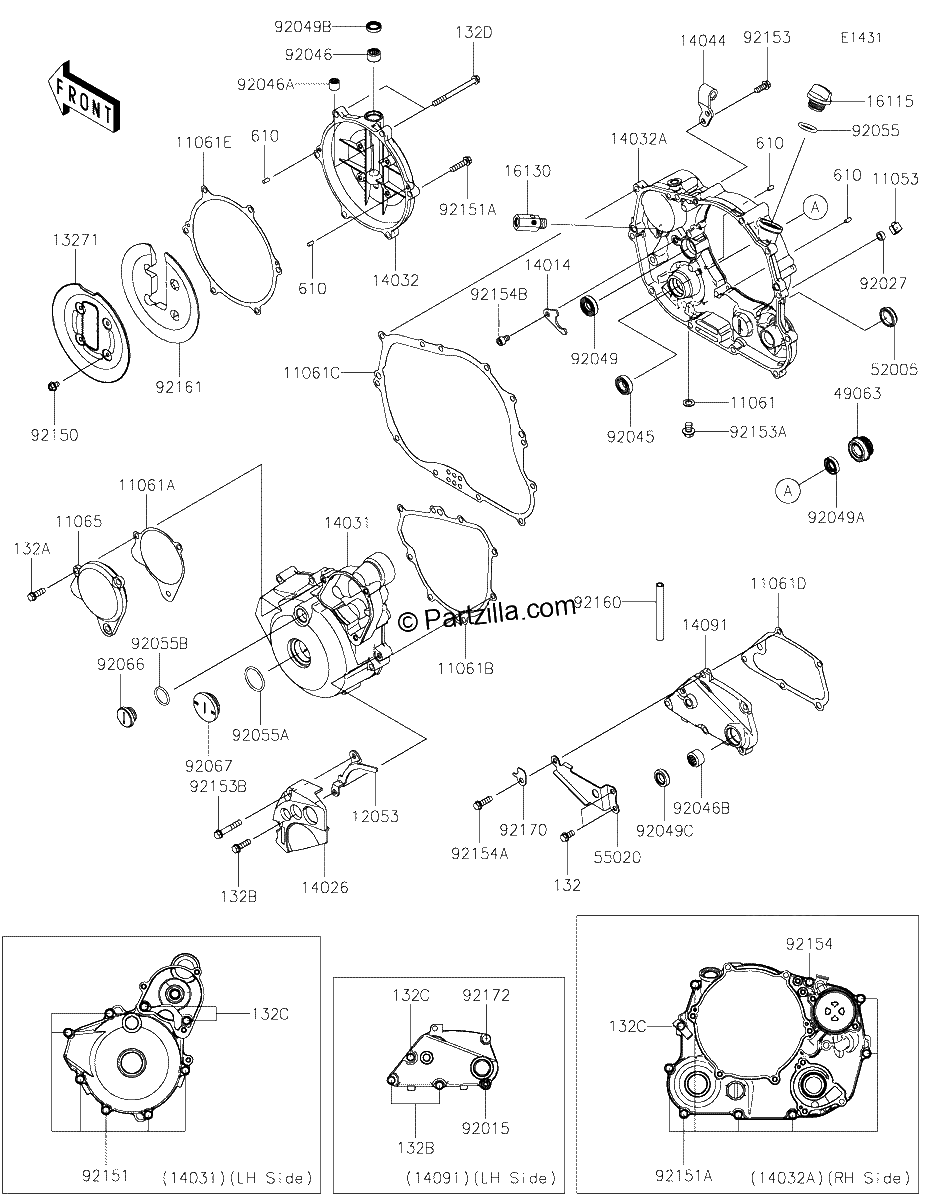

Diagrama de ENGINE COVER S

Repuestos

#132
132BC0612
BOLT-FLANGED-SMALL,6X12
$1.95¢977
1
#132D
132BC0670
BOLT-FLANGED-SMALL,6X70
$3.78¢1 892
1
#132A
132BC0618
BOLT-FLANGED-SMALL,6X18
$1.87¢937
1
#132a
132BC0618
BOLT-FLANGED-SMALL,6X18
$1.87¢937
1
#132B
132BC0620
BOLT-FLANGED-SMALL,6X20
$1.08¢541
1
#132b
132BC0620
BOLT-FLANGED-SMALL,6X20
$1.08¢541
1
#132C
132BC0630
BOLT-FLANGED-SMALL,6X30
$1.87¢937
1
#132c
132BC0630
BOLT-FLANGED-SMALL,6X30
$1.87¢937
1
#132d
132BC0670
BOLT-FLANGED-SMALL,6X70
$3.78¢1 892
1
#610
610A0408
ROLLER,4X8
$3.94¢1 972
1
#11053
11053-1656
BRACKET
$8.82¢4 410
1
#11061
11061-0418
GASKET,8.2X14X1.0
$5.32¢2 662
1
#11061A
11061-1475
GASKET,CAP
$8.80¢4 399
1
#11061B
11061-1476
GASKET,GENERATOR COVER
$20.15¢10 074
1
#11061C
11061-1477
GASKET,CLUTCH COVER INNER
$43.08¢21 540
1
#11061D
11061-1479
GASKET,TRANSMISSION COVER
$12.83¢6 417
1
#11061E
11061-1507
GASKET,CLUTCH COVER OUTER
$14.43¢7 216
1
#11065
11065-0274
CAP,GENERATOR COVER
$31.48¢15 738
1
#12053
12053-1337
GUIDE-CHAIN
$13.31¢6 653
1
#13271
13271-1567
PLATE
$51.26¢25 628
1
#14014
14014-0567
PLATE-POSITION
$8.74¢4 370
1
#14026
14026-0027
COVER-CHAIN
$33.60¢16 801
1
#14031
14031-0110
COVER GENERATOR
$196.63¢98 313
1
#14032
14032-0004
COVER CLUTCH
$60.55¢30 274
1
#14032A
14032-0658
COVER-CLUTCH
$194.59¢97 296
1
#14044
14044-1078
HOLDER CABLE
$7.92¢3 962
1
#14091
14091-0019
COVER
$57.34¢28 669
1
#16115
16115-1053
CAP OIL FILLER
$11.12¢5 560
1
#16130
16130-0002
VALVE-ASSY-RELIEF
$25.79¢12 897
1
#49063
49063-1055
SEAL MECHANICAL,WATER
$19.57¢9 786
1
#52005
52005-1009
GAUGE,OIL LEVEL
$16.62¢8 309
1
#55020
55020-1460
GUARD,TRANSMISSION COVER
$15.26¢7 630
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92027
92027-1885
COLLAR,6.5X10.5X4.5
$5.84¢2 921
1
#92045
92045-1246
BEARING-BALL,6901
$31.56¢15 778
1
#92046A
92046-0042
BEARING-NEEDLE
$15.57¢7 785
1
#92046B
92046-1148
BEARING-NEEDLE,HK1312
$16.93¢8 464
1
#92046
92046-0034
BEARING-NEEDLE,HK1210FM
$14.23¢7 113
1
#92049A
92049-1228
SEAL OIL,SC 12X22X5
$8.49¢4 244
1
#92049B
92049-1262
SEAL-OIL,AG0353-F0
$5.91¢2 956
1
#92049C
92049-1559
SEAL-OIL
$3.24¢1 621
1
#92049
92049-1191
SEAL-OIL
$24.74¢12 368
1
#92055A
92055-091
RING O,27.7X2.4
$5.60¢2 800
1
#92055B
92055-1146
RING-O,20X2
$7.84¢3 922
1
#92055
92055-012
RING-O
$0.98¢489
1
#92066
92066-0011
PLUG,COVER
$14.49¢7 245
1
#92067
92067-024
PLUG,30X8
$10.29¢5 146
1
#92150
92150-1406
BOLT,5X8
$3.83¢1 915
1
#92151A
92151-1930
BOLT,FLANGED-SMALL,6X25
$2.37¢1 185
1
#92151
92151-1131
BOLT,6X40
$4.45¢2 225
1
#92153A
92153-1342
BOLT,FLANGED,8X10
$2.81¢1 403
1
#92153B
92153-1351
BOLT,FLANGED,6X35
$6.06¢3 030
1
#92153
92153-0695
BOLT,6X16
$2.56¢1 282
1
#92154A
92154-3945
BOLT,FLANGED,6X20
$0.91¢454
1
#92154B
92154-4072
BOLT,SOCKET,6X10
$2.08¢1 041
1
#92154
92154-0490
BOLT,FLANGED,6X25
$1.79¢897
1
#92160
92160-1866
DAMPER
$2.89¢1 443
1
#92161
92161-1182
DAMPER
$51.26¢25 628
1
#92170
92170-1785
CLAMP
$2.68¢1 340
1
#92172
92172-0223
SCREW,6X16
$1.95¢977
1
