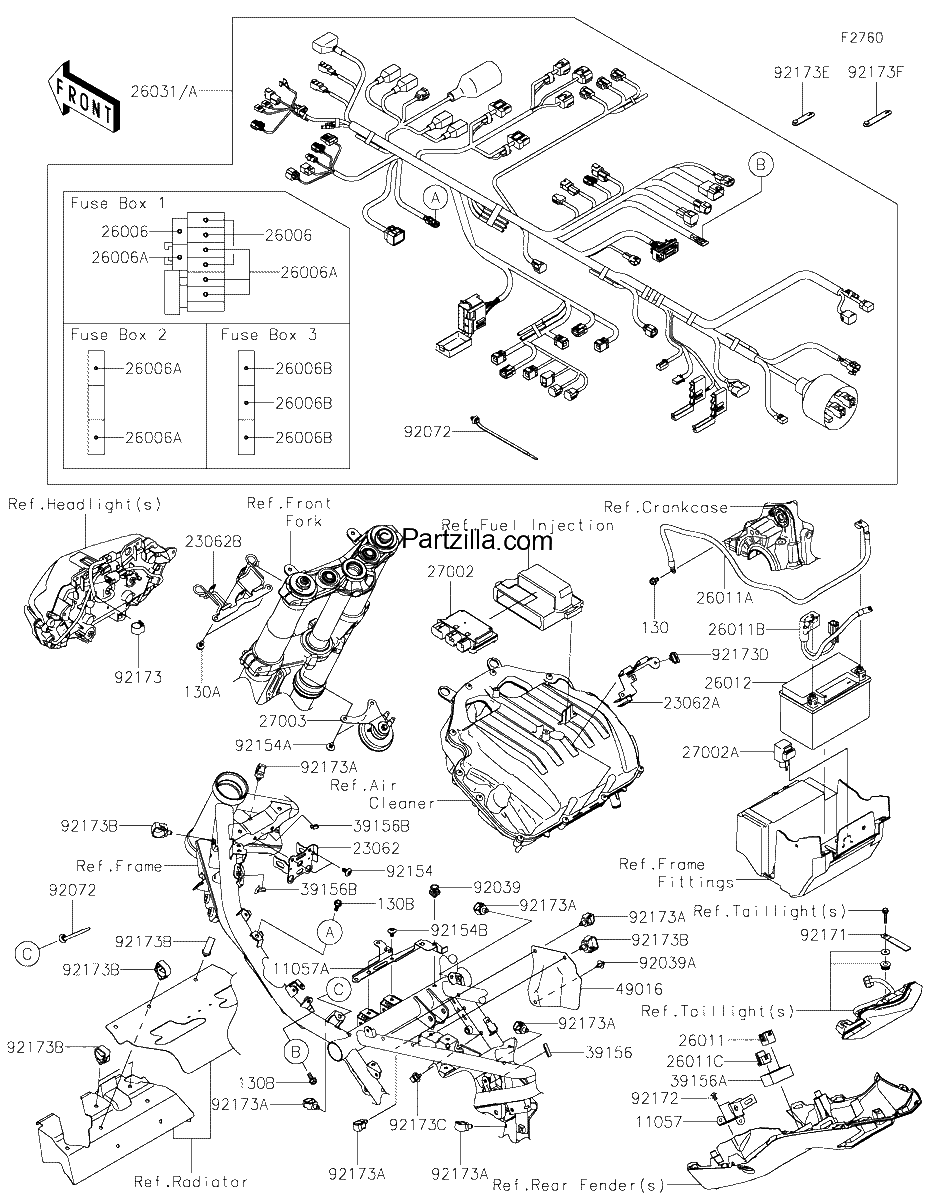

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.16¢581
#130A
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#130B
BOLT FLANGED,6X16
$1.16¢581
#11057
BRACKET,RELAY
$5.53¢2 766
#11057A
BRACKET,MAIN HARNESS
$9.18¢4 589
#23062
BRACKET-COMP,V.D. SENSOR
$14.18¢7 090
#23062A
BRACKET-COMP,A/C BOX
$10.63¢5 313
#23062B
BRACKET-COMP,FORK UPPER HOLDER
$22.29¢11 143
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,7.5A,BROWN
$6.15¢3 076
#26006B
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
#26011
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
#26011A
WIRE-LEAD,BATTERY(-)
$92.20¢46 098
#26011B
WIRE-LEAD,BATTERY(+)
$98.44¢49 220
#26011C
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
#26012
BATTERY,FTX9-BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$728.67¢364 337
#26031
HARNESS,MAIN
$728.67¢364 337
#27002
RELAY Assembly
$149.93¢74 963
#27002A
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
#27003
HORN
$76.27¢38 134
#39156B
PAD,20X20X1
$0.66¢328
#39156A
PAD,DIAG CONNECTOR
$4.75¢2 375
#39156
PAD,28X17X1
$0.77¢385
#49016
COVER SEAL,ABS CONNECTOR
$6.04¢3 019
#92039A
RIVET
$2.28¢1 138
#92039
RIVET,HOLE 8MM
$2.74¢1 368
#92072
BAND
$3.40¢1 702
#92154B
BOLT,SOCKET,6X10
$1.49¢747
#92154A
BOLT,SOCKET,6X10
$1.14¢569
#92154
BOLT,SOCKET,6X12
$1.71¢857
#92171
CLAMP,L=60
$2.22¢1 110
#92172
SCREW,5X10
$1.24¢621
#92173A
CLAMP,12MM DIA.
$4.61¢2 306
#92173B
CLAMP
$2.53¢1 265
#92173C
CLAMP,CABLE CLIP
$1.49¢747
#92173D
CLAMP,CLIP,TAIL LAMP,ETC
$1.43¢713
#92173E
CLAMP
$1.43¢713
#92173
CLAMP,CLIP
$15.92¢7 958
#92173F
CLAMP
$1.43¢713
