COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

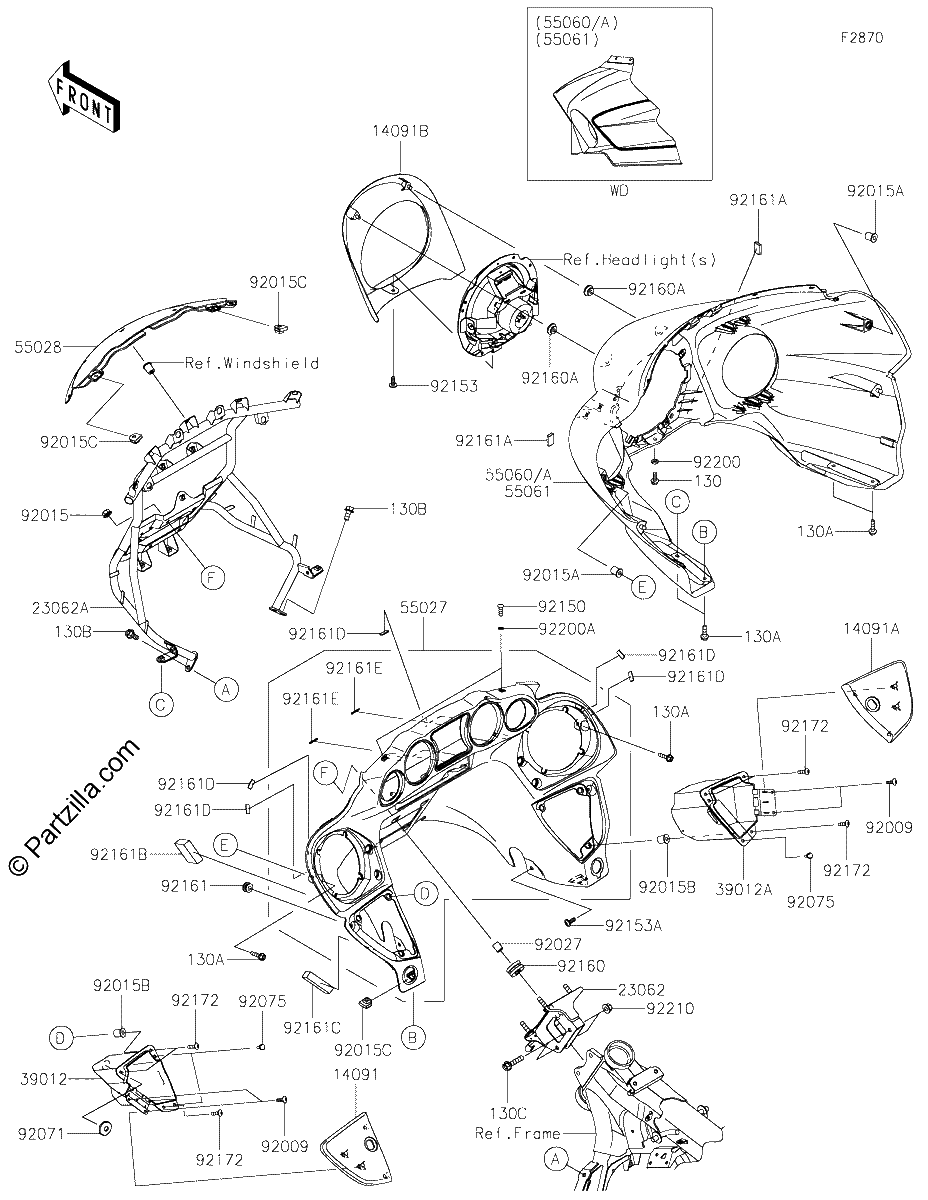

Diagrama de COWLING

Repuestos

#130
130AA0616
BOLT FLANGED,6X16
$0.66¢331
1
#130a
130BB0622
BOLT-FLANGED,6X22
$3.64¢1 819
1
#130B
130BB0816
BOLT FLANGED,8X16
$1.66¢831
1
#130b
130BB0816
BOLT FLANGED,8X16
$1.66¢831
1
#130c
130BB0835
BOLT-FLANGED,8X35
$4.41¢2 206
1
#130C
130BB0835
BOLT-FLANGED,8X35
$4.41¢2 206
1
#130A
130BB0622
BOLT-FLANGED,6X22
$3.64¢1 819
1
#14091
14091-0946-6Z
COVER,STORAGE CASE,Left Hand,F BLACK
$25.47¢12 737
1
#14091A
14091-0947-6Z
COVER,STORAGE CASE,RH,F.BLACK
$25.47¢12 737
1
#14091B
14091-0948
COVER,HEAD LAMP
$327.09¢163 544
1
#23062
23062-0106
BRACKET COMP,HEAD PIPE
$115.57¢57 787
1
#23062A
23062-0720
BRACKET-COMP,COWLING
$444.98¢222 488
1
#39012
39012-0027
CASE-STORAGE,LH
$68.39¢34 194
1
#39012A
39012-0028
CASE-STORAGE,RH
$65.11¢32 556
1
#55027
55027-0063-6Z
COWLING-ASSY,UPP,INNER,BLACK
$809.30¢404 650
1
#55028
55028-0227-6Z
COWLING,CNT,F BLACK
$65.94¢32 969
1
#55060
55060-5388-60W
COWLING,UPP,OUTER,P.S.GRAY+EBY
$2464.71¢1 232 356
1
#55060
55060-5091-68V
COWLING,UPP,OUTER,P.N.TEAL+WHT
$2464.71¢1 232 356
1
#55061
55061-5378-76E
COWLING,Upper,OUTER,M M GRAY+BLU
$2395.38¢1 197 688
1
#55061
55061-5248-69R
COWLING,Upper,OUTER,M G GRAY+GRY
$2464.71¢1 232 356
1
#55061
55061-5142-69R
COWLING,UPP,OUTER,M.G.GRAY+GRY
$2464.71¢1 232 356
1
#92009
92009-1332
SCREW,TAPPING,5X10
$3.90¢1 950
1
#92015C
92015-1904
NUT,CLIP,6MM
$6.42¢3 213
1
#92015B
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1406
NUT,FLANGED,8MM
$4.41¢2 206
1
#92015A
92015-1700
NUT
$8.53¢4 263
1
#92027
92027-012
COLLAR,8.8X12X14
$6.09¢3 044
1
#92071
92071-079
GROMMET,TAIL LAMP WIRE
$3.83¢1 913
1
#92075
92075-1808
DAMPER,6X10X15
$1.39¢694
1
#92150
92150-1553
BOLT,SOCKET,6X18
$6.09¢3 044
1
#92153A
92153-1451
BOLT,SOCKET,6X15
$1.79¢894
1
#92153
92153-0817
BOLT,SOCKET,6X16
$2.04¢1 019
1
#92160A
92160-1613
DAMPER
$3.70¢1 850
1
#92160
92160-1007
DAMPER
$5.45¢2 725
1
#92161A
92161-0717
DAMPER
$1.01¢506
1
#92161B
92161-0784
DAMPER
$2.64¢1 319
1
#92161C
92161-0785
DAMPER
$2.64¢1 319
1
#92161D
92161-0965
DAMPER
$1.69¢844
1
#92161E
92161-0996
DAMPER,3X25X0.3
$0.99¢494
1
#92161
92161-0317
DAMPER
$3.05¢1 525
1
#92172
92172-0428
SCREW,5X18
$1.01¢506
1
#92200A
92200-1465
WASHER,6.2X10X1
$1.56¢781
1
#92200
92200-0511
WASHER,6.5X12X2
$2.64¢1 319
1
#92210
92210-0004
NUT,FLANGED,8MM
$5.30¢2 650
1
