FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

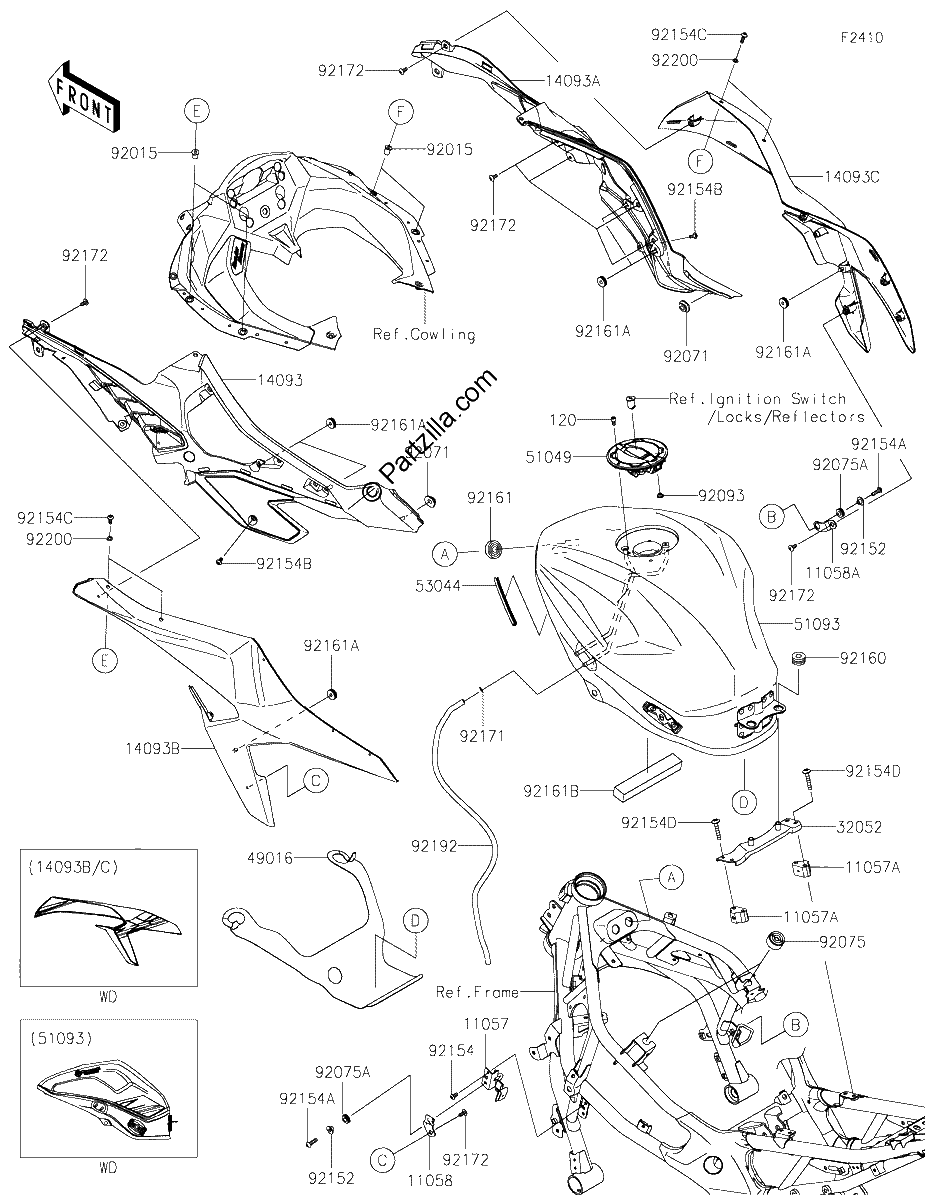

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.55¢775
1
#11057
11057-2917
BRACKET,KNEE GRIP COVER
$10.36¢5 181
1
#11057A
11057-7937
BRACKET
$23.77¢11 888
1
#11058
11058-0610
BRACKET,KNEE GRIP COVER,Left Hand
$3.10¢1 550
1
#11058A
11058-1068
BRACKET,KNEE GRIP COVER,Right Hand
$4.30¢2 150
1
#14093
14093-5404-H8
COVER,KNEE GRIP,OUTER,Left Hand,EBONY
$330.19¢165 094
1
#14093
14093-0962
COVER,KNEE GRIP,INNER,Left Hand
$153.44¢76 719
1
#14093
14093-0961-777
COVER,KNEE GRIP,OUTER,Left Hand,GREEN
$277.56¢138 781
1
#14093
14093-0961-660
COVER,KNEE GRIP,OUTER,Left Hand,BLACK
$277.56¢138 781
1
#14093E
14093-0964
COVER,KNEE GRIP,INNER,Right Hand
$153.44¢76 719
1
#14093B
14093-0962
COVER,KNEE GRIP,INNER,Left Hand
$153.44¢76 719
1
#14093C
14093-0963-660
COVER,KNEE GRIP,OUTER,Right Hand,BLACK
$275.77¢137 888
1
#14093C
14093-0963-777
COVER,KNEE GRIP,OUTER,Right Hand,GREEN
$275.77¢137 888
1
#14093A
14093-0964
COVER,KNEE GRIP,INNER,Right Hand
$153.44¢76 719
1
#14093B
14093-5404-H8
COVER,KNEE GRIP,OUTER,Left Hand,EBONY
$330.19¢165 094
1
#14093C
14093-5453-H8
COVER,KNEE GRIP,OUTER,Right Hand,EBONY
$377.48¢188 738
1
#32052
32052-0824
BRACKET TANK
$16.63¢8 313
1
#49016
49016-0702
COVER SEAL
$18.27¢9 138
1
#51049
51049-0756
CAP-TANK,FUEL
$173.96¢86 981
1
#51093
51093-5280-777
TANK COMP FUEL,L GREEN
$1292.53¢646 263
1
#51093
51093-5244-69W
TANK COMP FUEL,P C WHITE+BLU
$1708.34¢854 169
1
#51093
51093-5067-777
TANK COMP FUEL,L GREEN
$1292.53¢646 263
1
#51093
51093-5044-660
TANK COMP FUEL,M S BLACK
$1152.35¢576 175
1
#53044
53044-0627
TRIM,105MM
$3.05¢1 525
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92071
92071-0766
GROMMET,20X24X7.5
$1.42¢712
1
#92075A
92075-161
DAMPER
$4.65¢2 325
1
#92075
92075-015
DAMPER
$4.96¢2 481
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92152
92152-0017
COLLAR
$2.58¢1 288
1
#92154C
92154-4294
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154A
92154-2107
BOLT,SOCKET,5X18
$2.00¢1 000
1
#92154B
92154-2548
BOLT,SOCKET,5X10
$1.49¢744
1
#92154D
92154-4487
BOLT,SOCKET,6X30
$1.88¢938
1
#92154
92154-1691
BOLT,SOCKET,5X10
$1.55¢775
1
#92160
92160-1162
DAMPER
$4.96¢2 481
1
#92161A
92161-1911
DAMPER,6X19X5.6
$0.99¢494
1
#92161B
92161-2305
DAMPER,150X25X20
$9.36¢4 681
1
#92161
92161-1791
DAMPER,10X32X8
$2.20¢1 100
1
#92171
92171-1973
CLAMP,8X0.7
$1.35¢675
1
#92172
92172-0821
SCREW,5X12
$0.95¢475
1
#92192
92192-2278
TUBE,DRAIN,1.5X6X685
$4.25¢2 125
1
#92200
92200-1730
WASHER,5.2X10X0.5
$0.78¢388
1
