HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

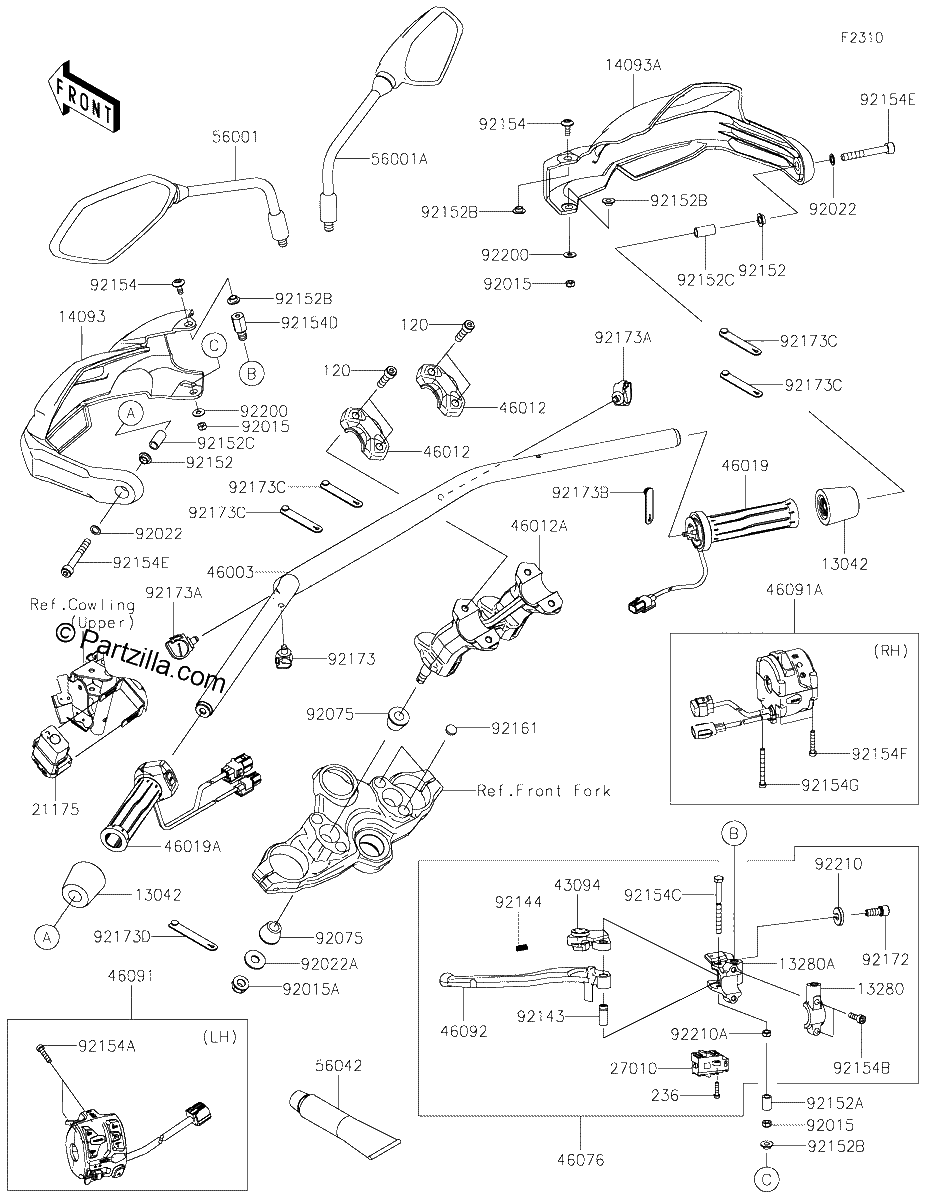

Diagrama de HANDLEBAR

Repuestos

#120
120CC0830
BOLT-SOCKET,8X30
$3.67¢1 838
1
#236
236AB0416
SCREW-PAN-WSP-CROS
$11.59¢5 794
1
#13042
13042-0785
WEIGHT,HANDLE
$61.96¢30 981
1
#13280
13280-0772
HOLDER,CLUTCH LEVER
$33.70¢16 850
1
#13280A
13280-0926
HOLDER
$61.63¢30 813
1
#14093
14093-0751
COVER,LH
$139.01¢69 506
1
#14093A
14093-0752
COVER,RH
$139.01¢69 506
1
#21175
21175-1329
CONTROL UNIT-ELECTRONIC,GH
$159.26¢79 631
1
#27010
27010-0916
SWITCH,CLUTCH
$79.79¢39 894
1
#43094
43094-0008
ADJUSTER
$43.81¢21 906
1
#46003
46003-0717-18R
HANDLE,F.S.BLACK
$319.59¢159 794
1
#46012A
46012-0354-18R
HOLDER-HANDLE,LWR,F.S.BLACK
$175.38¢87 688
1
#46012
46012-0353-18R
HOLDER-HANDLE,UPP,F.S.BLACK
$125.41¢62 706
1
#46019
46019-0081
GRIP-ASSY,HEATER,RH
$187.85¢93 925
1
#46019A
46019-0090
GRIP-ASSY,HEATER,LH
$187.85¢93 925
1
#46076
46076-0164
LEVER-ASSY-GRIP,CLUTCH
$141.25¢70 625
1
#46091
46091-0532
HOUSING Assembly CONTROL,Left Hand
$559.10¢279 550
1
#46091A
46091-0581
HOUSING-ASSY-CONTROL,RH
$313.41¢156 706
1
#46092
46092-0575
LEVER-GRIP,CLUTCH
$20.67¢10 337
1
#56001
56001-0297
MIRROR-ASSY,LH
$94.79¢47 394
1
#56001A
56001-0298
MIRROR-ASSY,RH
$94.79¢47 394
1
#56042
56042-0001
ADHESIVE,TB1530C
$121.31¢60 656
1
#92015
92015-1191
NUT,LOCK,6MM
No Disponible
1
#92015A
92015-1717
NUT,LOCK,FLANGED,10MM
$9.83¢4 913
1
#92022A
92022-1396
WASHER,10.5X26X2.3,BLACK
$3.04¢1 519
1
#92022
92022-1028
WASHER,8.5X13X1
$3.90¢1 950
1
#92075
92075-039
DAMPER,HANDLE HOLDER
$4.65¢2 325
1
#92143
92143-1379
COLLAR
$9.44¢4 719
1
#92144
92144-1467
SPRING
$6.36¢3 181
1
#92152
92152-2512
COLLAR
$12.13¢6 063
1
#92152A
92152-2513
COLLAR,6.5X10.5X16.5
$16.23¢8 113
1
#92152B
92152-2514
COLLAR
$11.33¢5 663
1
#92152C
92152-2515
COLLAR,8.2X11.8X23.5
$13.20¢6 600
1
#92154E
92154-3826
BOLT,SOCKET,8X60
$5.27¢2 637
1
#92154
92154-0907
BOLT,SOCKET,6X14
$1.88¢938
1
#92154A
92154-2596
BOLT,SOCKET,5X25
$4.11¢2 056
1
#92154B
92154-2644
BOLT,SOCKET,6X20
$3.89¢1 944
1
#92154C
92154-3816
BOLT,CLUTCH LEVER PIVOT
$17.34¢8 669
1
#92154D
92154-3825
BOLT
$35.21¢17 606
1
#92154F
92154-3921
BOLT,5X30
$4.11¢2 056
1
#92154G
92154-3922
BOLT,5X50
$4.11¢2 056
1
#92161
92161-1723
DAMPER,13X3
$1.96¢981
1
#92172
92172-1138
SCREW
$6.75¢3 375
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173A
92173-0861
CLAMP
$2.75¢1 375
1
#92173B
92173-1229
CLAMP,RUBBER PLATE
$4.16¢2 081
1
#92173C
92173-1526
CLAMP
$4.16¢2 081
1
#92173D
92173-2194
CLAMP
$1.82¢913
1
#92200
92200-1762
WASHER,6.2X15X1.2
$1.24¢619
1
#92210
92210-1519
NUT
$11.73¢5 863
1
#92210A
92210-1544
NUT,LOCK,6MM
$3.54¢1 769
1
