FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

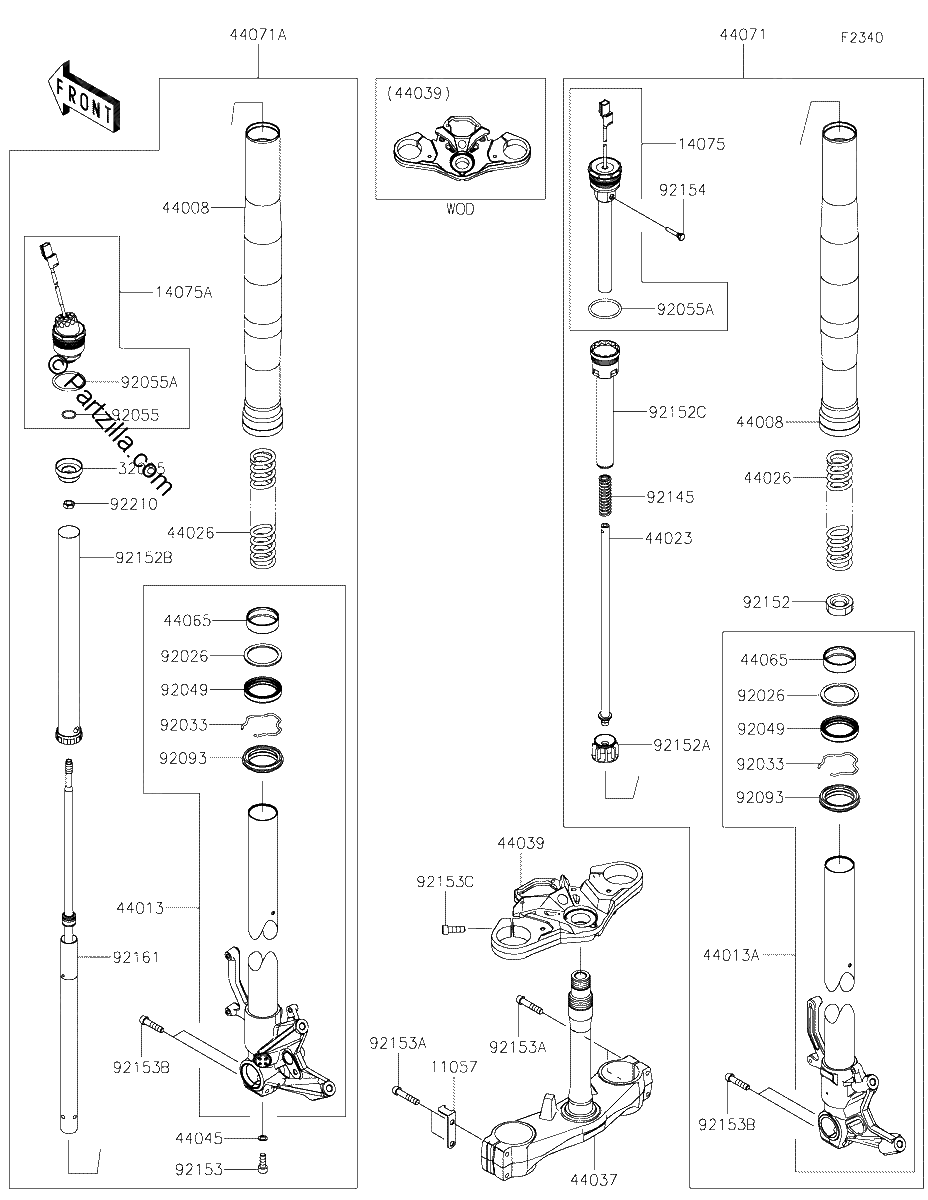

Diagrama de FRONT FORK

Repuestos

#11057
11057-2295
BRACKET
$6.31¢3 157
1
#14075
14075-0716
CAP-ASSY,FORK,RH
$1099.68¢549 838
1
#14075A
14075-0723
CAP-ASSY,FORK,LH
$1721.72¢860 861
1
#32085
32085-0851
STOPPER
$50.98¢25 490
1
#44008
44008-0091
PIPE-FORK OUTER
$490.43¢245 214
1
#44013
44013-0339
PIPE-FORK INNER,LH
$765.43¢382 714
1
#44013A
44013-0340
PIPE-FORK INNER,RH
$765.43¢382 714
1
#44023
44023-0160
CYLINDER-SET-FORK
$193.88¢96 939
1
#44026
44026-0236
SPRING-FRONT FORK
$81.30¢40 652
1
#44037
44037-0213
HOLDER-FORK UNDER
$1089.58¢544 790
1
#44039
44039-0206
HOLDER FORK UPPER
$377.07¢188 537
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
1
#44065
44065-0026
BUSHING FRONT FORK
$24.77¢12 385
1
#44071
44071-1513
DAMPER-ASSY,FORK,RH
$2464.90¢1 232 449
1
#44071A
44071-1579
DAMPER Assembly,FORK,Left Hand
$3426.88¢1 713 442
1
#92026
92026-0165
SPACER
$3.45¢1 725
1
#92033
92033-1222
RING-SNAP
$5.85¢2 927
1
#92049
92049-0064
SEAL-OIL
$24.49¢12 247
1
#92055A
92055-1497
RING-O,FORK CAP
$5.36¢2 680
1
#92055
92055-0927
RING-O
$3.83¢1 915
1
#92093
92093-0042
SEAL,DUST
$24.29¢12 144
1
#92145
92145-1918
SPRING
$39.87¢19 935
1
#92152C
92152-2658
COLLAR
$50.98¢25 490
1
#92152A
92152-2565
COLLAR
$32.17¢16 083
1
#92152B
92152-2623
COLLAR
$27.95¢13 973
1
#92152
92152-2564
COLLAR
$87.09¢43 545
1
#92153A
92153-0533
BOLT
$9.90¢4 951
1
#92153B
92153-0854
BOLT,SOCKET,8X35
$7.16¢3 582
1
#92153C
92153-1625
BOLT,SOCKET,8X25
$4.24¢2 122
1
#92153
92153-0028
BOLT,SOCKET,8X22
$8.42¢4 209
1
#92154
92154-3743
BOLT,TOP
$47.12¢23 558
1
#92161
92161-2247
DAMPER
$993.06¢496 530
1
#92210
92210-1764
NUT
$1.26¢633
1
