IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

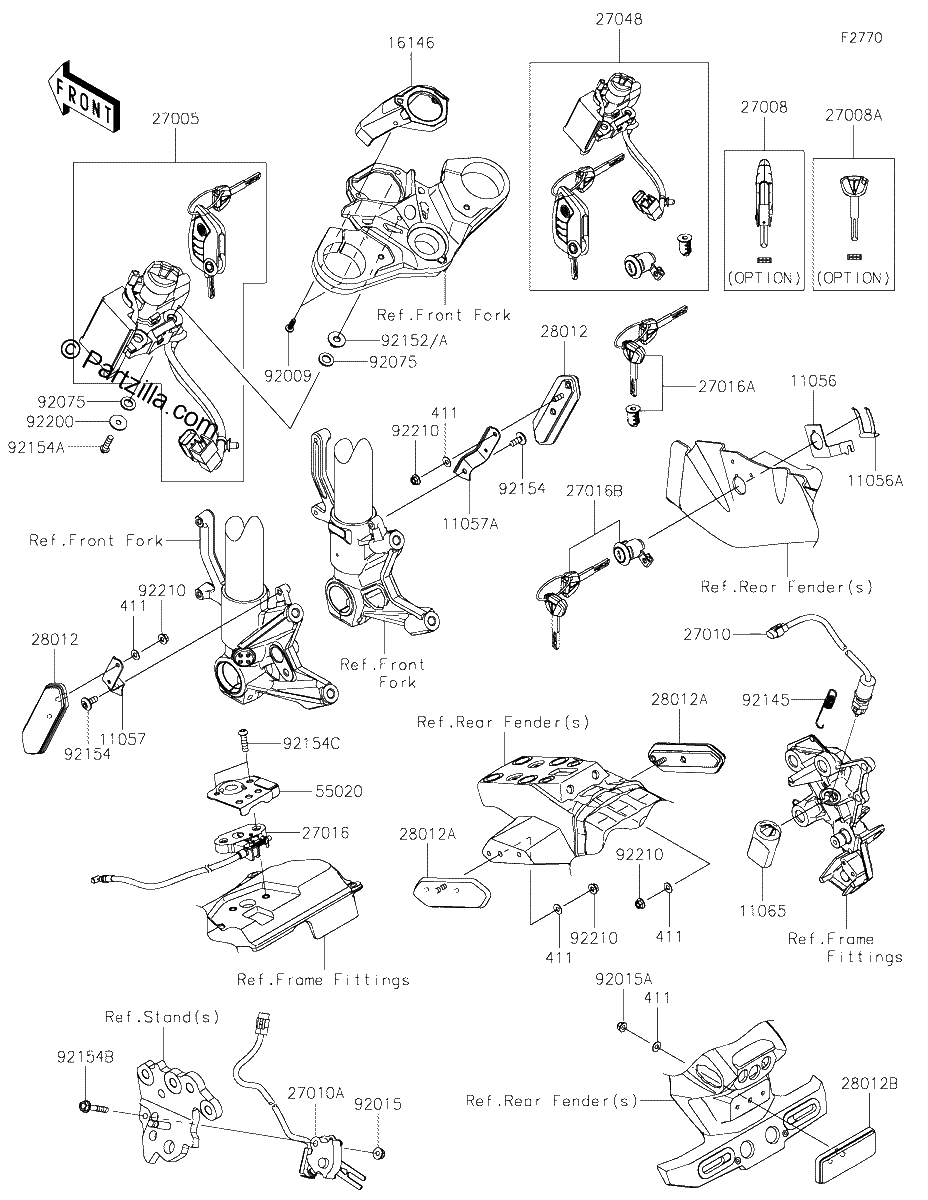

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#411
411AA0500
WASHER-PLAIN,5MM
$0.61¢305
1
#11056
11056-0237
BRACKET
$4.02¢2 012
1
#11056A
11056-0238
BRACKET,CLASP
$5.43¢2 714
1
#11057A
11057-1301
BRACKET,REFLECTOR,RH
$5.99¢2 996
1
#11057
11057-1300
BRACKET,REFLECTOR,LH
$5.99¢2 996
1
#11065
11065-0381
CAP,RR BRAKE SWITCH
$12.49¢6 244
1
#16146
16146-0849
COVER Assembly,SWITCH KNOB
$11.50¢5 750
1
#27005
27005-0728
SWITCH-ASSY-IGNITION
$1540.39¢770 195
1
#27008A
27008-0686
KEY LOCK,BLANK
$71.32¢35 662
1
#27008
27008-0680
FOB KEY,BLANK
$418.62¢209 311
1
#27010A
27010-0872
SWITCH,SIDE STAND
$96.78¢48 392
1
#27010
27010-0836
SWITCH,STOP
$39.10¢19 550
1
#27016B
27016-5427
LOCK-ASSY,SEAT
$157.66¢78 833
1
#27016A
27016-5425
LOCK Assembly,TANK CAP
$148.32¢74 158
1
#27016
27016-0098
LOCK Assembly,SEAT STRIKER
$52.15¢26 076
1
#27048
27048-5298
SWITCH Assembly
$1770.47¢885 235
1
#28012B
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012A
28012-0046
REFLECTOR-REFLEX,RED,CCC
$16.81¢8 407
1
#28012
28012-0045
REFLECTOR-REFLEX,CCC
$16.81¢8 407
1
#55020
55020-2259
GUARD,SEAT STRIKER
$6.39¢3 197
1
#92009
92009-1264
SCREW,TAPPING,5X16
$2.70¢1 351
1
#92015A
92015-1752
NUT,LOCK,FLANGED,5MM
$3.94¢1 972
1
#92015
92015-1603
NUT,LOCK,FLANGED,6MM
$4.28¢2 139
1
#92075
92075-1564
DAMPER
$4.98¢2 490
1
#92145
92145-1794
SPRING
$5.93¢2 967
1
#92152
92152-2961
COLLAR
$10.60¢5 302
1
#92152
92152-2842
COLLAR
$10.60¢5 302
1
#92154C
92154-4458
BOLT,SOCKET,6X22
$2.28¢1 138
1
#92154B
92154-4455
BOLT,FLANGED,6X35
$2.28¢1 138
1
#92154A
92154-1858
BOLT,TORX,6X22
$3.61¢1 805
1
#92154
92154-0745
BOLT,SOCKET,6X14
$1.99¢995
1
#92200
92200-0212
WASHER,6X20X1.6
$2.77¢1 386
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
