CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

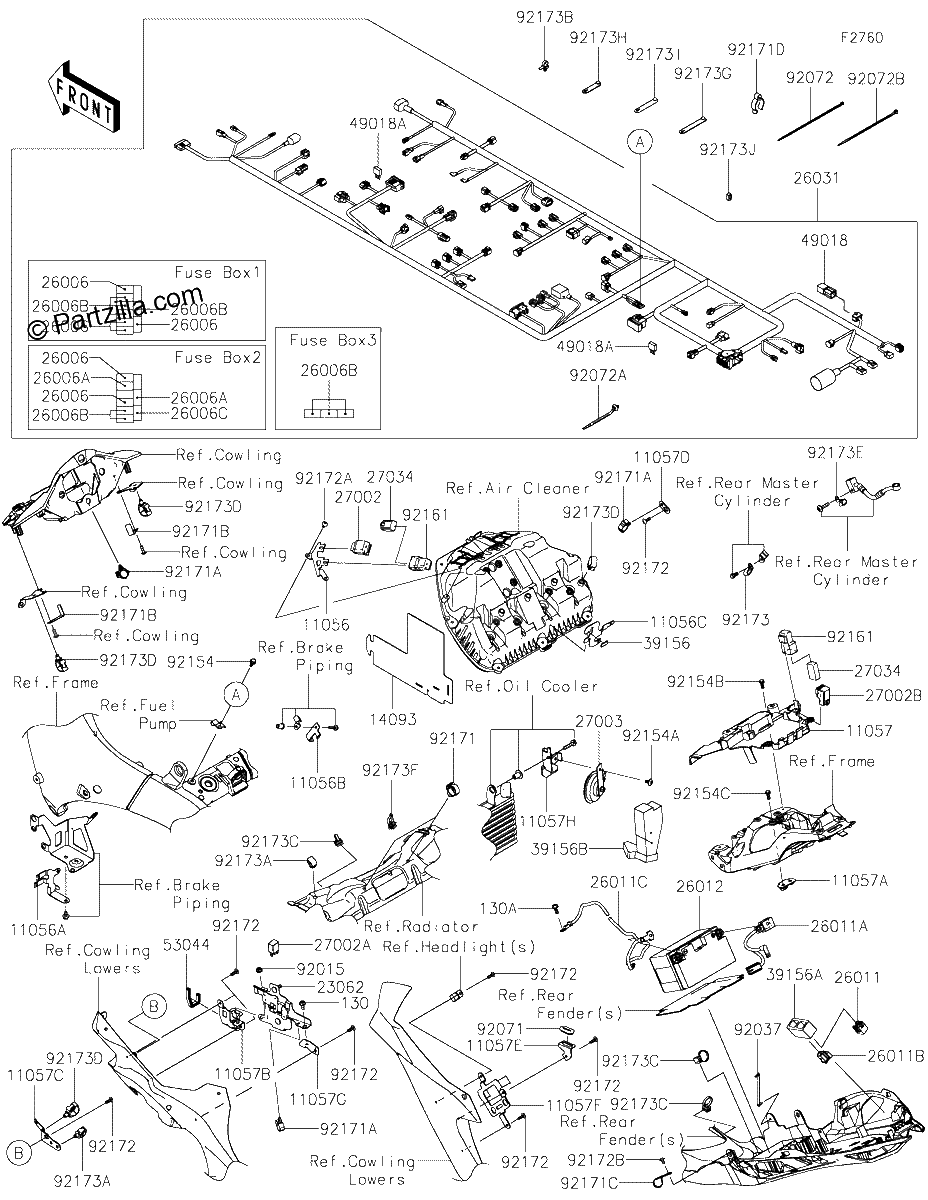

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#130A
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#11056
11056-7706
BRACKET,RELAY
$5.60¢2 800
1
#11056A
11056-7816
BRACKET,SHIFTERGEAR POSITION
$9.01¢4 506
1
#11056B
11056-7828
BRACKET,FRAME,Left Hand
$5.84¢2 919
1
#11056C
11056-7955
BRACKET,HARNESS
$8.47¢4 238
1
#11057
11057-4222
BRACKET,TOOL
$36.46¢18 231
1
#11057A
11057-4225
BRACKET,ECU
$5.74¢2 869
1
#11057B
11057-4227
BRACKET,FUSE
$9.98¢4 988
1
#11057C
11057-4228
BRACKET,SIDE COWL.,LH
$6.89¢3 444
1
#11057D
11057-4229
BRACKET,SIDE COWL.,RH
$4.09¢2 044
1
#11057E
11057-4230
BRACKET,REGULATOR UNDER
$6.18¢3 088
1
#11057F
11057-4231
BRACKET,HEAD LAMP ECU
$22.91¢11 456
1
#11057G
11057-4232
BRACKET
$5.74¢2 869
1
#11057H
11057-4246
BRACKET,HORN
$56.51¢28 256
1
#14093
14093-0476
COVER,RELAY
$38.81¢19 406
1
#23062
23062-1301
BRACKET-COMP,REGULATOR
$19.29¢9 644
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011C
26011-1956
WIRE-LEAD,BATTERY(-)
$65.26¢32 631
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26011B
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
1
#26011A
26011-1889
WIRE-LEAD,BATTERY(+)
$59.23¢29 613
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-3786
HARNESS,MAIN
$2184.43¢1 092 213
1
#27002B
27002-0047
RELAY-ASSY,STARTER
$44.74¢22 369
1
#27002A
27002-0045
RELAY-ASSY,HEAD LAMP
$50.91¢25 456
1
#27002
27002-0029
RELAY-ASSY,SIGNAL LAMP
$100.57¢50 287
1
#27003
27003-0161
HORN
$97.58¢48 788
1
#27034
27034-0012
RELAY
$44.74¢22 369
1
#39156B
39156-2781
PAD,HORN
$61.49¢30 744
1
#39156A
39156-2620
PAD,DIAG CONNECTOR
$5.16¢2 581
1
#39156
39156-0389
PAD,HEAT GUARD
$2.10¢1 050
1
#49018
49018-0005
DIODE
$53.66¢26 831
1
#49018A
49018-0007
DIODE
$56.89¢28 444
1
#53044
53044-0018
TRIM
$4.84¢2 419
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92071
92071-1187
GROMMET
$4.92¢2 463
1
#92072
92072-0782
BAND,202X3.6
$1.96¢981
1
#92072A
92072-1414
BAND
$3.70¢1 850
1
#92072B
92072-3768
BAND,L=148
$3.90¢1 950
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92154A
92154-0774
BOLT,SOCKET,6X10
$1.69¢844
1
#92154B
92154-1864
BOLT,FLANGED,6X14
$2.04¢1 019
1
#92154C
92154-4349
BOLT,FLANGED,6X12
$1.86¢931
1
#92161
92161-2290
DAMPER
$6.18¢3 088
1
#92171B
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.81¢1 906
1
#92171C
92171-1279
CLAMP
$10.46¢5 231
1
#92171D
92171-1283
CLAMP,CABLE
$12.30¢6 150
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.72¢862
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92172B
92172-0335
SCREW,TAPPING,5X10
$2.04¢1 019
1
#92173
92173-0082
CLAMP
$6.35¢3 175
1
#92173A
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173B
92173-0742
CLAMP
$9.11¢4 556
1
#92173C
92173-0791
CLAMP
$12.56¢6 281
1
#92173D
92173-0861
CLAMP
$2.75¢1 375
1
#92173E
92173-0982
CLAMP
$5.79¢2 894
1
#92173F
92173-1578
CLAMP
$9.25¢4 625
1
#92173G
92173-2194
CLAMP
$1.82¢913
1
#92173H
92173-2198
CLAMP
$1.55¢775
1
#92173I
92173-2199
CLAMP
$1.55¢775
1
#92173J
92173-2437
CLAMP
$2.26¢1 131
1
